| Model: | RR001 |
|---|---|
| Brand: | OEM |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Rubber roll , Press/ Suction roll , Spool/ Guide roll |
| Price: |
US $15000
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: |  | Last Online:30 Sep, 2017 |
Professional production of various types of rollers, according to user requirements, bore and cylindrical processing, material uniformity and good performance.
Stretcher Roller:
Composite rubber roll used for wet section, it has excellent wear resistance, longer guaranteed grinding cycle, high line pressure conditions and stable operation.
Artificial Stone Roller:
Artificial stone roller used in press section increase the dewatering effect, cast iron roller, rubber coated roll surface (stone-rubber)
Roll surface coating: Rubber;
Shell material: HT300; Shaft: ZG45&40Cr; Bulkhead: HT200;
Do dynamic balance
Guide Roll
Guide roll used in paper, textile, printing and dyeing, iron and steel industry, from the drive guide, material selection, high-quality, seamless, roller surface coated rubber, composite, Copper or Chrome.
Roll surface coating: Rubber & Electroplating & Tungsten carbide & Copper & Chrome
Shell material: 20# reelpipe; Shaft: 40Cr; Bulkhead: HT200;
Do dynamic balance: Dynamic bending measurement.
Spool Roll
Roll surface coating: Rubber & Polishing;
Shell material: 20# reelpipe; Shaft: 40Cr; Bulkhead: HT200;
Bearing housing: QT600-3; Coupling: 42CrMo forging;
Do dynamic balance: Dynamic bending measurement.

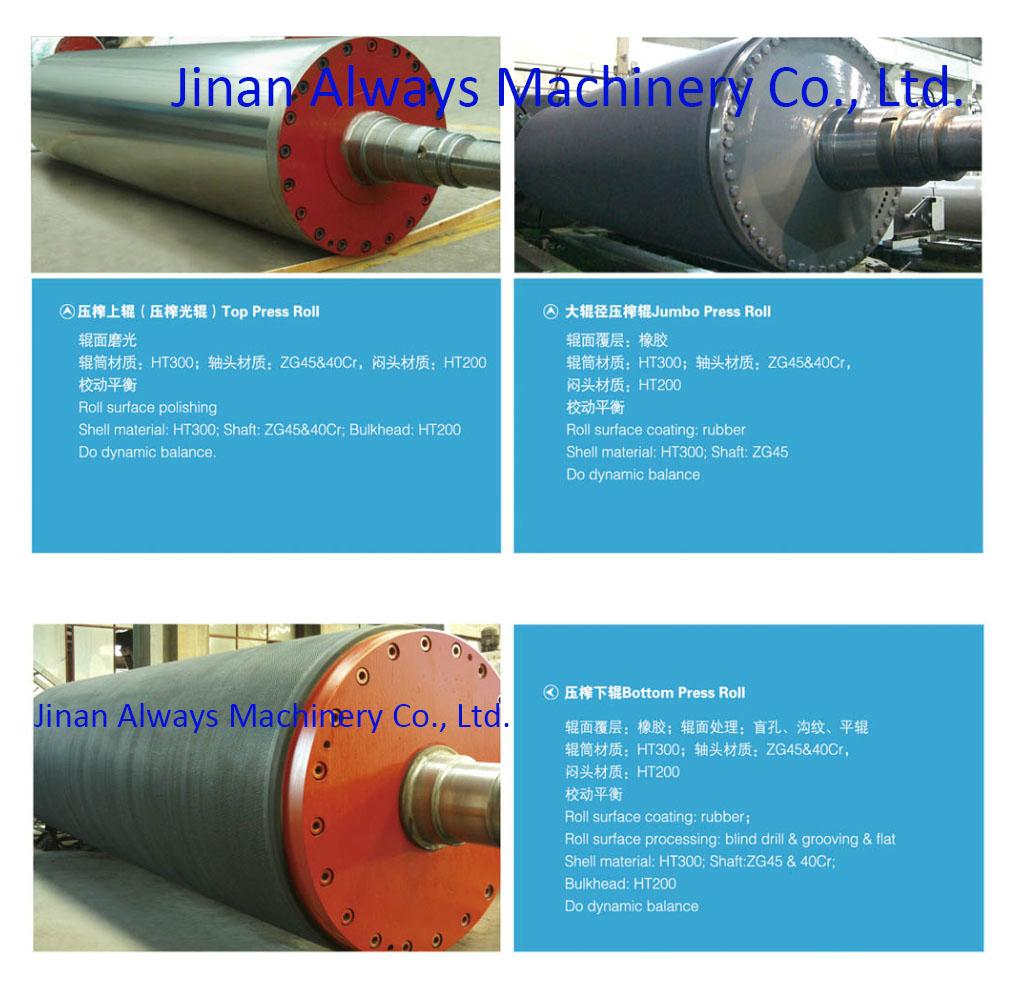

Press Roll:
Top press roll, bottom press roll & Jumbo press roll
It used in press section, Increase the dewatering effect.
Roll surface coating: Rubber & Polishing;
Shell material: 20# reelpipe; Shaft: 40Cr; Bulkhead: HT200;
Bow Roll
It is adapted to the high working speed paper machine, high speed rewinder and slitter cutter.
Rubber surface bow roll is wear resisting and long life. The material of the sides of the roll is special structure. It can keep the rubber tube not contractive.
Suction Roll
Suction Rolls, Suction breast rolls, Forming suction rolls, Suction couch rolls
Heat treatment:Normalized / Annealed / Quenched / tempered
Surface Treatment: painting,plating,polishing,black oxide,transparent anti-rust oil
Quality control: UT,MT,RT,PT,chemical composition test,mechanical property test,etc.
