Compact Grout Mixer Pump with Good Price for Dam Grouting

Model:GGP500/700/100
Brand:Gaodetec
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:grout mixer pump , compact grout mixer , grout pump
Price: US $9500 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Gaode Equipment Co., Ltd.

Biz MemberHe Nan - China
Live Chat:Last Online:02 Nov, 2023

Product Description

Compact Grout Mixer Pump  with Good Price for Dam Grouting

Compact grout mixer pump price feature:

1. Grouting pressure, displacement is stepless adjustable;

2. Simple structure, light weight, easy maintenance;

3. Double grouting cylinder, continuous output with small pulse;

4.  Less spare parts ensure low maintenance costs;

5. High speed vortex mixer ensures mix quickly and evenly;

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;

8. With CE, ISO certification.

compact grout mixer pump application:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasements, waterproofing, slope line grouting;

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;

Compact Grout Mixer Pump Technical Data:

Description

Data

Grout plant type

GGP500/700/100PI-E

Mixer Volume

500L

Mixer production(w/c ratio=1)

7m3/h

Circulation capacity

1100l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

7.5kw, 1450rpm

Agitator Volume

700L

Agitator Speed

36rpm

Agitator electric motor power

1.5kw, 1450rpm

Grout Pump Type

piston grout pump

Grout pump output and pressure

0-100L/min

0-5Mpa

Grout pump electric motor power

15kw, 1450rpm

Grout Mixer Pump Overall dimension

2700x175x1650mm

Grout Mixer Pump  Weight

1440kgs


Payment Terms:TT/LC
Packing:plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time:in stock. common type 7 working days once confirm
Standards Certificate:CE ISO

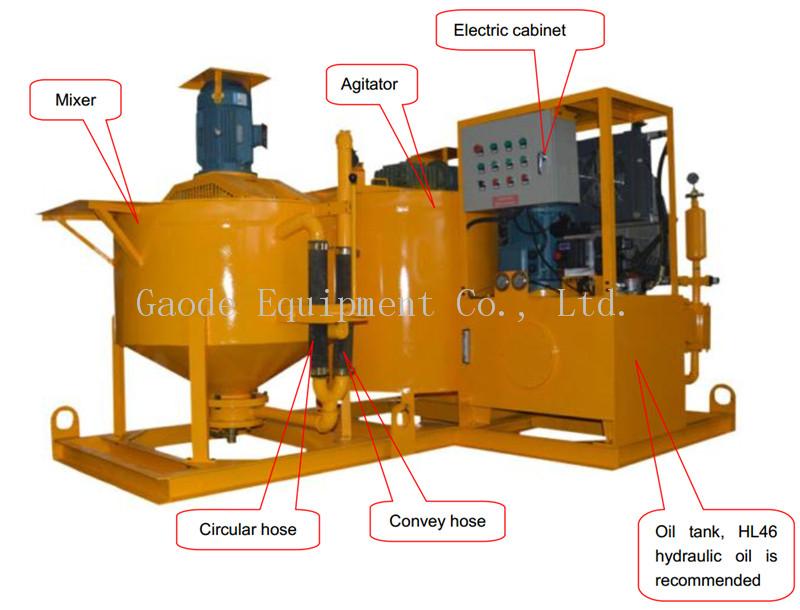

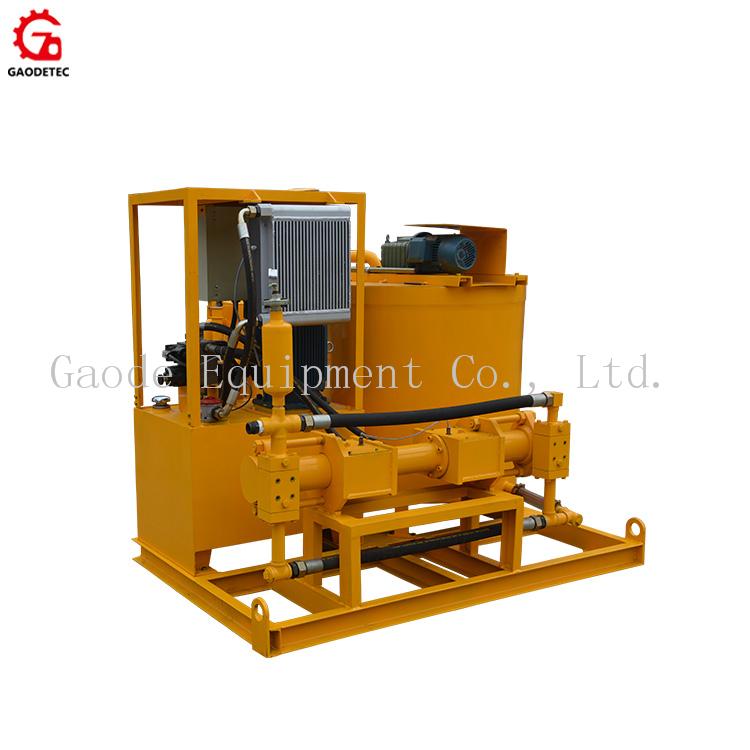

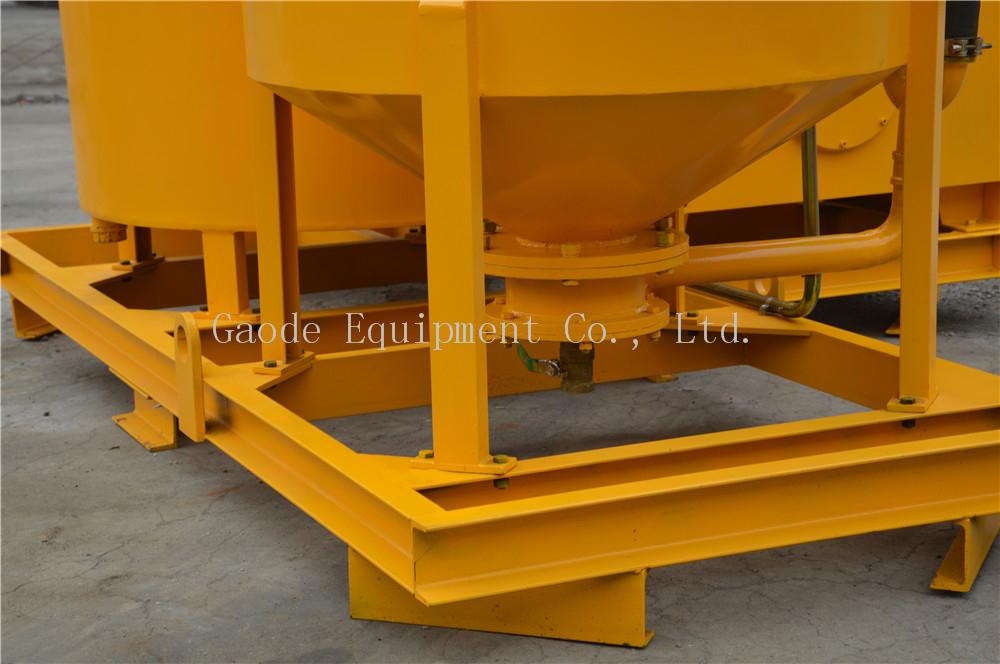

Product Image

grout mixer pump
Img 1
grout mixer pump
Img 2
grout mixer pump
Img 3
grout mixer pump
Img 4
grout mixer pump
Img 5
grout mixer pump
Img 6
grout mixer pump
Img 7
