KS-SD1000 Sanding machine wide belt sanding machine
Product Description
TECHNICAL PARAMETERS:
| Model number |
1000mm(KS-SD) |
| Working Width: |
1000 Double Head |
| Min.working Length: |
480mm |
| Working thickness: |
2.5-80mm |
| Belt speed: |
F:18m/s; R:18m/s |
| Feeding speed: |
6-30m/min |
| Total motor power: |
kw(22kw/15kw) |
| Belt dimension: |
1020mm*2000mm |
| Working air pressure: |
0.6Mpa |
| Volume of sucked air: |
8000m³/h |
| Overall dimensions: |
1850*1500*2000mm |
| Net weight: |
2200kg |
| Advantages |
Apply for compositive wood, solid wood floor, bamboo floor, plank stuff for furniture, windows and door, handiwork etc. |
| Adopt pressure shoe and pressure roller composite structure and with centi-gauge to do precis adjustment, which can resolve board deformation and the phenomenon of cutting the front and the rear of the short work piece completely. |
| Feeding table lifting adopts computer digit control, which possess easy operation and high accuracy rating. |
| The large roller covered rubber have a good stability. |
| An advanced designed hydraulic driving device completely settle belt slipping and stroking while running. |
| The work of sanding belt adopts pneumatic control without the impact of dust and power-cutting. |
| When the air pressure is lack of the belt is parted, the machine stops automatically to ensure safety. |
| To adopt belt cleaning device automatically cleans belt while working to prolong the belt life. |

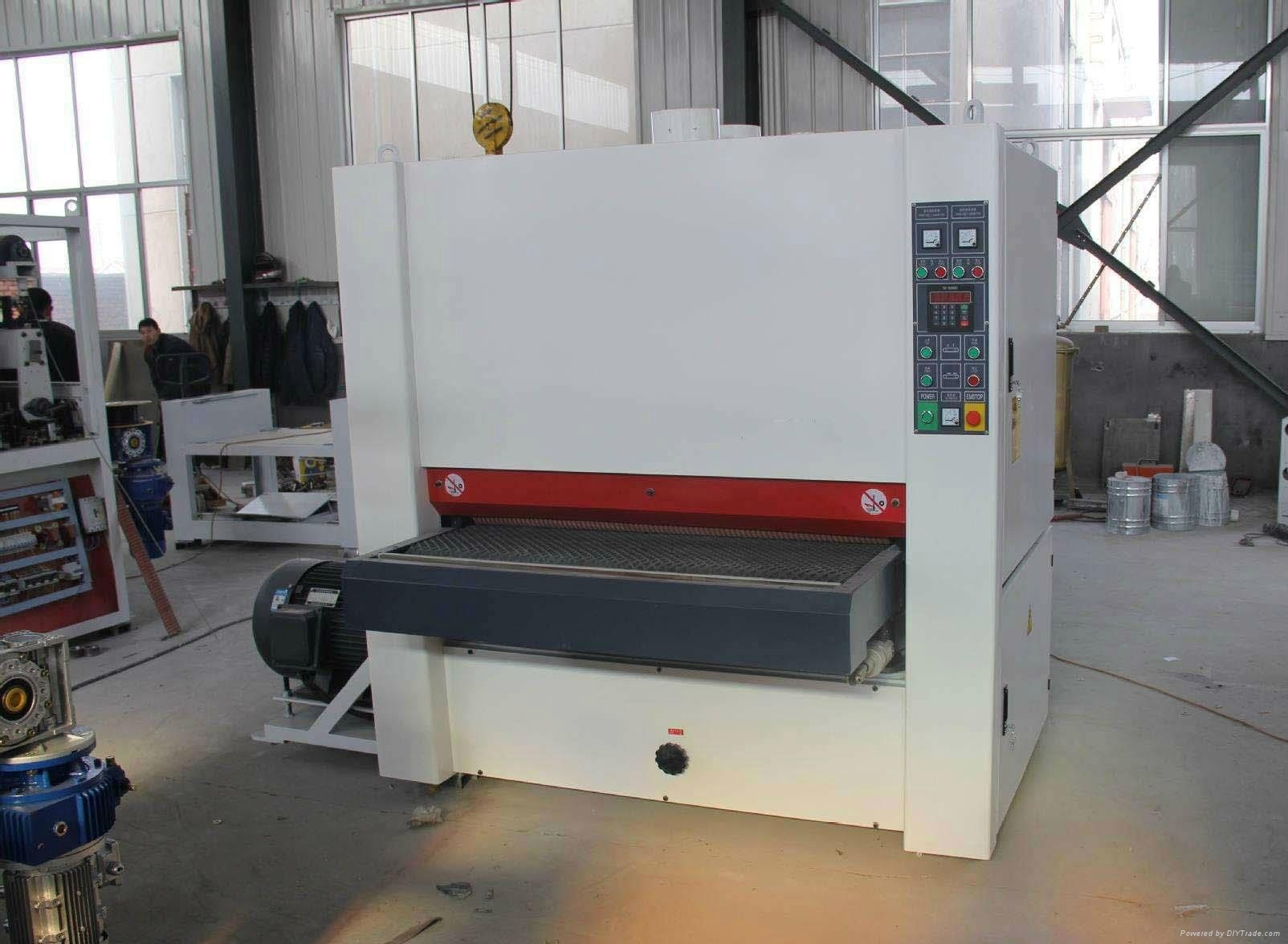

Product Image
Img 1
