HDMI to HDMI Audio(SPDIF+R/L)

Model:HDMIA600
Brand:OEM
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:HDMI TO HDMI , HDMI FACTOTY
Price: ¥70 / pc
Min. Order:50 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Yong xintong Electronics Co., Ltd

Free MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:11 Jan, 2020

Product Description

Features:
100% Brand new and high quaility!
The converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options
When source or sink is working, LED relative to is light.
No loss of quality.
Installs in minutes.
HDMI pass mode. The audio and video from the HDMI output, SPDIF and L/R no output.
2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.
5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio, L/R no output.


SPECIFICATIONS:
HDMI resolution: 24/50/60fs/4K2K/1080p/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 10.25Gbps
Input/Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: -15 to +55 °C
Operating Humidity range: 5 to 90%RH (No Condensation)
Input Resolution: up to 4K2K(30Hz)


Product Image

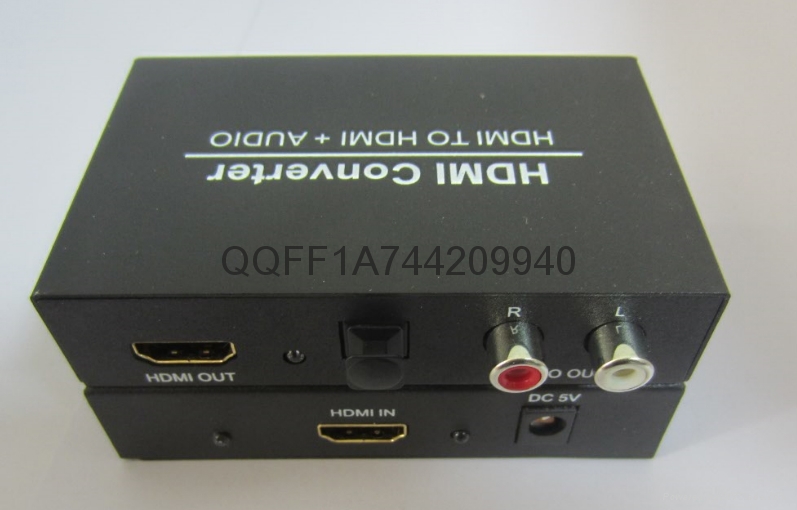

HDMI to HDMI Audio(SPDIF+R/L) 1
Img 1
HDMI to HDMI Audio(SPDIF+R/L) 2
Img 2
HDMI to HDMI Audio(SPDIF+R/L) 3
Img 3
HDMI to HDMI Audio(SPDIF+R/L) 4
Img 4
HDMI to HDMI Audio(SPDIF+R/L) 5
Img 5
