| Model: | R1325SF |
|---|---|
| Brand: | RapidCNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | Styrofoam cnc router , cnc foam cutting , cnc foam meltting |
| Price: |
US $4555
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:06 Mar, 2017 |

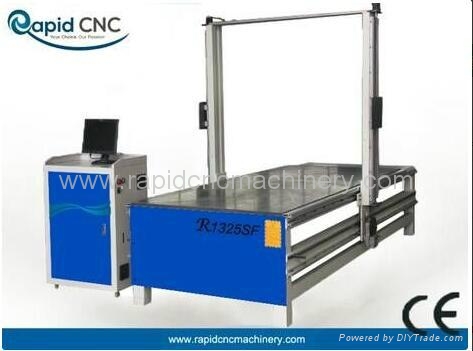

CNC Wire foam cutting machine R1325SF
Features:
1. NC studio controller, easy to learn and operation.
2. Profiled steel welded lathe bed,enhanced gantry, high rigidity and high accuracy.
3. Hard PVC table ,make your work less noise and environment friendly .
4. Software compatibility and can be compatible type3 / Artcam /Castmate /Wentai and so no many kinds of CAD/CAM design software.
5. By using high-speed drive stepping motor and drive axis adopt double motor drive, make high-speed operation of the 25 m/point above empty line speed, with strong cutting spindle can make the sculpture speed more improved.
Applications:
Mainly used for wood furniture industry like processing wood door,cabinet door, art and craft door, MDF cutting, wood board cutting and processing other nonmetal materials, etc.
Technical parameters:
|
No |
Description |
Parameter |
|
1 |
effective working area: |
1300x2500x1220 mm |
|
2 |
Table Size: |
1700X3050mm |
|
3 |
Cutting Accuracy: |
±1mm |
|
4 |
X,Y,Z repositioning Accuracy: |
±0.04mm |
|
5 |
Table Surface: |
Finest PVC |
|
6 |
Frame: |
Heavy steel welded |
|
7 |
X Structure: |
Taiwan TBI square orbits |
|
8 |
Y Structure: |
Taiwan TBI square orbits |
|
9 |
Max. Power Consumption: |
<1500W |
|
10 |
Max. Rapid Travel Rate: |
25000mm/min |
|
11 |
Max. Working Speed: |
15000mm/min |
|
12 |
Melting wires: |
copper |
|
13 |
Cutting speed: |
0-6000m/min |
|
14 |
Drive Motors: |
Stepper system |
|
15 |
Working Voltage: |
AC220V/50Hz, 3PH |
|
16 |
Command Language: |
G code |
|
17 |
Operating System: |
Industrial PC |
|
18 |
Computer Interface: |
USB |
|
19 |
Flash Memory: |
128M(U Disk) |
|
21 |
Software Compatibility: |
AutoCAD |
Main accessories included:
|
No |
Item |
Qty |
|
1 |
Data transfer cable |
1pcs |
|
2 |
Monitor |
1pcs |
|
3 |
USB Cable |
1pcs |
|
4 |
U flash disk |
1pcs |
|
5 |
guarantee card |
1pcs |
|
6 |
eligible certificate |
1pcs |
|
7 |
user manual |
1pcs |
|
8 |
single mouth spanner |
2pcs |
|
9 |
hexangular spanner |
3pcs |
|
10 |
tool case |
1pcs |
|
11 |
Emergency Button |
1pcs |
|
12 |
Start Button |
1pcs |
|
13 |
Limit switch |
2pcs |
Machine delivery time:
14 working days.
Payment terms:
1. 30% deposit T/T in advance, 70% before delivery from factory.
2. L/C at sight.
3. West union.
4. PayPal etc.
Guarantee & After Sales Service
1). Whole machine is guaranteed for 12 months..
2). Technical support available 24 hours no matter through phone ,email or whatsapp
Samples:
| Payment Terms: | T/T,L/C ,Western Union |
|---|---|
