Multifunction combination Wrought Iron machine,SDZC
Product Description
| Multifunction combination Wrought Iron machine |
|
| Raw material: iron, steel, stainless steel, copper, alumni alloy. Including square steel, |
|
| flat steel, round steel, square tubing, rectangular tubing.(low-carbon steel: hardness < Q225) |
|
| The main engine plays an foundational role in the whole equipment set, which can be |
|
| cooperatively applied with handrail embossing unit, end forging unit, arc bending unit, |
|
| scroll bending unit and twisting unit. The main engine is controlled by computers, which |
|
| realizes processing accuracy through frequency conversion control, rotation of coder and |
|
| braking of the electromotor, thus ensuring all produced workpieces to be completely |
|
| same to each other in specifications. All units of various functions in the main engine are |
|
| easy to assemble and disassemble, as well as flexible to drive and convenient to adjust |
|
| Model |
SDZC |
| 1.Model GZ Embossing Unit |
|
| Specifications︰ |
|
| tubing |
<=50mmx50mm |
| square steel |
<= 30mmx30mm |
| flat steel |
<=50mmx10mm |
| working efficiency |
1200m/h |
| 2. Model WQ Bending Unit |
|
| Specifications︰ |
|
| square steel |
<=12mmx12mm |
| flat steel |
<= 40mmx8mm |
| round steel |
<=dia.12mm |
| processing time of single-piece |
T=3-5S |
| 3. Model NH Twisting Unit |
|
| Specifications︰ |
|
| square steel |
<= 25mmx25mm |
| band iron |
<= 40mmx8mm |
| max. twist-length |
1000mm |
| processing time of single-piece |
T=3-5S |
| 4. Model DT End Forging Unit |
|
| Specifications︰ |
|
| square steel |
<= 18mmx18mm |
| flat steel |
<= 50mmx8mm |
| round steel |
<=dia.18mm |
| processing time of single-piece |
T=3S |
| 5. Model GH Arc Bending Unit |
|
| Specifications︰ |
|
| square tubing |
<= 30mm x30mm |

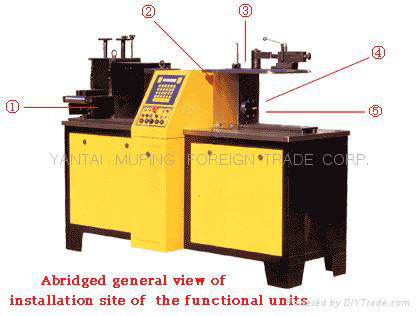

Product Image
Img 1
