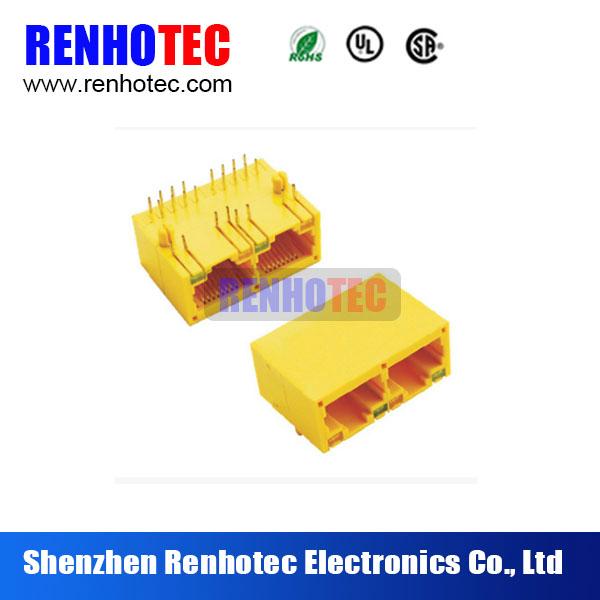

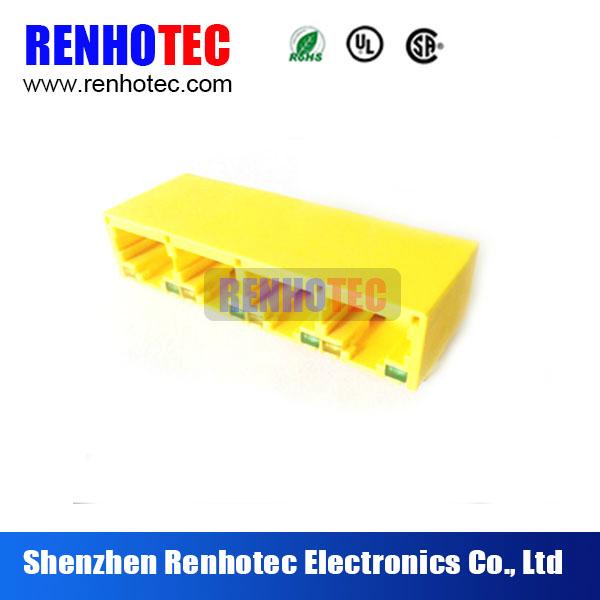

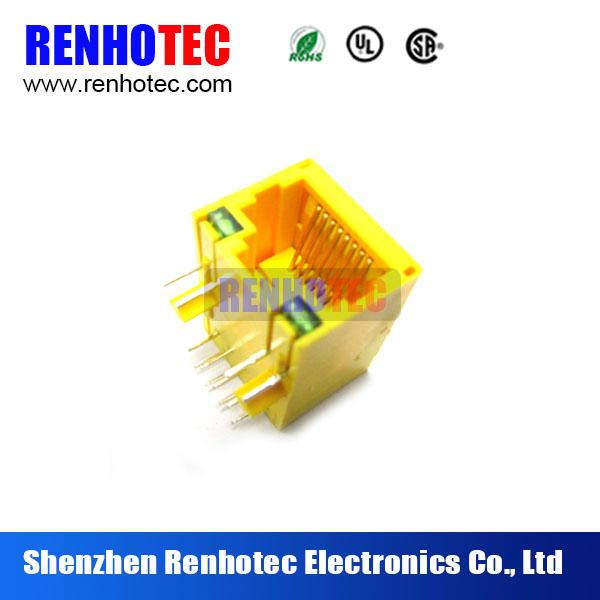

| Model: | RHT-671 |
|---|---|
| Brand: | Renhotec |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | rj45 female yellow |
| Price: |
US $0.3
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: |  | Last Online:06 Feb, 2017 |
Renhotec offers a full line of RJ11, RG45 connectors in a multitude of options,which is engineered from the best quality raw material and are acknowledged for their sturdy construction and durable service life. RJ45 Series connectors has a wide range of applications, PC, network, as well as hot and so on.
Technical Specifications:
|
Electrical |
|
|
1.Current Rating: |
1.25amps |
|
2. Voltage Rating: |
125vac |
|
3. Insulation Resistance: |
500Ωmin |
|
4. Contact Resistance |
30Ωmax |
|
5. Withstanding Voltage |
AC 1000V RMS 50Hz or 60Hz 1 min |
|
Mechanical: |
|
|
1. Insertion Force |
2.2KG. F max |
|
2. Retention Strength |
7.7KG. F min between jack and plug |
|
3. Durability |
600 mating cycles min |
|
Material:. |
|
|
1. Housing |
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) |
|
2. Contact Wire |
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold Plating over nickel. |
|
3. Shield |
0.20~0.25mm thickness brass with tin plated |
|
4. Gold Plating |
<3u inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch |
|
Environmental |
|
|
Working Temperature: |
-40°C to 70°C |
