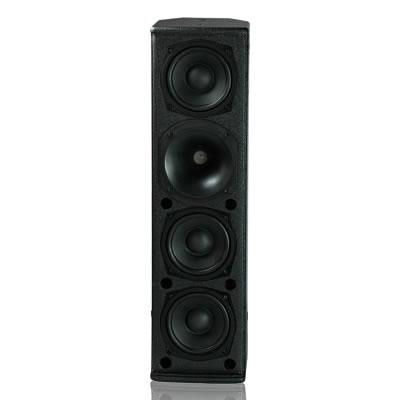

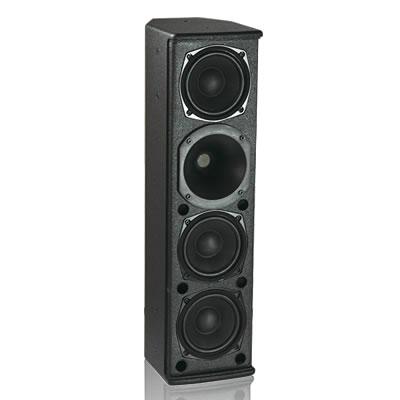

JS-04 FullRange Column LoudSpeaker Systems

Description:
JS-04 of 5.S brand is a two-way multifunction full range loudspeaker system, The design of JS-04 is symmetrical trapezoidal front-oriented ,equipped with oval ABS material horn with a range of 90°*60°. It is embedded in three 5” ultra-low distortion unit and 1” horn compression driver unit.
As a two-way system, JS-04 can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output.JS-04 of 5.S brand can provide to hotels, halls, airports, conferences profession sound solutions.

Applications：
Religion Place,Auditorium
Meeting Room,Multi-function place
Entertaiment places,canteen,bar
Trafic place,stadium
Library,museum
Shopping center,school

Specifications:
Type:    Two-way FullRange Multi Using Sound Column Speaker
Frequency Response:    62Hz-20kHz
Rated Power:    120W(AES)
Peak Power:    480W
Sensitivity:    94dB
Max. System Output    123dB（Peak）
Nominal Directivity:    90° X 60°
Crossover Frequency：    1.8kHz(Built In Crossover)
Impedance：    4Ω
Connectors：    2*NeutrikTM 1+,1-
Rigging：    8*M8

Product Unit
LF:    5 " cone which is imported from Italy;1.2" (30mm) voice coil. Rated power: 30W (AES)
HF：    1" horn which is using Italy imported membrane group drive unit;1.34" (34mm) voice coil. Rated power: 30W (AES)

Enclosure
Colour：    Polyurea Paint /Water-based paint points (All RAL Colors)
Material：    12mm Russian Birch Plywood
Dimensions(W*H*D)：    170mm*634mm*224mm
Weight:    10.35Kg
