| Model: | EXF9600 |
|---|---|
| Brand: | Cfan |
| Origin: | Made In Hong Kong S.A.R |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | how to test gold , XRF gold analyzer , XRF analyzer |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:19 Dec, 2016 |

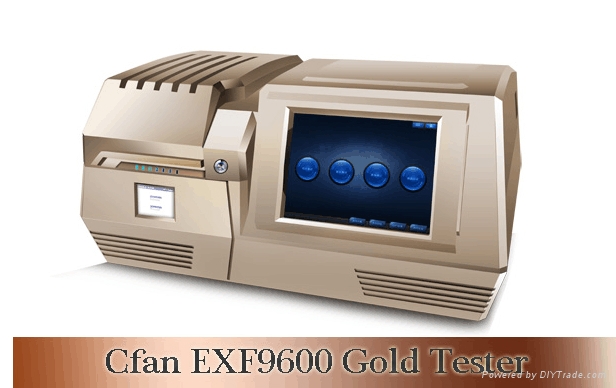

Introduction
EXF9600 XRF Analyzer，Product uniqueness:
XRF Version 3.0 menu mode is adopted with parameter setting, data inspection and calculation.Both of English and Chinese version are available
Testing time is fixed by the program to improve the capability and efficiency, without assistance
The self-protection technology is able to enhance the consumption life of the X-ray tube. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.

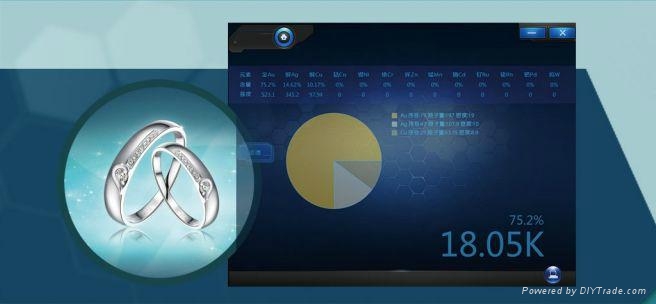

Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.
EXF9600 XRF Analyzer，Applications:
metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
EXF9600 XRF Analyzer，Description:
EXF9600 can provide customers higher accuracy and precision.
EXF 9600 with Si-pin detector delivers wide elemental coverage with an easy-to-learn software. Non-destructively analyze from sodium (Na) through uranium (U) in powders, liquids and solids.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.
Malfunction Analyze.
Low cost with unmatched performance-to-price ratio.
EXF9600 XRF Analyzer，Applications:
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
EXF9600 XRF AnalyzerSpecifications:
|
Working Principle: |
Energy Dispersive X-ray Fluorescence |
|
Size(mm): |
670*400*330 |
|
Detection limit: |
100ppm Best substance effect |
|
Precision: |
±10ppm~0.1% |
|
Expanded Uncertainty: |
≤0.19% |
|
Operating Environment: |
Temperature -11~46℃ Humidity ≤70% |
|
High Voltage: |
0~50KV/0~1MA |
|
Detector: |
Si-Pin145Kev±5 |
|
Testable Elements: |
Any 20 Elements from whole elements (Na~U) |
|
Main Structure: |
High-strength metal frame and industry plastic shell |
|
N/G Weight(KG): |
31 / 43 |
EXF9600 XRF Analyzer，Competitive Advantage:
1, Active radiation protection
2, High Voltage protection
3, X-ray Tube overheating protection
4, Extension wire and the auxiliary bracket
5, Buck-boost pre-boot
6,Internal Printer
EXF9600 XRF Analyzer，Product Description
1. Analysis Elements: Au, Ag, Cu, Zn, Ni, Pt, Pd
2. Analysis Range: 1%~99.99%
3. Warranty: 1year
4. Lifelong free up grades of software
5. Test Time: Confirm the elements in 1~3 seconds, operator could set the time for testing the elements indensity. )
6. Test Precision: +/-0.1% The Precision could keep 0.1% after several repeated test
7. X-Ray Source: Mo Material X-ray light tube( Wind Cool, No radiation)
8. Max. Power: 120W
9. Spectrometer Size(mm): L670 mm*W400mm*H330 mm
10. N/G Weight: 33/45 Kg
Easy to operate, remote installation and training
EXF9600 XRF Analyzer，Addvantage:
1.Non-destructive and Precision
2.Fast(testing time is about 30s-200s)
3.Small samples could be tested
4.Could read not only the gold percentage but also the other metels in the sample
5.Could print out the testing report,also the testing data
6.Could save all data into the main server
7.hand-touching screen
