Silicone Rubber Electrical Heating Film / Pad / Sheet

Silicone Heatering Film is a kind of electricity heating film, the heating element is made of nickel chrome wire, nickel chrome foil and metal wire as the inner electric heating element, the product is heat-insulated with high-temperature and high-pressure on both sides, as its soft property can closely attach to the surface of a variety of products. This kind of product breaks through the rigid shortcomings of traditional heater from the technical, can be more easily close to the heated object. The shape and power be customized according to customer’s requirement.

 Feature：

1. Heat fast, thermal conductivity is 1w/m.k, because its small heat capacity, so its heat source start/off quickly;
2. Waterproof , acid resistance , alkali resistance, high electrical insulation, high thermal efficiency;
3. Long lifetime, high mechanical strength, mechanical pressure 200kg/cm²;
4. Insulation, flame retardant, small volume, easy to use;
5. Can to control the temperature by controller;
6. Temperature range:-60 ℃ ~ 250 ℃ .

Application :

1. Heat develop of imaging equipment
2. Anti-condensation in motor and cabinet
3. Outdoor electronic equipment
4. Food plates, food heating furnace
5. Breathing equipment, engine of plane
6. Protect enclosure in cold and humid environment
7. Adhibit controller and cabinet
8. Heating industrial oven and heat machining equipment
9. Heating medical instrument

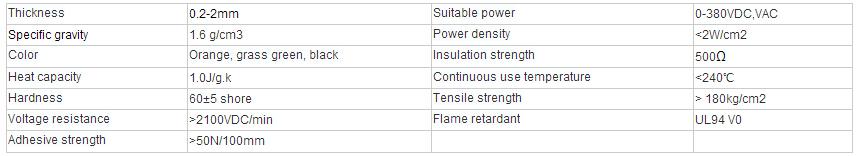

Specification:

Material : silicone strengthened by glass fiber.

Resistance precision : +-10% or +-0.5Ω( taking max )

Medium strength : 1000VRMS

Minimum curve semi-diameter : 0.125”(3.2mm)

Mechanical stress : 200kg/cm2

Customer made can choose the following :

1.Power density : 0.1w/cm2-3w/cm2

2.Can attach some accessory for installation

3.can attach temperature controller , temperature sensor , wire and etc.
