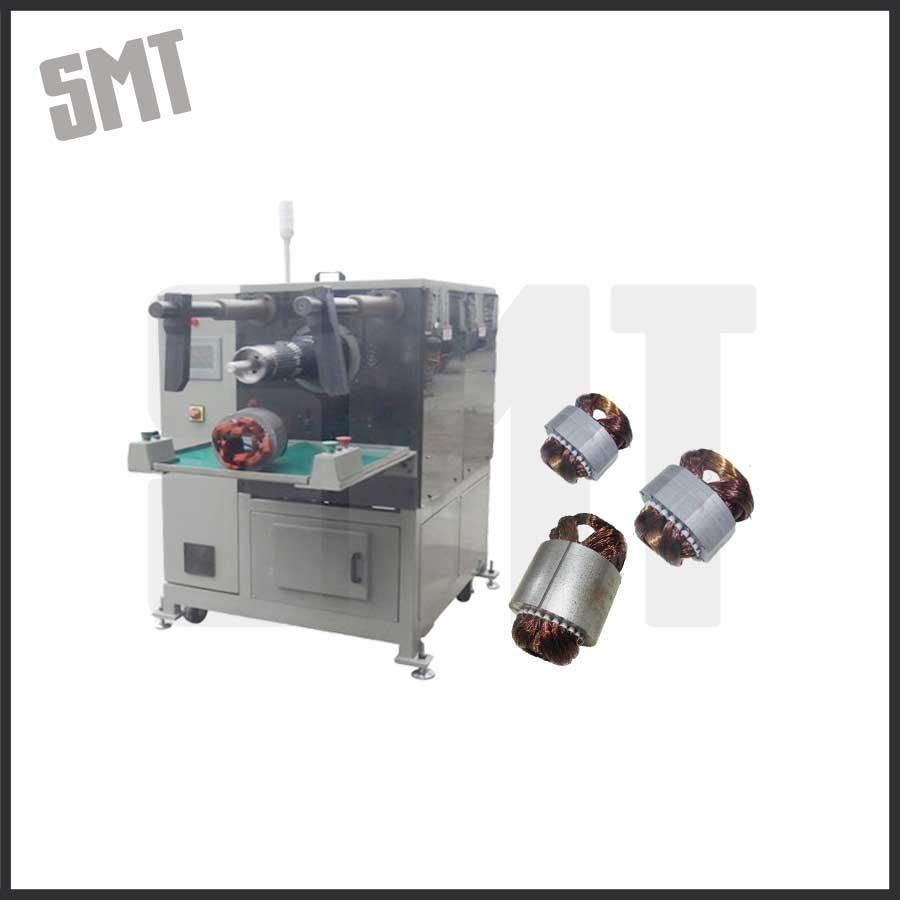

Model: | SMT-QX08 |
---|---|
Brand: | SMT |
Origin: | Made In China |
Category: | Industrial Supplies / Other Industrial Supplies |
Label: | AC motor coil insert , insert statorwinding , motor coil insertion |
Price: |
-
|
Min. Order: | 1 pc |
Live Chat: | Last Online:23 Sep, 2016 |
Main Features
1. Tooling changeover time is less than 10 minutes;
2. It can insert the coil and wedge into stator slot automatically at a time;
3. Winding and wedge inserting is driven by servo motors;
4. Wedge feeding is driven by stepper motor;
5. Different parameters could be set in human-machine interface;
6. The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;
7. Different sizes stator production can be done by changing tooling;
8. Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.
Technical parameters
Model |
SMT-QX08 |
Stator I.D |
Φ60~Φ150mm |
Stator O.D |
≤Φ210mm |
Stack height |
≤190mm |
Tooling travel |
≤90mm |
Compatible wire |
Cu / AL |
Slot number range |
24~48 slot |
Power supply |
380V/50/60Hz 5Kw |
Weight |
≈1050Kg |
Dimension |
(L)2380×(W)1180×(H)1700mm |
