| Model: | 2M2125A |
|---|---|
| Brand: | Guanlu |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | honing machine , Cylinder repaire , Cylinder honing |
| Price: |
US $35000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:30 Apr, 2021 |

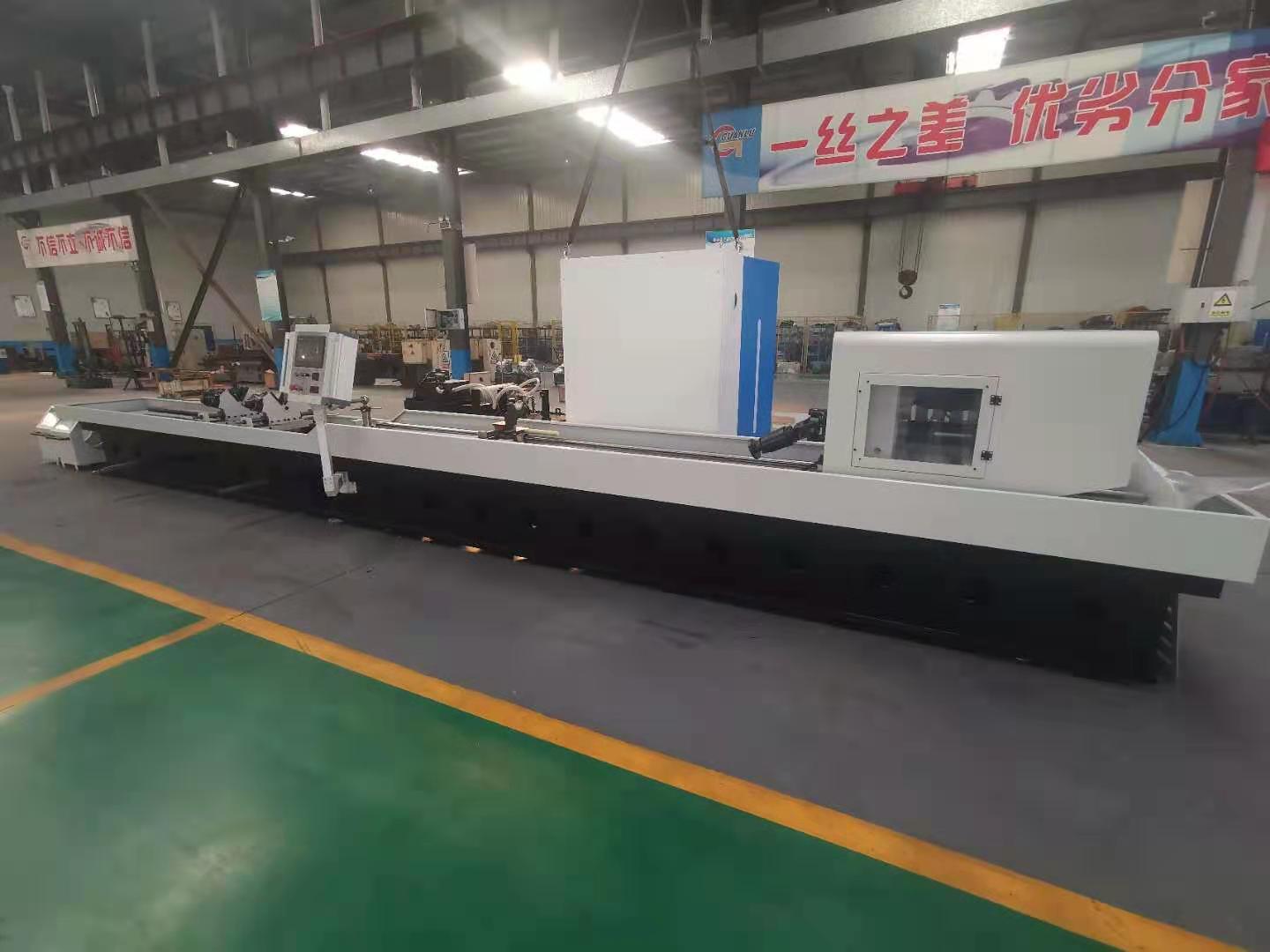

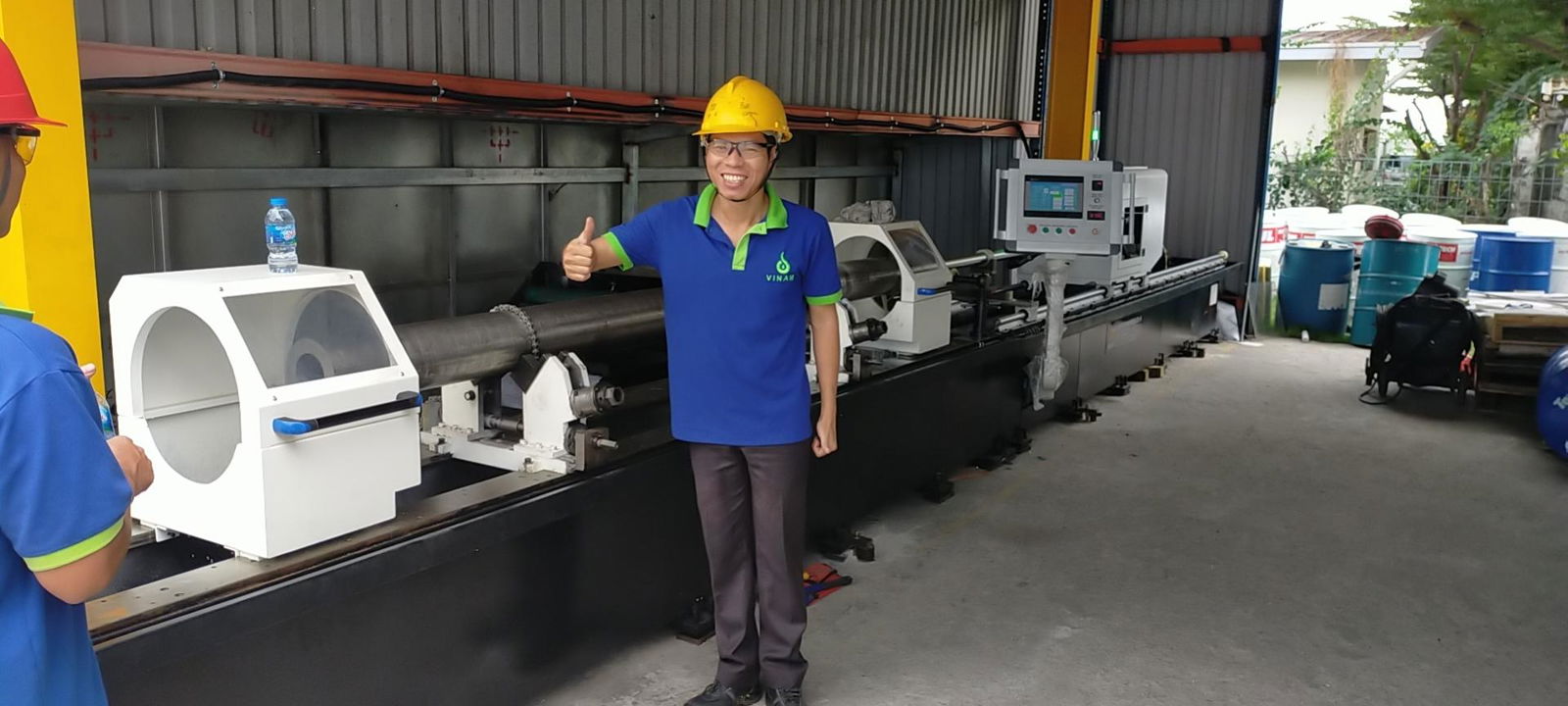

This machine is specially for all kinds of cylinder shaped workpieces, after worked by this machine, the accuracy up to IT7, surface roughness up to Ra0.2-Ra0.4μm . This machine can be part honing also, so as to repair the parts .
This machine equips touching screen and PLC, AC servo motors, honing box stepless speed, steady and easy to operate .
Specifications:
Honing diameter range: 40-250mm
Honing max. length: 12000mm
Center height: 350mm
Clamping workpiece diameter range: 60-350mm
Honing box spindle speed range: 25-250r/min (2steps)
Honing box move back and forth speed range: 3-20m/min
Honing box motor power: 7.5kw
Honing head expand hydraulix system oil pump flow :12.5L/min
Honing head expand hydraulic system oil pump max. working pressure: 4MPa
Coolant pump flow: 100L/min
Coolant pump volume: 950L
Honing head expand hydraulic system oil pump motor power: 1.1kw
Coolant pump motor power: 1.5kw
Back and forth motor power: 5.5kw
