| Model: | DIN6797J |
|---|---|
| Brand: | Rbo |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Nuts & Bolts |
| Label: | washers , lock washer , spring lock washer |
| Price: |
US $0.06
/ pcs
|
| Min. Order: | 1000 pcs |
| Live Chat: |  | Last Online:20 Jan, 2020 |
Model NO.: DIN6798J
Material: Stainless Steel
Shipping Method: by Sea ,by Air
Payment Term: T/T,Westunion ,L/C
Certificates: ISO 9001
Trademark: Rbo
Specification: M6- M16
Type: Lock Washer
Spring Washer Type: Standard
MOQ: 1000 PCS
Delivery Time: 3-20 Working Days
OEM&ODM: Supported
LoadingPort: Shanghai Port
Production Ability: 5000000 PCS / Month
Transport Package: 25*16*25cm Carton Box, Then Polywood Box Packed
Origin: China
 |
 |
 |
DIN6798J Dimension

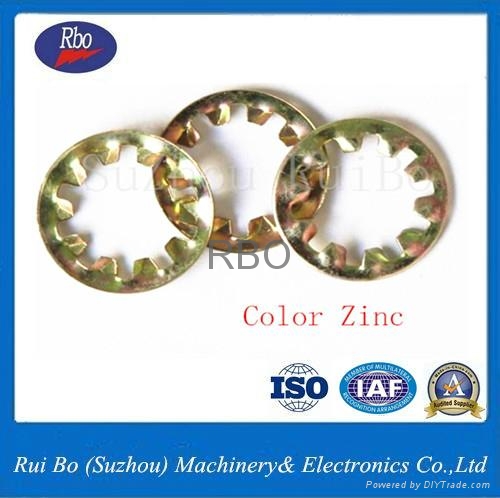

| DIN6798J Internal Serrated Lock Washer | |||||
| Dimension | d
H13 |
dc
h14 |
H
min |
Height |
Teeth
min |
| 1.6 | 1.7 | 3.6 | 3h
|
0.3 | 7 |
| 1.8 | 2 | 4 | 0.3 | 7 | |
| 2 | 2.2 | 4.5 | 0.3 | 7 | |
| 2.2 | 2.4 | 5 | 0.4 | 7 | |
| 2.5 | 2.7 | 5.5 | 0.4 | 7 | |
| 3 | 3.2 | 6 | 0.4 | 7 | |
| 3.5 | 3.7 | 7 | 0.5 | 8 | |
| 4 | 4.3 | 8 | 0.5 | 8 | |
| 5 | 5.3 | 10 | 0.6 | 8 | |
| 6 | 6.4 | 11 | 0.7 | 9 | |
| 7 | 7.4 | 12.5 | 0.8 | 10 | |
| 8 | 8.4 | 15 | 0.8 | 10 | |
| 10 | 10.5 | 18 | 0.9 | 12 | |
| 12 | 13 | 20.5 | 1 | 12 | |
| 14 | 15 | 24 | 1 | 14 | |
| 16 | 17 | 26 | 1.2 | 14 | |
| 18 | 19 | 30 | 1.4 | 14 | |
| 20 | 21 | 33 | 1.4 | 16 | |
| 22 | 23 | 36 | 1.5 | 16 | |
| 24 | 25 | 38 | 1.5 | 16 | |
| 27 | 28 | 44 | 1.6 | 18 | |
| 30 | 31 | 48 | 1.6 | 18 | |
DIN6798J Material
| Materials | Our Advice For You Below : |
| Spring Steel ： 65Mn | ≤200°C，Under Normal Condition |
| Stainless Steel ：SS304、SS316 | ≤300°C，Under Corrosive Condition |
| Customized As Per Clients' Requirements |
DIN6798J Surface Treatment
Plated Zinc ,Darcomet , Geomet , Black Finishing
