| Model: | SKD-3015ATC |
|---|---|
| Brand: | SKD |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | Countertop Machine , Stone CNC Carving , CNC Machining Center |
| Price: |
US $56000
/ Set
|
| Min. Order: | 1 Set |
| Live Chat: |  | Last Online:20 Dec, 2019 |

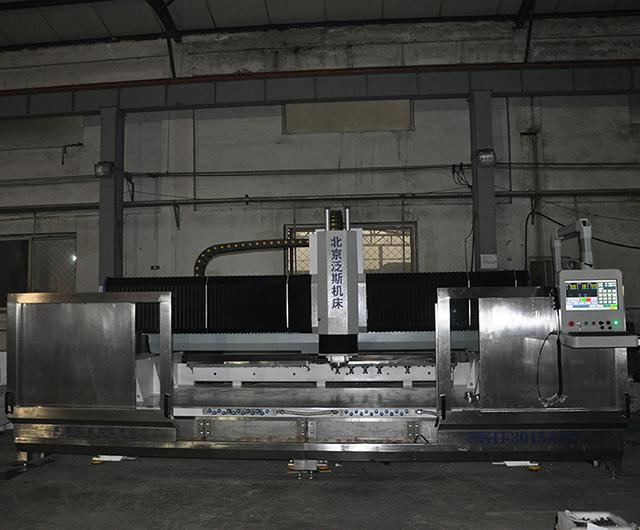

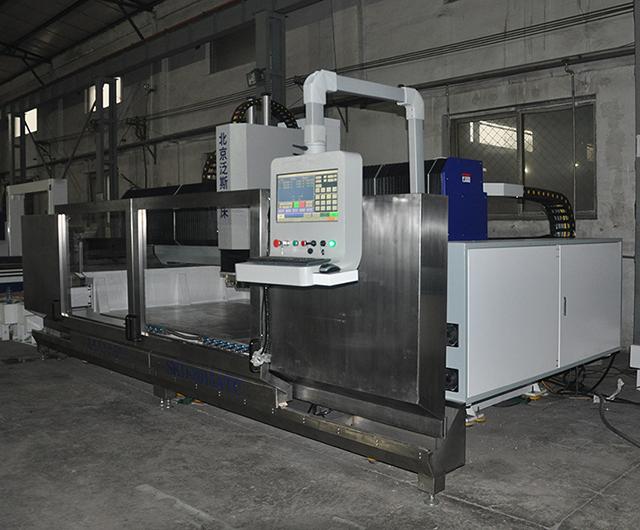

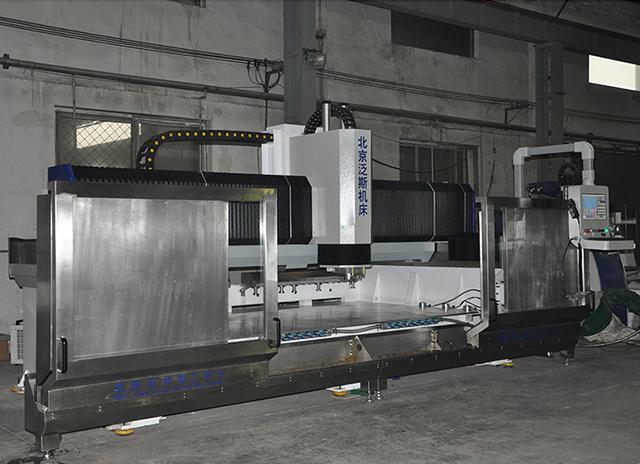

CNC stone cutting and polishing machine for quartz, granite, marble
Model: SKD-3015ATC Italy 11.0KW water cooling ATC spindle
Product Description
ATC stone CNC engraving machine for grave renovation
Headstone carving machine
CNC granite carving machine
Application&Samples
Application
SKD-3015ATC is the stonecarving brand of FANCH GROUP. It is the ATC type cnc stone router machining center for profiling special-shaped edges,high-end table,washbasin,cabinet and stone carving works,with high strength,high precision and high efficiency.
Following industry are available
1. Countertop Manufacturing
2. Detailed Decorative Designs
3. Monuments & Memorials
4. Kitchens & Baths
5. Tiles
6. Modular Panels
7. Signs
Specification
|
Working area |
3000*1500mm |
|
Processing accuracy |
0.05m |
|
Repeat position accuracy |
0.05mm |
|
Tool magazine |
18 pieces |
|
Spindle speed |
2000-12000rpm/min |
|
Engraving commend |
Code G.uoo.mmg.plt |
|
Software operation environment |
Windows98/2000/XP |
|
Working voltage |
AC380V/50HZ |
|
Spindle power |
11.0KW water-cooling ATC |
|
Control system |
Taiwan SYNTEC |
|
Tool diameter |
Φ3.175 Φ4 Φ6 Φ12.7 |
|
Working mode |
Japan YASKAWA servo |
|
Dimension |
5400*3600*2500mm |
|
Weight |
5600KGS |
Features
|
Lathe Bed: Industrial design plate welding, 600 degree high temperature quenching processing Machine Parts: Industrial aluminum casting structure Working Table: Full aluminum Drive Motor/System: Japan YASKAWA large power bus servo Spindle: Italy EMA 11.0KW air-cooling ATC spindle, 2000-12000rpm Tool Magazine: 18 straight line tools, ISO 40 tool holder Inverter: Taiwan Delta Control System: Taiwan SYNTEC EM20 Linear Guide Rail: Taiwan HIWIN/PMI 30mm Gear and Rack: Taiwan high precision Ball Screw: Taiwan TBI Electrical Components: French Schneider, Taiwan AirTAC Double station and multiple suckers processing design Standard equipped with three axis safety protection device and centralized lubrication system for transmission parts |
Spare Parts
 |
Spindle Name: Main Spindle Brand: HSD Original: Italy Original Italy imported spindle 6.0KW, it promise more accurate, higher working efficiency. We can increase and reduce spindle numbers according to customer's need. |
 |
Motor Name: Spindle motor
|
 |
Servo Name: motor servo
|
 |
Helical rack Name: Helical rack
|
 |
Control system Name: SYNTEC Control system
NC studio system is optional. |
 |
Inverter Name: Delta inverter Brand: Delta Original: Taiwan Top brand inverter ensure the stability of working process. SUNFAR inverter is optional. |
 |
Linear rail Name: Linear rail Brand: HIWIN/PMI Original: Taiwan Automatic lubrication rail, free maintenance. |
 |
Reducer Name: Planetary reducer Brand: Neugart Original: Germany Good quality reducer can help to improve the repeat position accuracy. Japanese Shimpo and Taiwan APEX are optional. |
 |
Electric components Name: Electric components Brand: Schneider Original: French Taiwan AirTAC is optional. |
Factory
Woodworking Machine
Located in Tongzhou district, Beijing, Fanch woodworking factory was established in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.
 |
 |
 |
|
 |
Laser cutting machine factory
Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and
domestic sales office can be found here.
 |
|
 |
 |
Our Services
|
|
||
|
Pre-sale service 1. Free engineer consultant and feedback in 24 hours. 2. Sample specimens and testing video of specified machine are available. 3. Factory visit arrangement.
|
After-sale service 1. Prompt reply in 24 hours. 2. Engineer on-site installation. 3. Call-in Remote diagnosis. 4. Engineer oversea service. 5. Operation training service.
|
Customized service 1. OEM/ODM service are available. 2. Free engineer consultant 3. Engineer on-site installation and deb ing. 4. Operation training service
|
