0879-2C2R-54 | 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics with EMI

Model:0879-2C2R-54
Brand:LINK-PP
Origin:Made In China
Category:Computers & AV Digital / Network Hardware & Parts
Label:0879-2C2R-54 , LPJG27037A4NL , 2X2 RJ45 Connector
Price: -
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:30 May, 2020

Product Description

0879-2C2R-54 | 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics

0879-2C2R-54 | 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics
Belfuse Part Number 0879-2C2R-DA
LINK-PP Part Number LPJG27037A4NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN&YELLOW/GREEN&YELLOW
Latch TAB UP/TAB DOWN
Number of Ports 2X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

0879-2C2R-DA

5 Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

0879-2C2R-54 | 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics

LINK-PP Part Number LPJG27037A4NL

Payment Terms:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Packing:20 pcs in 1 tray,22 trays in 1 carton, which is 37*30*30 cm, 10KGS (440 pcs) of each carton
Lead Time:About 3~5 Days After Received Payment
SKU:1000
Standards Certificate:ISO 9001,ISO 14001,UL,SGS,REACH168

Product Image

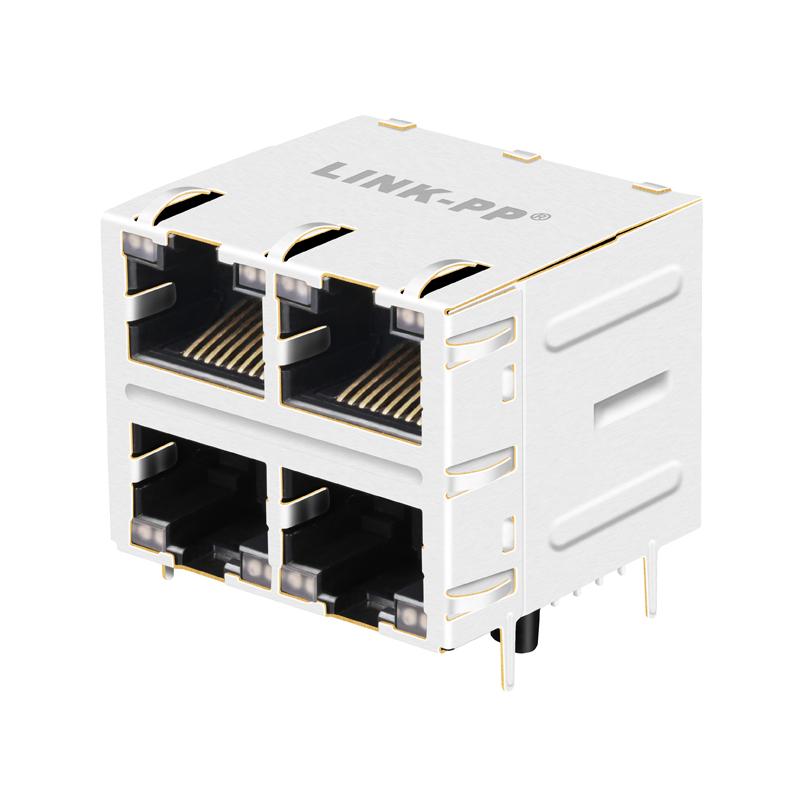

0879-2C2R-54 - 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics
Img 1
0879-2C2R-54 - 2X2 RJ45 Connector with 1000 Base-T Integrated Magnetics
Img 2
