TARE MASS:1050KG

ATM:1750KG

Trailer Body Size:2200X1760X645MM

Trailer whole size:4000X1760X645MM

Tool box size:1760X600X550MM

Trailer body steel:

Frame:100x50x4mm RHS;

Side sheet: 1.5mm Galvanized sheet;

Floor sheet: 1.8mm aluminum checker sheet;

Top sheet: 1.5mm aluminum checker sheet;


Surface finishing:
Galvanised heavy duty chassis and drawbar, Auto painting trailer body and tool box;


Trailer body:

Off-road rear fold design

Stainless steel drawer which come with heavy duty slide rails can load 150kg max;

Electric winch which make it much easier to open and close;

High Density foam mattress;
100% water & dust proof;

Drawer style kitchen system & battery teams;


Trailer Drawbar:

1800mm long 100x50x4mm RHS galvanizing drawbar, come with Jerry can x2 & gas bottle holders x2 & Spare tyre holder x1 & Galvanizing stone guard x1 & ADR 12mm safety chain x2;


Suspension:

Heavy duty independent with coil springs and dual shock absorbers, 10inch electric brake half axle with hand brake;


Wheel & Rims:

Off-road 235/75R15 (or 245/75R16) wheels with 6 studs white rim (or Alloy rims); Including one spare wheel;

Coupling:
Off-road 360° poly-block coupling


Jockey Wheel:

 2000lbs 6" heavy duty style swing up;

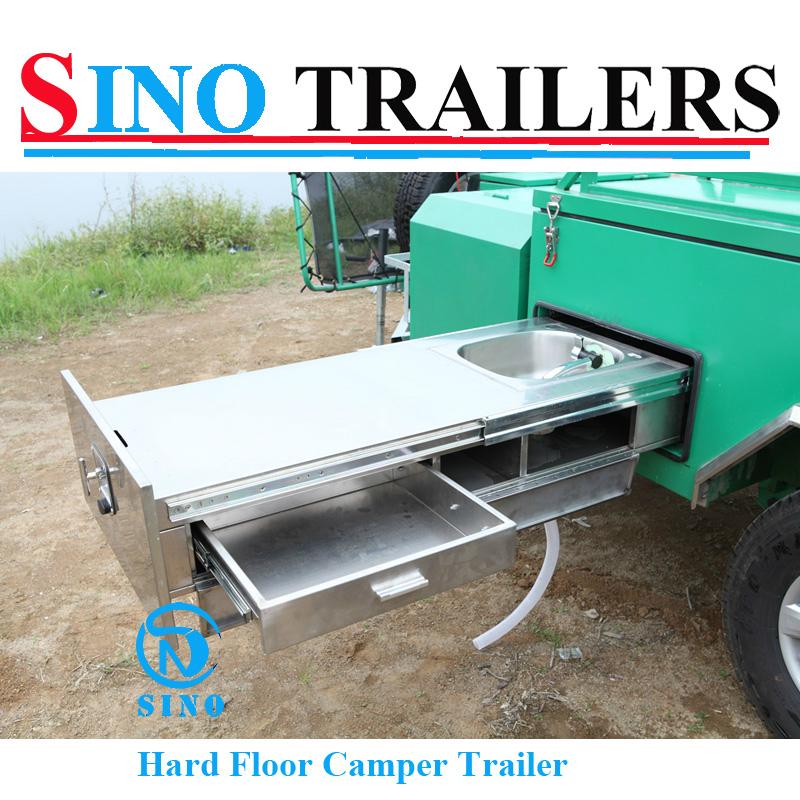

Kitchen system:

Pull out 4 burner stove& stainless steel sink & electric water tap & 90L stainless steel water tank with cover & electric water pump & 12V battery team and charger & Lockable water filler;

Tent:

Full annex with floor, 14 oz canvas roof and walls

Living area 2.2m x 1.7m, annexe 4.5m x 2.2m

Option:

1. Portable 60L high quality fridge;
2. 12V or 24V AC/DC Portable Generator
3. Whole Aluminum checker plate tool box;
4. Aluminum drawer under the bed;
5. 16 inch wheels;
6. Alloy rims;
7. LED soft light belt on top of the tent inside;
