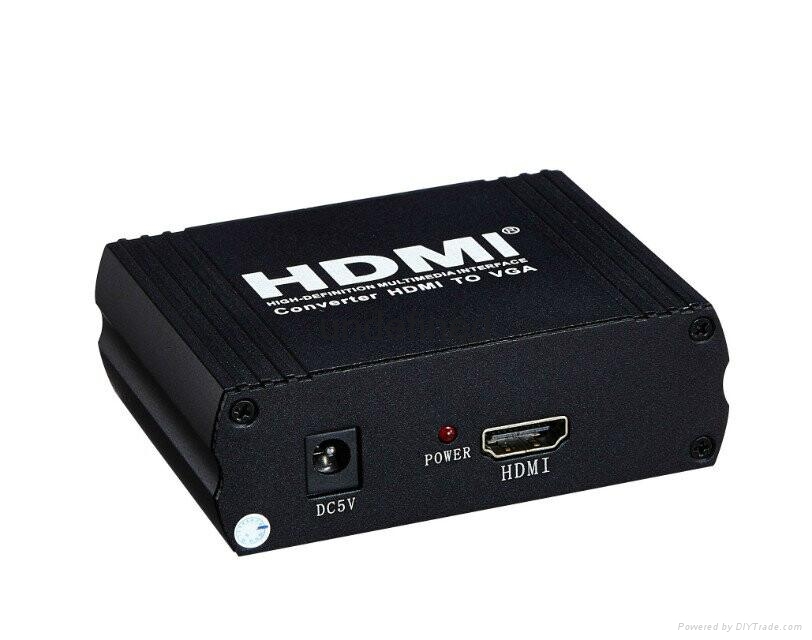

HDMI to VGA converter

Enjoy the vivid world!

The HDMI to VGA converter support HDMI1.4b and HDCP1.4.The VGA output port support 10-bit resolution up to 165MHz pixel rate(1080p/UXGA).Support 422 to 444 converter and with

 One L/R audio output.

FEATURES

• Support HDMI1.4b
• Support HDCP1.4
• Supports highest video resolution 1080p/60Hz and UXGA.
• Support 10-bit resolution uo to 165 MHz pixel rate
• Support 442 to 444 converter.
• DC5V/1A power supply

SPECIFICATIONS:

HDMI version   …………………………………………………………………….. HDMI 1.4a

HDCP  version ……………………….............................................................. HDCP1.4

Support video color format …………………1080P/60Hz/UXGA (10-bit color/165Mhz pixel rate

Support audio format………………………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS /DSD

Max working current………………………………………………………………………..... 600mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Dimension (L x W x H)     ……………………………….………………………89X69X29(mm)

Weight…..………………………………………………………..…….………………………140g

Operating and Connecting

1:  Connect one cable from HDMI source device into HDMI input.

2:  Connect one cable from displayer into VGA output.

3:  Connect  power adapter to the converter.

The Package includes:

1. HDMI to VGA converter  1pc

 2.5V DC Power adapter    1pc

3. User  Manual          1pc
