| Model: | 0305 |
|---|---|
| Brand: | HCN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Other Tools |
| Label: | rock saw for sale , rock cutting machine , rock saw excavator |
| Price: |
US $8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:03 Nov, 2016 |
Description:

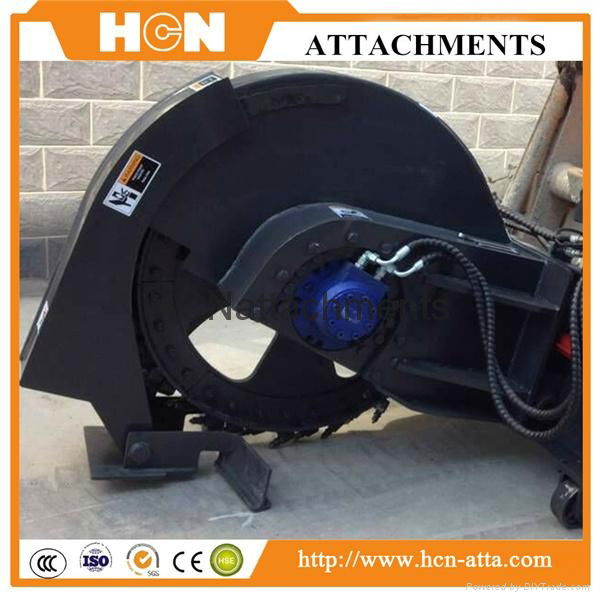

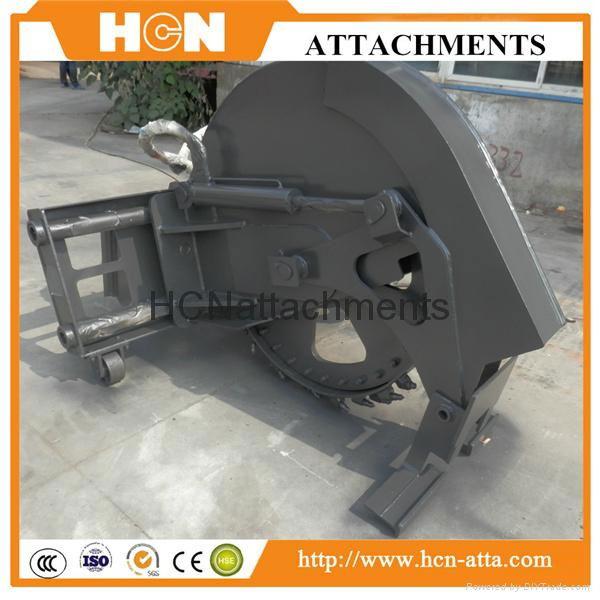

HCN rock saw attachments can be used to repair the roads, trench the ditches for installing water, gas, electricity, and fiber optic cables, the pipeline interleaving layout, cutting asphalt, concrete and reinforced icing on the ground.
The rock cutting machine has a very good economic performance.
Features:
1.Use standard electro-hydraulic control system.
2.The cutting depth can be adjusted.
3.The rock cutter have protective device, it can protect key elements.
4.Using famous brand components,With better strength and durability.
Application Field:
HCN rock saw attachments are an ideal tool for highway maintenance and municipal construction.
Technical Specifications:
|
Rock Saw Technical Specifications |
||
|
Model |
030518 |
030524 |
|
Total Length A(mm) |
1650 |
1970 |
|
Total Width B(mm) |
1676 |
1676 |
|
Total Height C(mm) |
1280 |
1597 |
|
Digging Width D(mm) |
100 |
100 |
|
Max. cutting Depth (mm) |
450 |
600 |
|
Diameter of Cutting Disc (mm) |
1220 |
1524 |
|
Cutting Blades number |
40 |
55 |
|
Flow Range(L/min) |
110-140 |
110-140 |
|
Pressure (Mpa) |
14-22 |
14-22 |
|
Operating Weight (Kg) |
750(not included the cutting bases) |
850(not included the cutting bases) |
AS: HCN products are constantly updated and improved, We keep the right to change parameters and design without informing user in advance. Product appearance and color in the photo may be different from actual products, please kind prevail.
Our Services:
HCN Machinery Technology Co., Ltd. (hereinafter referred as HCN) warrants that its products sold are free from defects in material and workmanship and meets HCN's current standards. The warranty period of key parts (Hydraulic Motor, Engine, Hydraulic Cylinder, Hydraulic Pump ) is 6 months or 500 working hours counting when the machine arrive to objective port. Whichever occurs first, according to the first in the calculation.
