| Model: | 0104 |
|---|---|
| Brand: | HCN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | skid steer 4 in 1 bu , 4-in-1 Buckets , 4 in 1 bucket for sa |
| Price: |
US $3000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:03 Nov, 2016 |
Description:

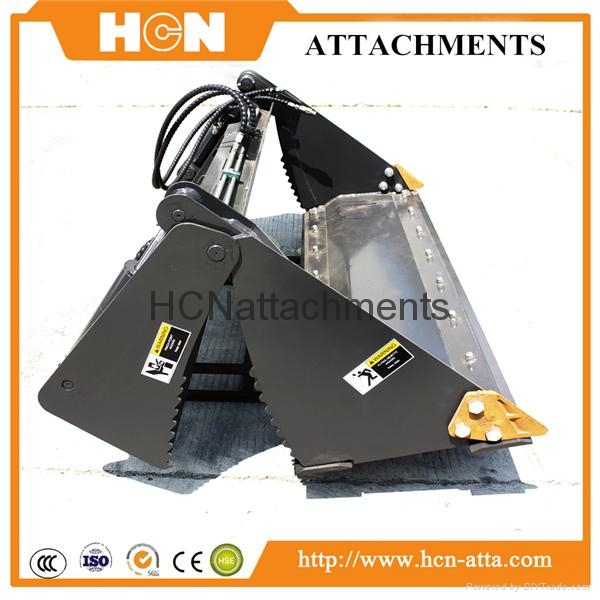

HCN 4 in 1 bucket attachments can be installed skid steer loaders,can complete shoveling, pushing, clipping, digging, and loading operations.
Features:
1.4 features in 1 bucket.
2.16–21Mpa hydraulic cylinders.
3.Bucket bottom and clamshell are reinforced.
4.Optional bolt-on cutting edge.
5.Great for site cleanup, scraping, and brush removal.
6.Multi-tasking bucket keeps you productive.
Technical Specifications:
|
Model |
010460 |
010472 |
010484 |
|
Overall Width B(mm) |
1579 |
1889 |
2195 |
|
Overall Height C (mm) |
820 |
820 |
820 |
|
Overall Length A (mm) |
940 |
940 |
940 |
|
Open distance (mm) |
900 |
900 |
900 |
|
Pressure（Mpa） |
16-21 |
16-21 |
16-21 |
|
（L/min） |
20-30 |
20-30 |
20-30 |
|
Overall Weight (Kg) |
420 |
465 |
512 |
|
Capacity (m3) |
0.42 |
0.50 |
0.57 |
AS: HCN products are constantly updated and improved, We keep the right to change parameters and design without informing user in advance. Product appearance and color in the photo may be different from actual products, please kind prevail.
