| Model: | MF515C |
|---|---|
| Brand: | ZICAR |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | Edge Banding Machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:27 Feb, 2024 |
·The Machine is a manual-operation model, with downward glue pot, can be double-sided gelatinized.
·The machine adopts Taiwan Delta frequency transformer, which can stepless adjust the band feeding speed and glue shaft rotation speed.
·Equipped with length control system, the edging band will be automatically cut according to set-up length, which greatly reduces the waste of the edging band.
·The working table can be tilt from 0-60, suitable for bevel edge banding .
|

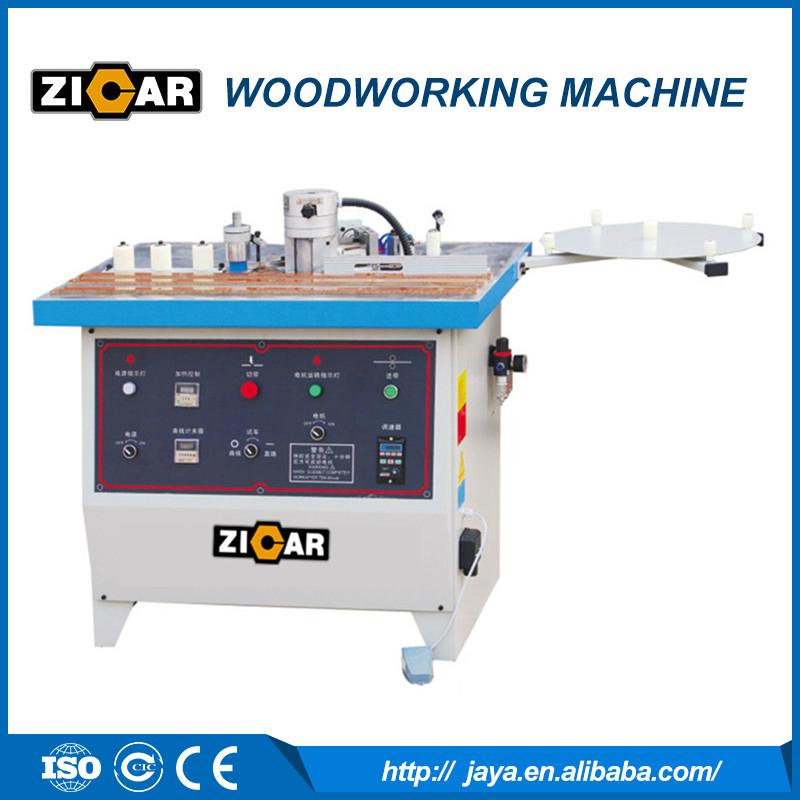

ZICAR Cruving & Straight Edge Banding Machine MF515C |
|
|
Min.Radius Of Banding |
20mm |
|
Heating Power |
1.8kW |
|
Feeding Power |
0.37kW |
|
Total Power |
2.17kW |
|
>4kg/cm2Air Pressure |
>4kg/cm2 |
|
Speed Adjustment |
Variable speed |
|
Feeding Speed |
1-18m/min |
|
Counting Form |
Counter |
|
Application Range |
Melamine Paper,Veneer,Plastic |
|
Edge Thickness |
>0.3mm |
|
Edge Width |
10-50mm |
|
Shape of Working |
Straight,Curved |
|
Machine Size |
1000*830*1000mm |
|
Packing Size |
1100*900*1100mm |
|
Net /Gross Weight |
195/262kgs |
