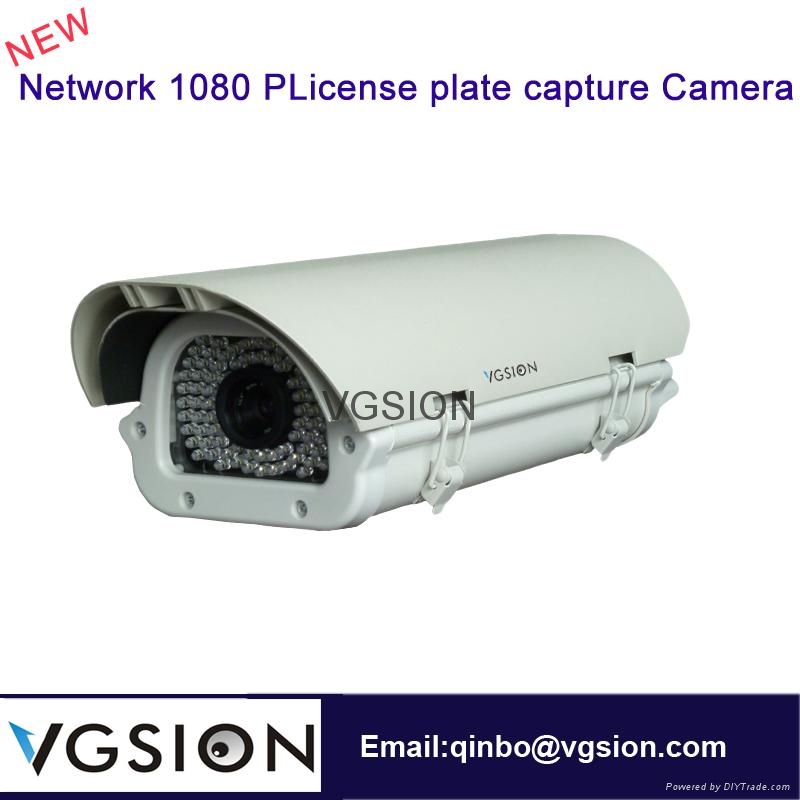

| Model: | VG-LPR-AM2.0MP- |
|---|---|
| Brand: | VGSION |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | License Plate Camera , Network camera , 1080p onvif camera |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:21 May, 2018 |
Outstrading features:
> Ambarella ARM11 CPU
> 1080P Video Resolution
> With TF card slot
> Support auto capture picture by external alarm triger
> Support upload Picture to FTP server
> Support Alarm input (Alarm Output is optional)
> Max.Support 120 km /h Vehicle Speed
> 6 mm , 8mm ,12mm ,16 mm and 25 mm lens are optional
> Anti Strong Light & WDR function
> Support choosing different working mode according vehicle speed
> With 90 PCS IR LEDs, IR distance around 70 meters
> Suits for street, Road ,parking ,school,gas station and other important place surveillance. It can capture picture when it is connected
| Model No. | VG-LPR-AM2.0MP-IR90 | |
| video | Sensor | Exmor 1/2.8" SONY 2.1 CMOS Sensor |
| Max. Resolution | Full HD/1080P(1920x1080) OR D1 | |
| Illumination | Color:0.05Lux at F1.2 / IR LED on 0.001Lux at F1.2 | |
| WDR | Support | |
| Compression format | H.264 Main Profile @ Level 4.1 / Motion JPEG | |
| Multi streaming | FHD/1080P + Full D1 + CVBS | |
| FPS | 1-30FPS | |
| Streaming | Support H.264 and M-JPEG(Bit rate is adjustable) | |
| 3D noise reduction | support | |
| ROI area setting | Support (Make pointed area picture be better than other area) | |
| Lens | 3MP 6MM, 8MM ,12MM,16MM and 25mm are opitional | |
| Working mode | 5 mode | Mode A1: common ( No anti strong light function)
Mode A2: car speed 30KM/H ModeA3: Car Speed 60KM/H Model A4: Car Speed 90KM/H Mode A5: Car Speed 120KM/H |
| IR LEDs | light intensity is adustable | 00-32 Level |
| internet | Interface | One RJ45,10/100M, one BNC,one power socket |
| Internet protocol |
IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP and ect |
|
| Access protocol | WEB, SDK API, ONVIF | |
| storage | Video | Computer or NVR |
| Picture | TF card or FTP server | |
| Safety | watch dog | auto discovery ,when device gets crashed |
| default setting | remotely set | |
| others | OS | Microsoft Windows XP/Windows 7 |
| Microsoft Internet Explorer 6.x or above | ||
| video ouput | 1.0Vp-p,75ohm | |
| working power | DC12V | |
| working temperature | -10 degrees to 50 degrees | |
| weight | 2.5kg( Volume weight 4KG ) | |
| size | 390mm(L)×(W)140mm×(H)143mm | |
