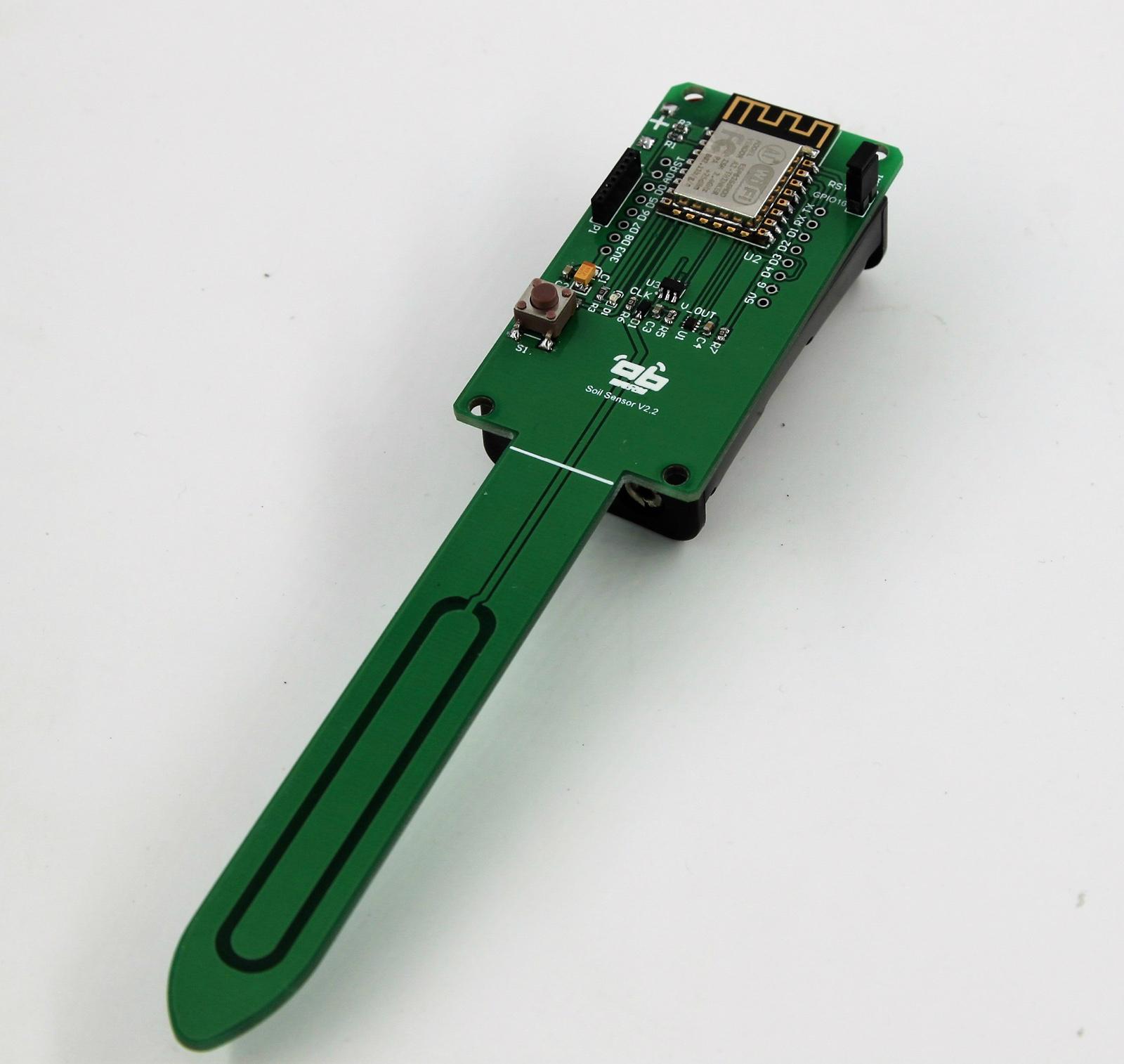

ESP8266 soil moisture sensor Wi-Fi

What is it?

ESP8266 based soil moisture sensor Wi-Fi enabled. Also provide ambient temperature and humidity sensor.

Note: Please choose "ESP8266 Flasher Rev2" add-on option if you want to programming the sensor.

At the sensor's heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. You can useESP8266 flasher that an upload code at a blistering 115200 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings.

The sensor can upload sensor datas to remote server. We provided example code for uploading to thingspeak.

The project is modifying of the I2C Moisture Sensor project from Miceuz. Thanks for his source code.

Hardware

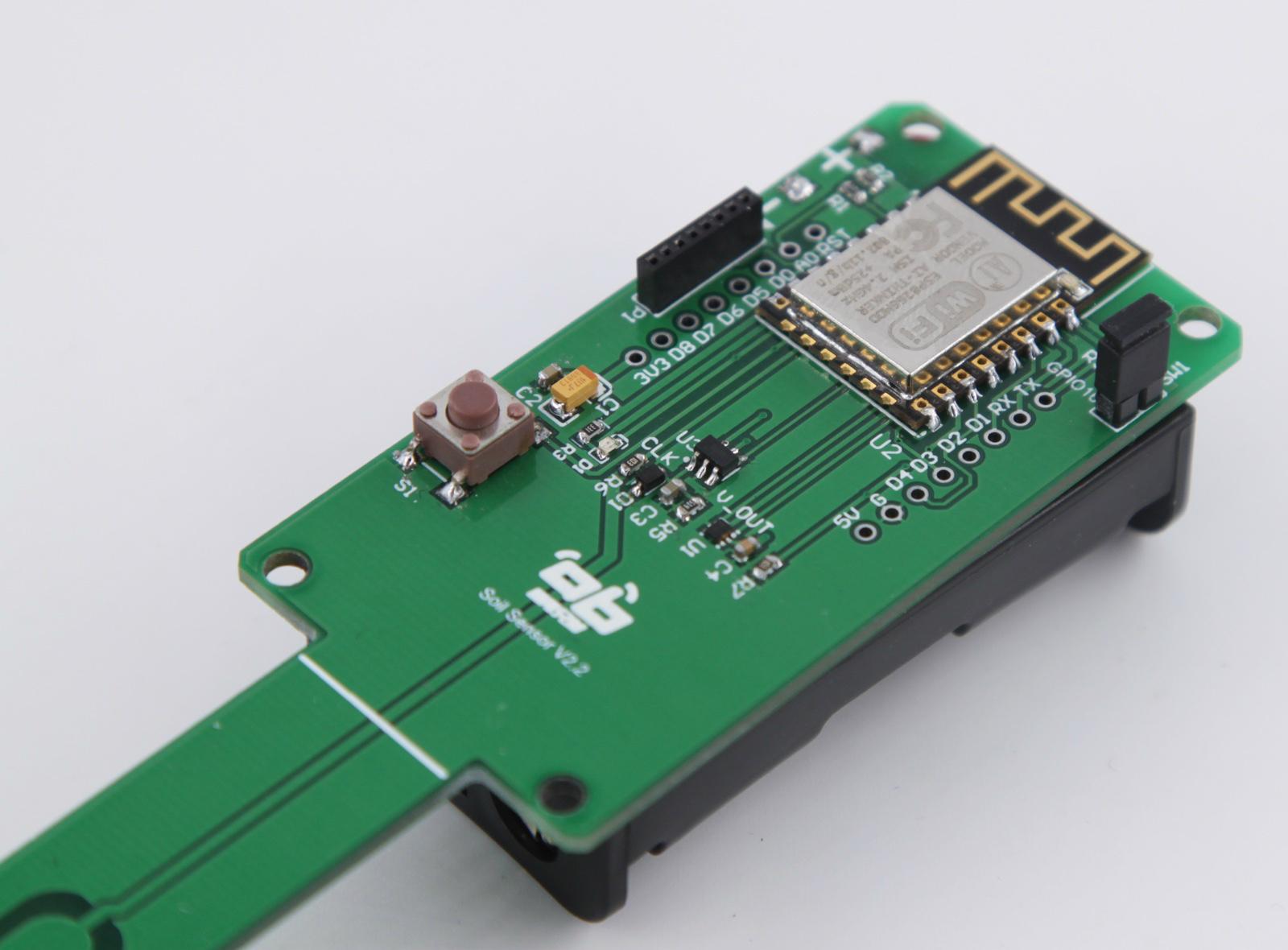

• ESP-12F module x 1
• Button x 1
• Programming pinouts
• Red led x 1
• DHT11 temperature & humidity sensor x 1
• Soil moisture sensor x 1

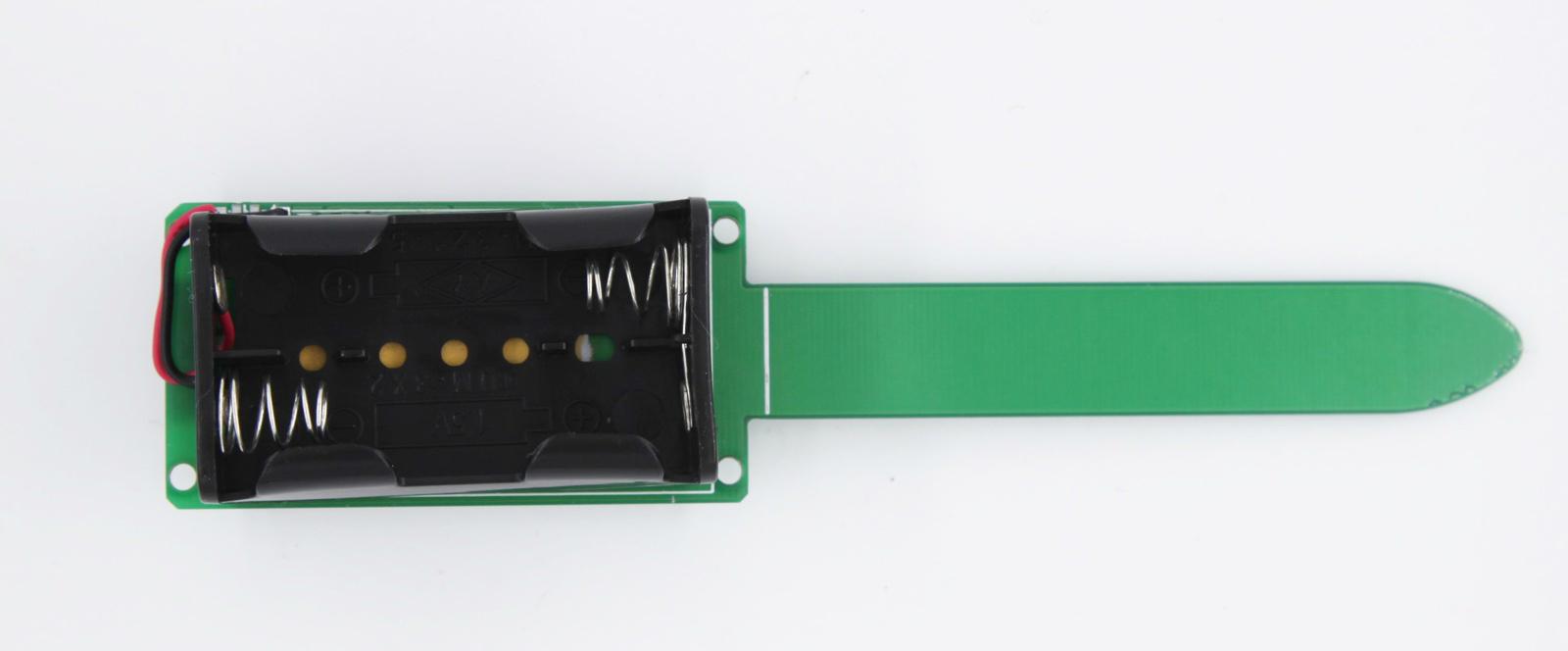

• AA Battery holder x 1
• Measures 35mm x 157mm

AA battery not included. Please add AA battery x 2.

Please check here for more details and tutorials.
