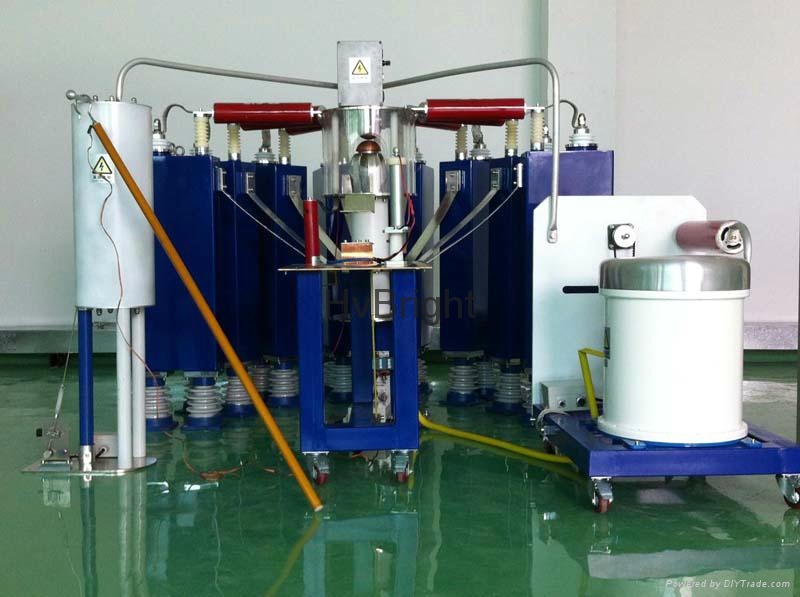

SA type impulse current test systems can generate different types lightning impulse current shapes such as 4/10μs, 8/20μs, 1＜20μs, 30/80μs, 60/100μs , long duration current according to IEC 60099-4. Modifications can be applied according to the request of our customers.
This type of test system is especially to test the metal oxide surge arresters.
Applications;
Technical Parameters;
|
Exponential Impulse Currents |
Wave Shape |
Peak Current |
Residual Voltage |
|
μs |
kA |
kV |
|
|
High current impulse 4/10μs |
T1=4±0.5μs,T2=10±1μs |
Upto 200kA |
40kV |
|
Lightning current impulse 8/20μs |
T1=8±1μs,T2=20±2μs |
Upto 60kA |
50kV |
|
Steep current impulse 1＜20μs |
T1=1μs±0.1μs,T2＜20μs |
Upto 30kA |
40kV |
|
30/80μs current impulse |
T1=25±5μs,T2=80±10μs |
Upto 60kA |
45kV |
|
Switching impulse current 60/100μs |
T2=60μs~200μs（T2≈2T1） |
Upto 35kA |
|
|
2ms long duration |
2ms≤Td≤2.4ms |
Upto 2kA |
_ |
|
2.8ms long duration |
2.8ms≤Td≤3.36ms |
Upto 1500A |
_ |
|
3.2ms long duration |
3.2ms≤Td≤3.84ms |
Upto 1500A |
_ |
