  5 to 10 cm short range 125 KHz  reader with wiegand 26

Optional Model:

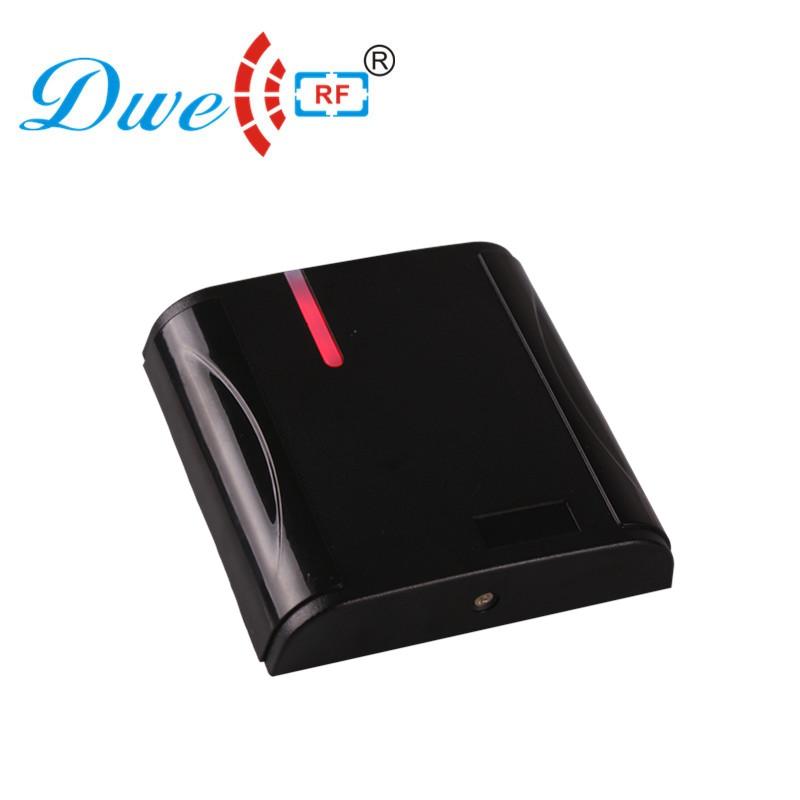

N001A-26 (Black Color, 125khz EM ID wiegand 26  )

Specification

Wiegand 26bits/  Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature: -25º C to 75º C

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

With Water-Proof Function

86*86*20(mm)

Package:

100pcs per carton. Carton Size: 43.5*56*23(cm)

Packing List:

1*RFID Reader

Installation Description

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 12V

Black GND

Green D0

White D1

Yellow BEEP

Blue   LED

Grey  26/34( default is wiegand 26 bits, if you need wiegand 34 , connect grey wire to GND !)

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
