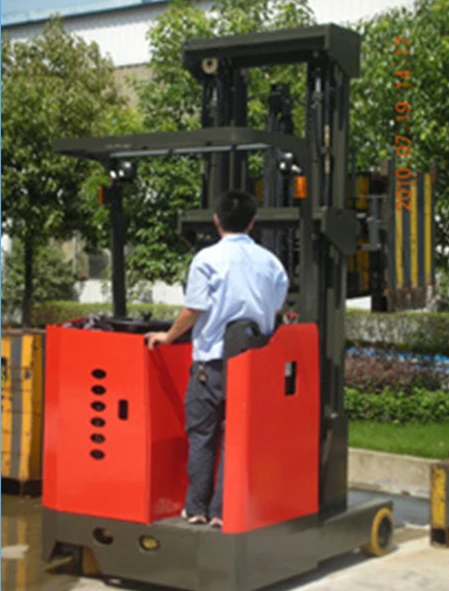

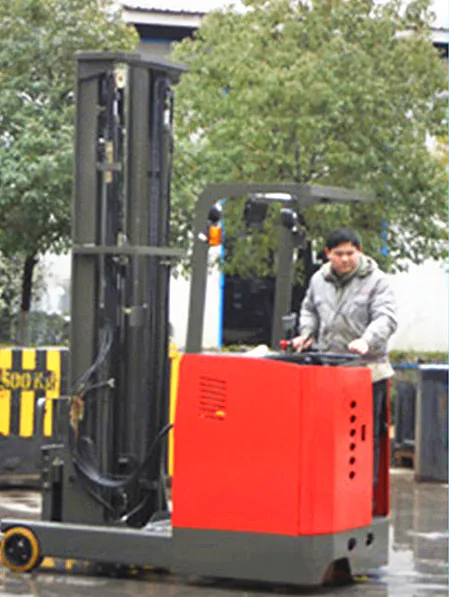

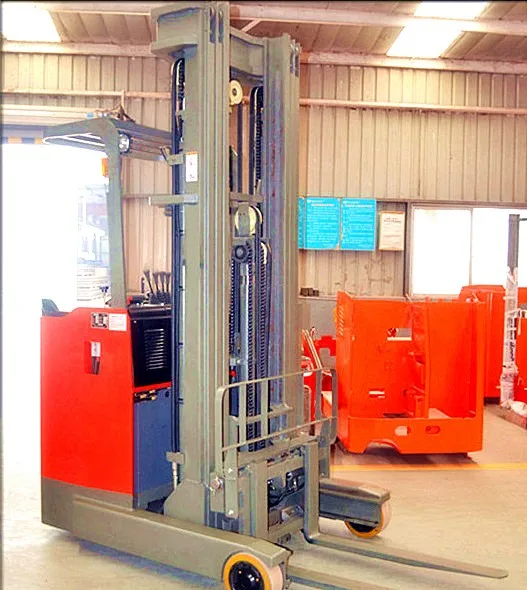

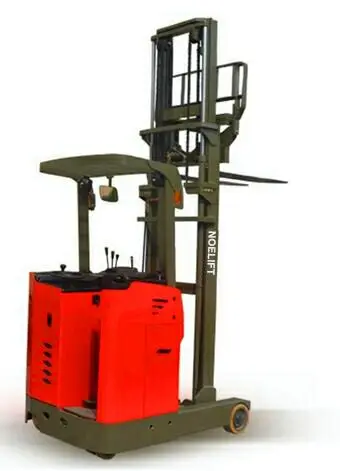

electric reach truck pallet stacker

Model:TF
Brand:NOELIFT
Origin:Made In China
Category:Transportation / Logistics / Forklifts, Pallet Trucks
Label:pallet truck , pallet stacker , forklift
Price: US $1111 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hangzhou Noelift Equipment Co., Ltd

Free MemberZhe Jiang - China
Live Chat:Last Online:17 Oct, 2016

Product Description

Electric Reach Truck Feature



48V Electric Reach Track TF series

1, Narrow Chassis suit for narrow asiles.

2, 7.2M lifting height is no problem.
3, Wide vision mast, soft and comfortable design.

TF Series with AC driving motor, Rated load capacity:1500- 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;

ELECTRIC REACH TRUCK SPECIFICATIONS

Description

Electric reach truck-TF(48V)

Model

TF15-30

TF20-30

TF25-30

Load capacity  Kg

1500

2000

2500

Load center   mm

500

500

500

Max. lifting height  mm

3000

3000

3000

Wheel type

Polyurethane solid tire

Fork size(LxWxT)mm

1070x100x35

1070x122x40

1070x122x40

Overall length(with forks)  mm

2240

2450

2450

Overall width    mm

1098

1258

1258

Overall height mast closed   mm

2100

2100

2100

Overall height fork raised(with backrest)mm

3900

3900

3900

Overhead guard height  mm

2320

2320

2320

Outside turning radius   mm

1615

1965

1965

Total weight( with battery)   Kg

2300

2600

2600

Battery   V/Ah

48/300

48/400

48/400

Charger   V/A

48/40

48/50

48/50

Driving motor  Kw

5.5(AC)

5.5(AC)

5.5(AC)

Lifting motor  Kw

6.3

7.5

7.5

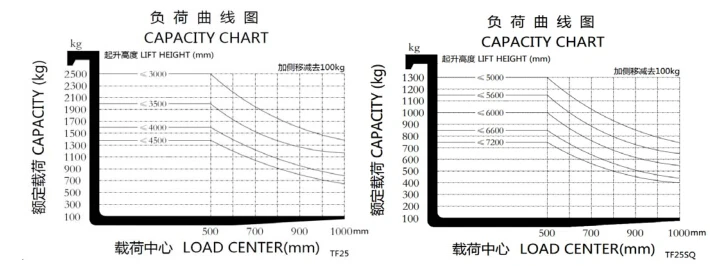

CAPACITY CHART

Deatail Pictures
