slot photoelectric sensor
Product Description

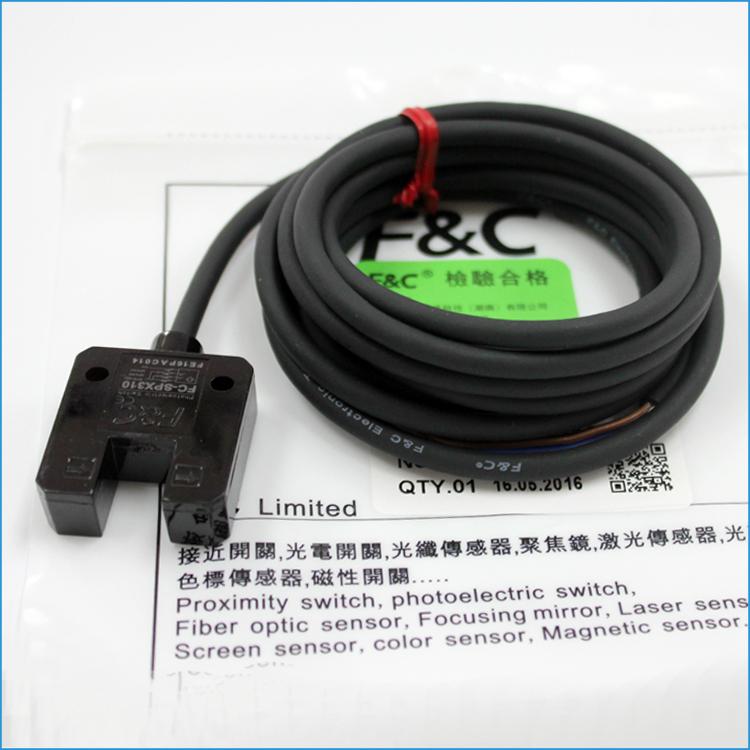

Slot photoelectri sensor FC-SPX310
| Model |
FC-SPX310 |
| Output Method |
NPN NO+NC |
| Standard Detection Object Size |
diameter 1mm opaque objects |
| Repeat accuracy |
0.02mm |
| Detection Distance |
10mm |
| Light Source |
940 nm Infrared modulated light |
| Operating Voltage |
12-24 VDC |
| Response Time |
0.3ms Max. |
| Current Consumption |
15mA Max. |
| Load current |
100mA Max at 24 VDC |
| Insulation Resistance |
20M Ohm Min. at 500 VDC |
| Dielectric strength |
60 seconds at 1000VAC 60HZ |
| Protection Degree |
IP64 |
| Operating Temperature |
-10℃-50℃ (No Icing) |
| Reverse Polarity Protection |
Yes |
| Short Circuit Protection |
Yes |
| Material |
ABS |
| Wire Method |
Prewired diameter 3mm*2M/- 4wires |
More information, Plesase feel free to contact me @ Skype ID: Jelena_wang2016 or Wechat ID: 86 18373177468
| Payment Terms: | TT/Western Union/Paypal and others |
| |
