| Model: | DB-30 |
|---|---|
| Brand: | Liangong |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | gauge meter , striking machine , gauge length meter |
| Price: |
US $2500
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:21 Feb, 2022 |
1. Overview

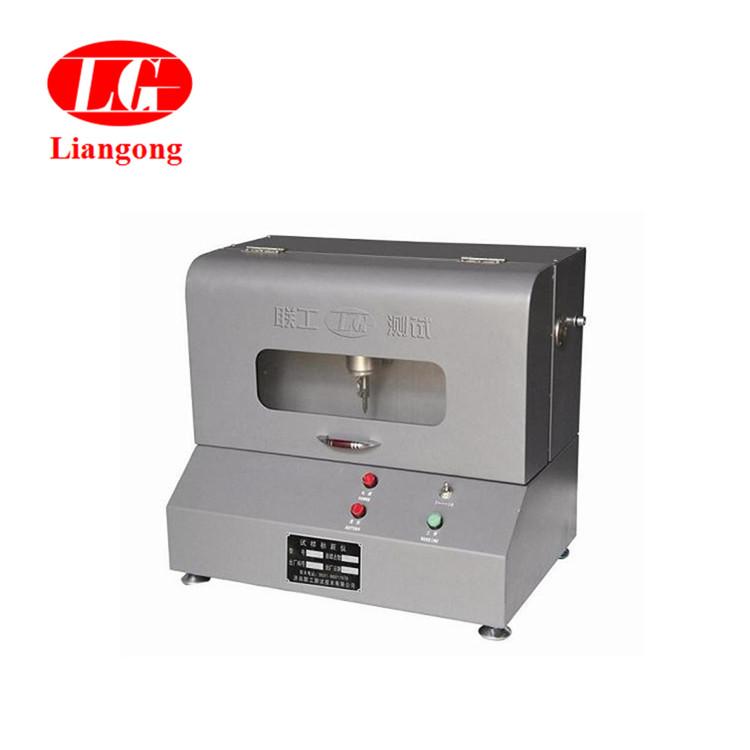

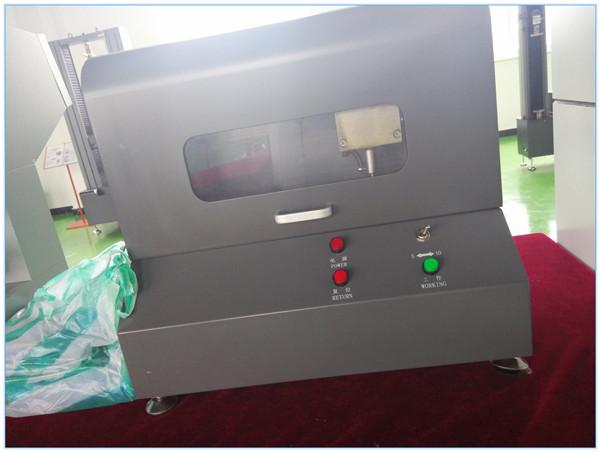

DB-30 Type Power-driven Gauge Length Meter (Power-driven Striking Point Machine) is the special equipment which is designed and made according to stipulation in national standard GB/T228-2002 <Metal material room time tensile testing metho t;.
This machine adopts high-precision ball screw to locate correctly and uses import transducer to collecting rotation signal to drive high-frequency electromagnet to strike point synchronously.Gauge length is correct, high-efficient and easy to operate. It’s the necessary matching equipment for labs.
2. Main technical parameters:
Max. gauge length: 300mm
Interval: 5mm or 10mm (adjustable)
Power source: 220V, 50HZ
Power of motor: 10W
Outline size: 460mm*315mm*450mm
Weight: 25Kg
