adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna

Model:WK-3G026-FPC
Brand:Walk
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:3g gsm PCB Antenna , fpc 3g gsm antenna , flexible pcb antenna
Price: US $1.9 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Walk Electronics Co.,LTD

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:21 Jun, 2022

Product Description

GSM 3G PCB Antenna Specifications:

Part Number: WK-3G026-FPC

GSM 3G antenna Specification

Frequency Range

850/900/1800/1900/2170MHz

V.S.W.R

1.5:1

Gain

2.5dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

20

Impedance

50 ohm

Max wind speed

200km/h

Mechanical Specifications

Size

37×7×0.5mm

Weight

<100g

Cable

120mm 1.13mm(D) cable

Connector

U.FL(IPEX) connector

Other Cable

0.81mm(D), RG178, RG174 or others

Other Connector

W.FL(MHF4), MMCX, SMA, FME or others

Mounting

Adhesive(3M tape)

Housing

N/A

Environmental Specification

Working Temp

-40℃~+75℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis




Product Image

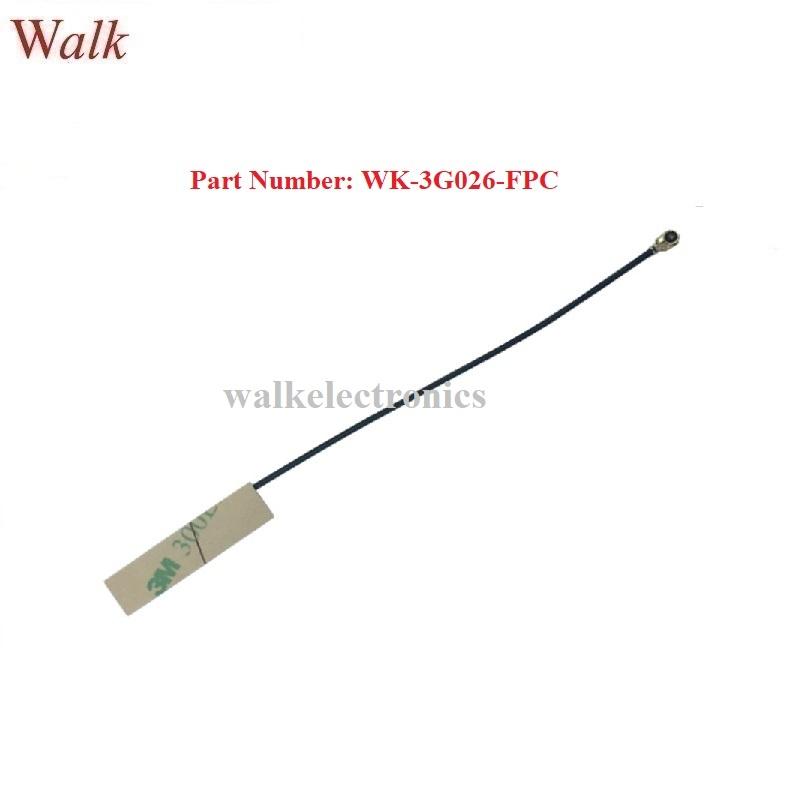

adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna  1
Img 1
adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna  2
Img 2
adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna  3
Img 3
adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna  4
Img 4
adhesive mount u.fl ipex GSM 3G fpc PCB aerial 3g gsm flexible internal antenna  5
Img 5
