Introduction

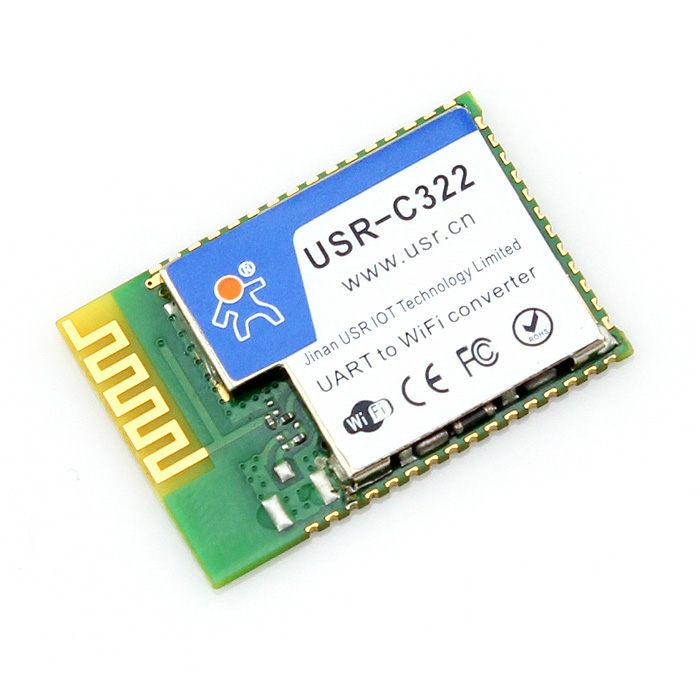

The TI CC3200 WiFi Modules, used for data transparent transmission. USR-C322 is a wifi module released by USR IOT, which has the features of minisize, low power and industry-grade. The hardware of USR-C322 wifi module integrates MAC, baseband chip, RF transceiver unit and power amplifier.

USR-C322 wifi module is based on TI CC3200 chip, which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism. And it supports WiFi protocol and TCP/IP protocol. User can achieve the function of UART devices connecting to Internet with simple configuration.

Features

• Support Wi-Fi@2.4 GHz 802.11 b/g/n wireless standards
• Based on ARM Cortex-M4 kernel, running frequency of 80 MHZ
• Support WEP, WPA/WPA2 security mode
• Support AP/STA working mode
• Support Simplelink/usrlink networking configuration
• Support custom webpage function
• The fully integrated serial to wifi TCP/UDP transmission function,the rate of serial port up to 3M bps
• Support two uart and three socket communication
• Support PC1 16 bytes encryption when work in transparent transmission mode
• Support HTTPD Client function
• Support websocket function
• Support SSL Client function
• Support search in local area network (LAN) and wireless parameters setting function
• Support TCP/UDP Client registration packet mechanism
• Support class RFC2217 automatic baud rate adaptation function
• Supports 485 transmission control
• Support AT+ simple instruction set configuration
• Single 3.3 V power supply
• Ultra low power mode, support deep dormancy
• Support internal/external antenna option
• Minisize: 18.22mm*26.65mm*2.8mm SMT
• FCC/CE/RoHS certificated
