High speed disposable paper cup machine with cheap price

Model:MG-C800
Brand:MINGGUO
Origin:Made In China
Category:Packaging , Printing & Paper / Packaging Materials / Paper Packaging Materials
Label:china suppliers , paper cup making mac , automatic paper cup
Price: US $36000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

MINGGUO MACHINERY

Free MemberZhe Jiang - China
Live Chat:Last Online:20 Aug, 2016

Product Description









         HIGH SPEED PAPER CUP FORMING MACHINE



The MG-C800 type machine is an upgrade product that base on single turnplate paper cup machine. The machine adopts open cam design, interrupted division design, gear drive, longitudinal axis design. So they can reasonably distribute each part function.

 The whole machine adopts Spray lubrication , thus reduce the parts abrade,  and it adopts Switzerland leister heater for cup body and bottom paper sealing ;  and silicon oil flow controlled by PLC & electromagnetic va e, in total two course for top curling forming first course rotate top curling ,and second that   heating and forming , thus the cup forming will be more perfectly.

 PLC system controls the whole cup forming process. By adopting photoelectric failure-detecting system and servo control feeding, our paper cup machine’s reliable performance is guaranteed, thus offering a rapid and stable operation. The machine can auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and reduce labor force.

 Using CCD image detection system (optionally), it will detected the broken, tainted, and molding defects cups. without manual selection,it can reduce secondary pollution.

 MG-C800 intelligent paper cup machine simplifies paper cup forming process This machine can finish paper feeding, gluing, cup-bottom feeding heating, knurling, cup-mouth curling, cup-collecting, etc .It is especially suitable for making paper cups with height of 50-135mm.





ADVANTEGES INTRODUCED







TECHNICAL SPECIFICATION

Model

MG-C800

Weight

3200 KG

Dimension

2600x1600x1850 MM

Total power

12KW 380V50Hz

Air supply requirement

0.5-0.8MPa,0.4cube/min

Capacity

80-100 PCS/MIN

Paperspecification

 SINGLE /DOUBLE PE COATED PAPER

Paper grams

190-350g/mm

Cup size

  4-16OZ



Cup Sampel



MACHINE CONFIGURATION

Main Listing

Brand

Circuit breaker

Schneider France

thermal protector

Schneider France

Phase sequence protection

Schneider France

Miniature relay

Schneider France

A.C. contactor

Schneider France

Temperature control module

AUTONICS ,Korea

Temperature controller

OMRON , Taiwan

Heaters

Switzerland leisture,four pieces



Photocell eye

Panasonic,Japan

Frequency Converter

Scheneider/Mitsubishi,Japan

Servo motor

Panasonic/Mitsubishi/Yaskawa,Japan

Screen

WEINVIEW,Taiwan

Pneumatic component

AirTAC ,Taiwan/SMC ,Japan

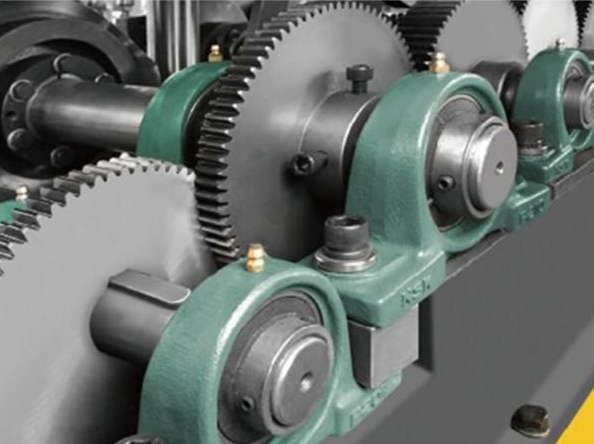

Cam/Gear

Professional manufactured by MAZAK machining center

Main motor

GPG Taiwan

Oil pump motor

Taiwan

Ultrasonic

Green,Taiwan

PLC

Mitsubishi,Japan

bearing

NSK,Japan



WORKSHOP



CERTIFICATE



 EXHIBITION





PACKAGING



 FAQ

1: Are you a manufacturer?
   Yes,We have been in making paper cup machine for nearly 7 years We have our own workshop,
   and nearly 80 workers here.



2:What about the payment term ?
    Mostly 30%T/T in advanced,the rest need paid before shipping.


3:Where is your factory location?
   We Are Location In Feiyun District ,Feiyun Street Ruian City,Zhejiang Province,China



4:How's your after-sale service?
we offers one year warrantyr and we can send to you freely if there is any spare part broken because of our reason.

Our engineers can also go to your factory to install machines and train your workers.


5:What about the Delivery time?

Within 40-50 days after receipt of advance payment and cup sample







ANY QUESTION LET ME KNOW PLEASE!



 SKYPE: mingguo-mark        WHATSAPP:+86 15158700341





MG-C800 HIGH SPEED COFFEE CUP MAKING MACHINE

SPEED:90-110PCS/MIN

MACHINE VIDEO LINK:

https://www.youtube.com/watch?v=toyHJaLbtuw
