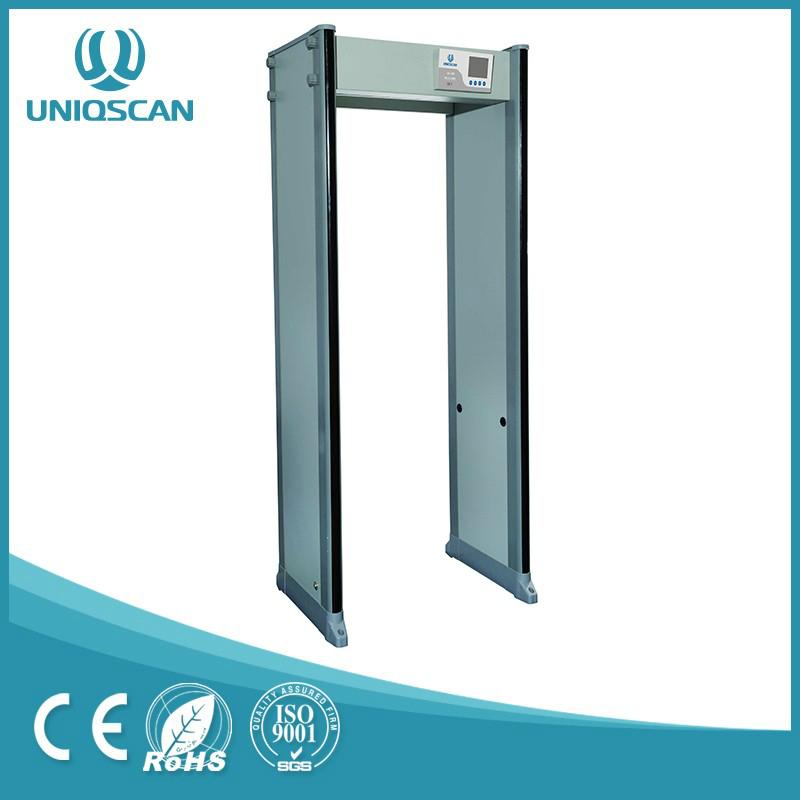

WALK THROUGH METAL DETECTOR

MODEL:UZ800

33 zones

Parameters

Power Supply:AC85V-264V / 47.5-60Hz

Power: <15W

Working temperature:-20℃--+50℃

Waterproof can be used outside

Passage size: 2050mm(H)*760mm(W)*600mm(D)

Gross weight: 65KG

Characteristic & Function

• 33 detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 300 sensitivity level
• 5.7 inch color LCD screen
• Infrared remote control
• Using high density fireproof material
• Automatically count passengers and alarm times
• IN / OUT counter: bi-directional counter
• High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
• 30 preset programs for security applications
• Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
• 100 frequencies for option. To work with neighbouring gates at 40cm
• Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
• Detecting speed: up to 100 passenger/ min.
• Power save: Automatically power OFF if no passengers in 5 mins. Once pass through the gate, it will automatic working.
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• Network support
• Can be customized 45 zones
• 4 hours backup battery (Option)
