WX118 1W single turn wirewound potentiometer with 49mm long shaft (China Manufacturer) - Potentiometer

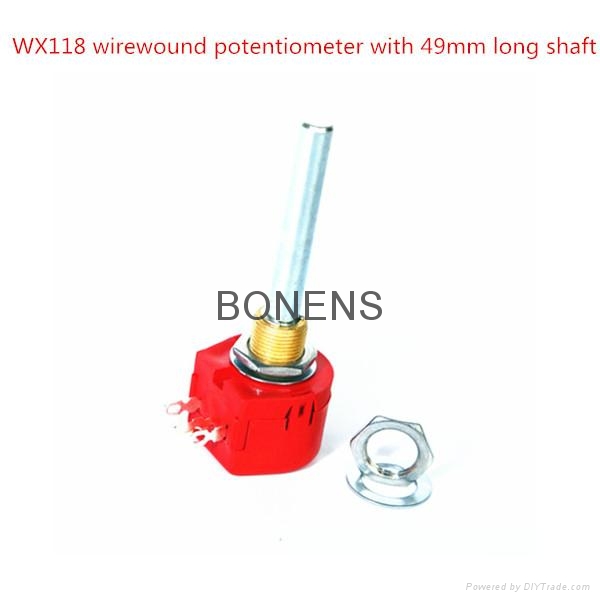

WX118 1W single turn wirewound potentiometer with 49mm long shaft 1

WX118 1W single turn wirewound potentiometer with 49mm long shaft 2

WX118 1W single turn wirewound potentiometer with 49mm long shaft

Model:	WX118
Brand:	-
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Potentiometer
Label:	single turn , wirewound , 1w
Price:	-
Min. Order:	100 pc

Inquire Now Add to Basket

Member Information

Sichuan Qixing Electronics Co.,Ltd.

Free MemberSi chuan - China

Live Chat:

Last Online:23 Feb, 2023

Product Description

Model	WX118
Standard Resist. Range	100Ω~22kΩ
Power Ratings	1W/40℃
Maximum Working Voltage	200V
Maximum Wiper Current	100mA
Operating Temp. Range	-55℃~+125℃
Resistance Tolerance	±10%
Effective Electrical Travel	mech.285°±5° elektr.265°±5°
End Resistance	2Ωmax
Dielectric Strength (Room Conditions)	1000V AC
Insulation Resistance	1000MΩmin.(at 500V DC)
Shaft Torque	3.5~100mN.m
Rotational Life	5000cycles without discontinuity
Temperature Coefficient	±100ppm/℃

Payment Terms:	T/T PAYPAL WESTUION

Product Image

Img 1

Img 2

Img 3

Img 4

Send Inquiry to this Member

Sichuan Qixing Electronics Co.,Ltd.

Floor 2, Plant 2, No. 388, North Sec. Of Rongtai Avenue, Wenjiang Dist.

Phone:: 86-028-86232682

Fax:: 86

Contact:: Serena Hsu (Oversea Sales)

Mobile:: 15680731820
