| Model: | Solid CBNinsert |
|---|---|
| Brand: | Halnn |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Abrasives |
| Label: | forged steel rolls , rough machining , CBN inserts |
| Price: |
US $30
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:07 Jul, 2017 |
Rough machining forged steel cold rolls/roller CBN inserts
1.Product Features

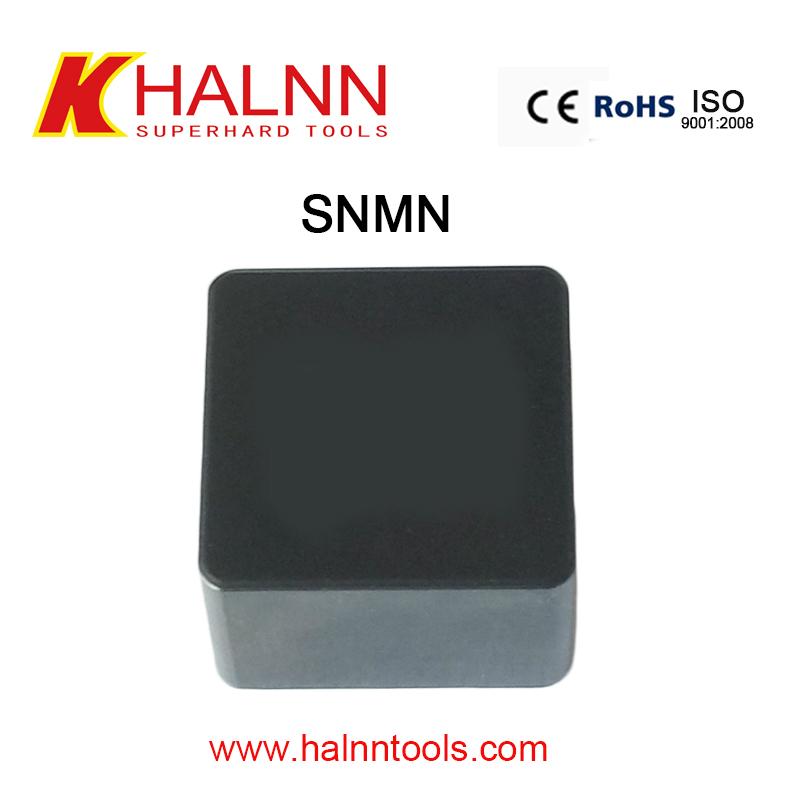

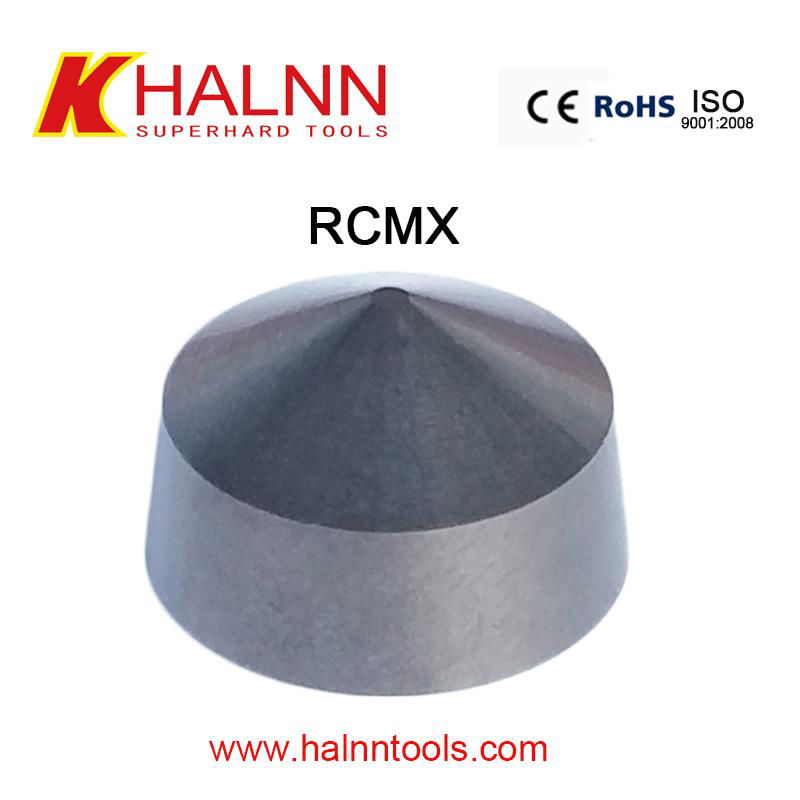

Solid CBN inserts,which is a new technology used for rough turning hard to cut materials,the appearance of Solid CBN inserts helped so many manufacturers make it possible machining high hardness castings,Forged steel rolls.
2.Machining conditions
(1)Inserts Type:Machine folder indexable
(2)Processing:Roughing and Finishing
(3)Machining Hardness:Between HRC45 and HRC68
3.Advantages of Machining forged steel cold rolls CBN inserts
When machining quenched steel and heat-resistant alloy,it has excellent wear-resistance,heat-resistance,and it suited for finishing and semi-finishing.
4.Application Case
|
Machining Part：Hardened Steel roll
Workpiece Hardness:Above HRC 50 Cutting Type:Dry Cutting Cutting Parameters:ap=2mm,Fr=0.1mm/r,Vc=180m/min |
|||
|
Inserts Materials |
Linear Speed(m/min) |
Lifetime improved |
Failure mode |
|
180 |
6~10 times |
Normal wear |
|
|
Ceramic Inserts |
65 |
…… |
Chipping |
More information,please click http://www.halnntools.com/pro/,Or contact with us halnntools@gmail.com;whatsapp:+8615036165377;skype:cbn_inserts_angels
