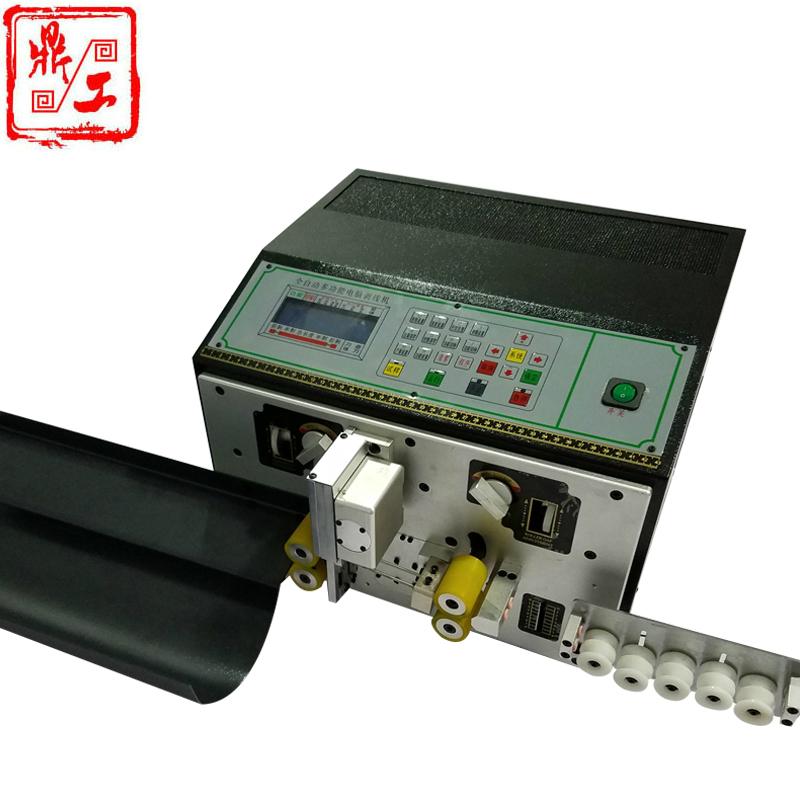

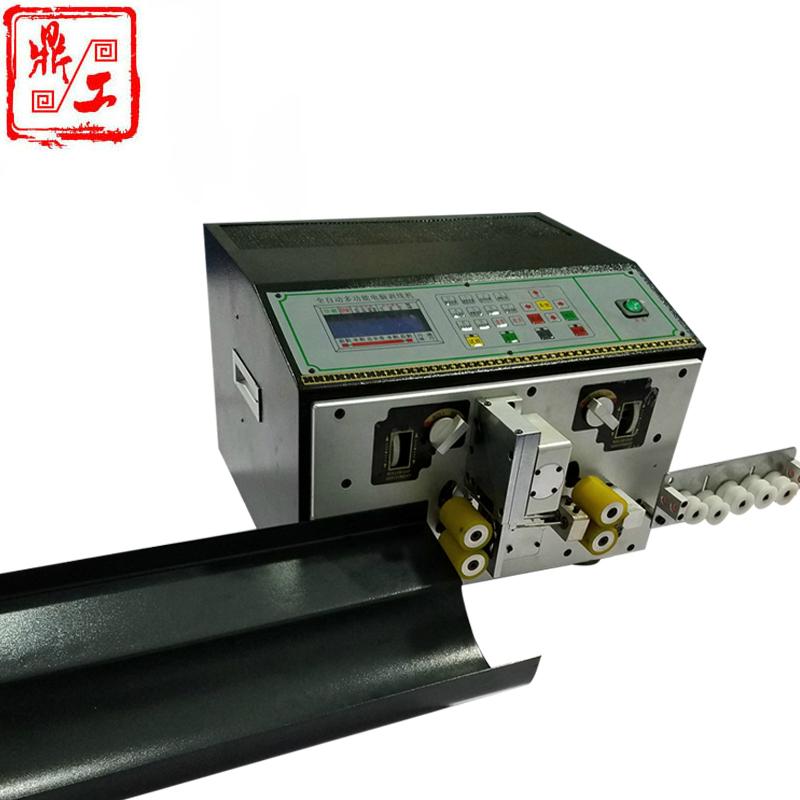

Automatic Wire cutting machineWire stripping machineWire peeling machine

Model: DG - 220

Wire stripping range:

To electronic wire, teflon wire, silicon rubber wire, fiberglass wire, shielded wire, coaxial line, casing, etc.

Wire stripping function

Automatic cutting, skinning, bucket, intermediate peeling, etc.

Technical parameters

 Model：DG - 220

'inch Dimensions： 450 mm * 720 mm * 720 MMM

 Weight: 39KG

Voltage : AC110V / 220 v

Power :0.18 kw

 Length 0.1-6000 - mm

At the same time cutting Simultaneously 2 PCS (more can be custom, such as article 3/4 cut at the same time)

0.1-99 - mm Stripping length Stripping length (depending on the wire) determined on wire materials

Peel linear velocity Stripping speed 5000-6000 PCS

Cut off the error Accuracy 0.002 * Lmm

Apply to wire diameter Applicable wire AWG# 12 - AWG# 32

Function characteristics:

1. The new economical high speed design, speed (strip cutting more than 10000 times per hour), suitable for 12 ~ 32 # don't

With linear)

2. With a super short design, peeling on both ends of the shortest cut 5 mm, can all peeling or half stripping or more segments of skin

3. The machine has stable performance, simple operation, Chinese interface, LCD display.

4. Fine workmanship, beautiful shape, wire cutting machine.

5. Suitable for wire processing enterprises/transformer manufacturer/socket manufacturers need to use wire cutting stripping process of all kinds of enterprises.

6. Can be used to tie cut off at the same time, heat shrinkable tube cutting, casing cutting.

7. Derived from Japan's head structure, low noise, low energy consumption.

8. Four-wheel drive, high precision.

After the warranty

The machine warranty for a year, 15 days replacement, lifelong maintenance!
