UT200 series ac/dc digital clip-on table with ac/dc voltage, ac/dc current, resistance, capacitance, frequency, temperature, connectivity and diode measurement functions, is a full range of overload protection circuit, complete function and the outstanding performance of electrical/electronic instruments.

Can be widely used in electronics, electric power, petrochemical, metallurgy, manufacturing, oil and other industries, is an ideal tool for equipment maintenance and maintenance.

The product description

Model: UNI-T  UT204A
- Color: Grey + Red
- 1.5" LCD display
- AC voltage range: 4V / 40V / 400V ±(1%+5), 600V ±(1.2%+5)
- DC voltage range: 400mV ±(0.8%+3), 4V / 40V / 400V ±(0.8%+1), 600V ±(1.0%+3)
- AC current range: 40A ± (2.5%+8), 600A ± (2.5%+5)
- DC current range: 40A / 600A ±(2.0%+5)
- Resistance: 400ohm ±(1.2%+2), 4Kohm / 40Kohm / 400Kohm ±(1.0%+2), 4Mohm ±(1.2%+2), 40Mohm ±(1.5%+2)
- Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF ±(4.0%+3), 100uF ±(5.0%+10)
- Frequency: 10Hz ~ 1MHz ±(0.5%+3), 10MHz ±(0.5%+3)
- Testing temperature: -40~0'C±(8%+5), 0~400'C±(2.5%+3), 400~1000'C±(3.0%+3)
- Input impedance: About 10Mohm
- Max. clamp size: 28mm
- Powered by 1 x 9V 6F22 battery (Does not include)

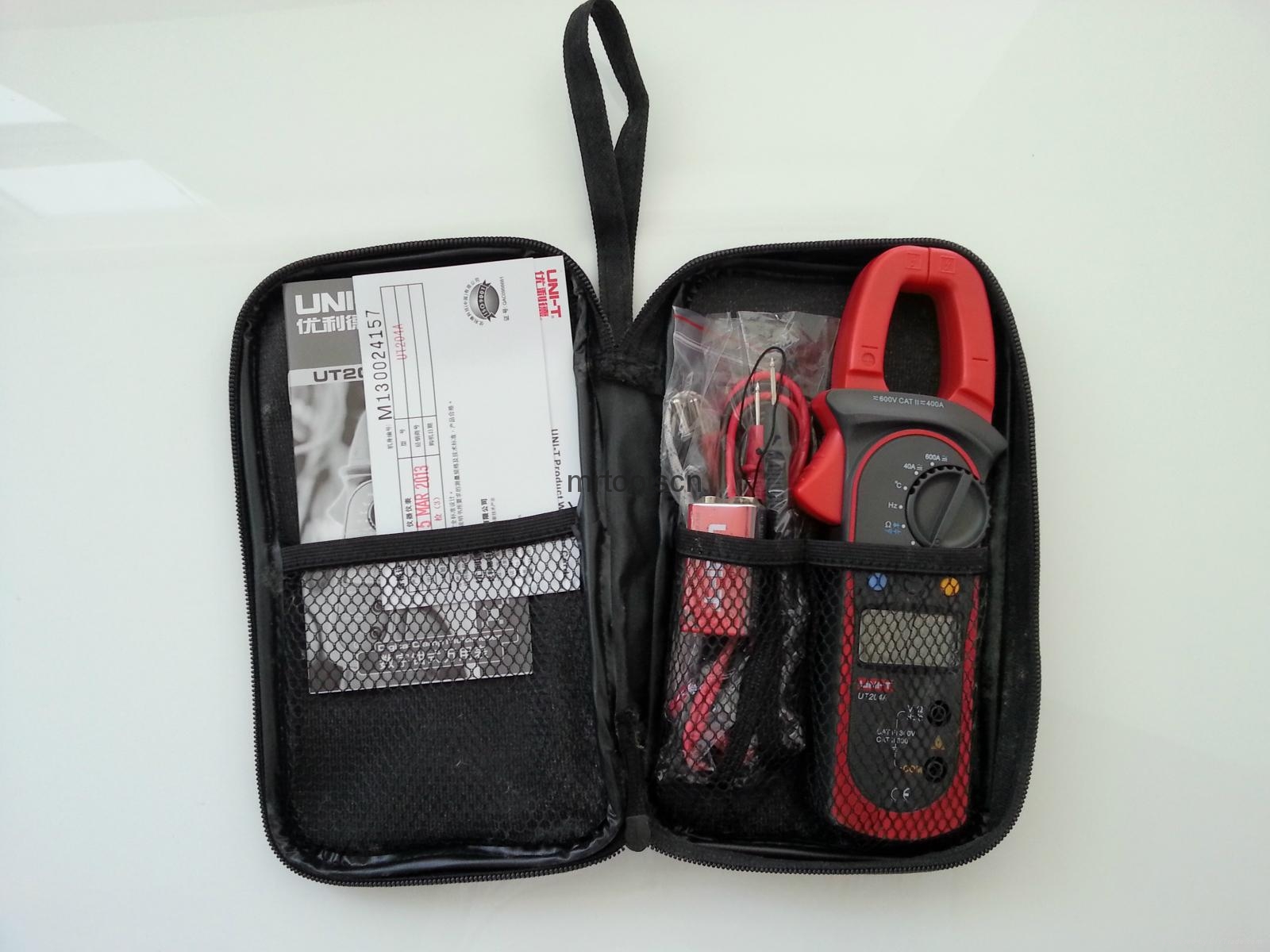

- Accessories:
- 2 x Testing leads (91cm cable)
- 1 x Temperature probe (95cm cable)
- 1 x Carrying bag
- 1 x Carrying strap
- 1 x English user manual
