| Model: | STM1325 |
|---|---|
| Brand: | STYLECNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | 4x8ft cnc router , wood cnc router , 4x8ft wood cnc |
| Price: |
US $5000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:05 Aug, 2019 |
Advantages of 4x8ft wood cnc router:
1. The machine’s body is strong, high-precision, reliable and durable.
2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3. High-performance drive motor to ensure the machine’s high speed and accuracy.
4. Perfect design, top quality accessories, to minimize the machine’s failure rate.
5. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
6. 2 motors for Y-axis, high speed.
Applications of 4x8ft wood cnc router:
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Features of 4x8ft wood cnc router:
1. Lathe bed adopts strong welded steel tube to avoid distortion.
2. Y axis adopts double motors to keep stable moving.
3. High accuracy Rack Rail travel method with high speed.
4. Imported Square Liner Rail,high accuracy,heavy burthen.
5. Advanced international technology vacuum with double cavity.
6. Humanization Design of lathe bed vacuum and easy working.
7. Intelligent protecting working fable.
Technical parameters of 4x8ft wood cnc router:
|
Number |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm |
|
2 |
Table Size |
1450×2940mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
|
6 |
Frame |
Welded Structure |
|
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
|
9 |
Max. Power Consumption |
(Without Spindle) 3.0Kw |
|
10 |
Max. Rapid Travel Rate |
33000mm/min |
|
11 |
Max. Working Speed |
25000mm/min |
|
12 |
Spindle Power |
3.0/4.5/6.0/7.0 kw |
|
13 |
Spindle Speed |
0-24000RPM |
|
14 |
Drive Motors |
Stepper System |
|
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V)) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M(U Disk) |
|
20 |
Collet |
ER20 |
|
21 |
X,Y Resolution |
<0.03mm |
|
22 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
|
23 |
Running Environment Temperature |
0 - 45 Centigrade |
|
24 |
Relative Humidity |
30% - 75% |
|
25 |
Packing Size |
3300X2100X2300mm |
|
26 |
N.W. |
1500KG |
|
27 |
G.W. |
1980KG |
|
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
| Dust Collector | ||
|
Vacuum Pump |
||
|
Rotary System |
||
|
Mist-cooling System |
||
|
850W Yaskawa/800W Panasonic Servo Motors |

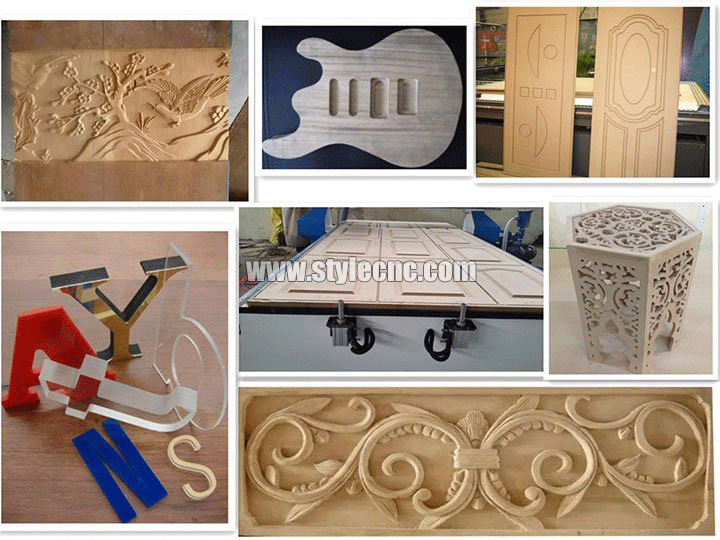

Samples of 4x8ft wood cnc router:
Package of 4x8ft wood cnc router:
The customers who like our wood cnc router often ask?
Q1. how to get the most suitable cnc router and best price?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2. Do you have the manual of cnc router?
Yes,we have
Q3. If we donot know how to use the cnc router,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal .
Q4. How about your cnc router after-sales service?
we offer you 24 hours service phone,skype or whatsapp
Q5. How about your cnc router guarantee period?
one and half year, and during the time,if you have any questions ,we will solve it for free.
