Quick Interchangeable CZ Purlin Roll Forming Machine

Model:C80-350
Brand:TECHWELL
Origin:Made In China
Category:Construction & Decoration / Shaped Building Material
Label:Steel cz purlins , c/z purlins , metal cz purlins
Price: US $32000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Wuxi Techwell Machinery Co.,Ltd

Free MemberJiang Su - China
Live Chat:Last Online:01 Aug, 2016

Product Description

Quick Interchangeable CZ Purlin Roll Forming Machine

Main Specification



  •  Material: G.i Coil or Carbon steel, Hot Rolled, Cold Rolled
  • Material Thickness:1.5-3.0mm
  • Landscape orientation adjustment range of Hole distance : 45-500mm
  • Length of purlin: >3m
  • Forming Stations: about 17 Main rollers
  • Leveling Stations: 7
  • Feeding Stations: 2
  • Main Power: 20KW
  • Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
  • Weight of machine: about 18.5 Ton
  • One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  • C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  • This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  • It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

​Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

Product Image

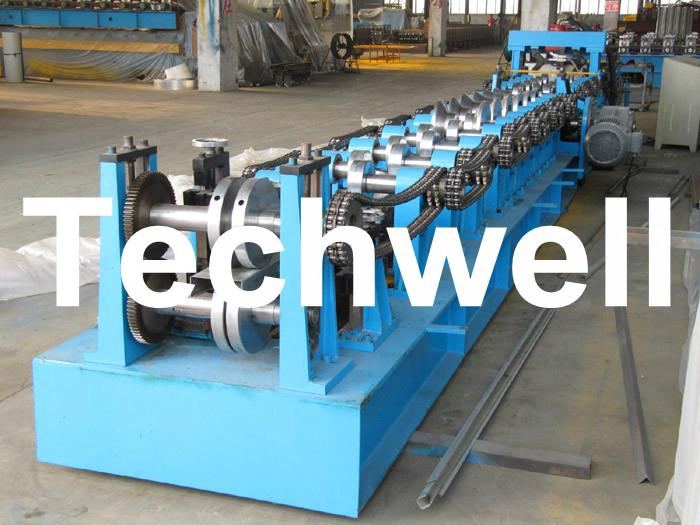

Quick Interchangeable CZ Purlin Roll Forming Machine 1
Img 1
Quick Interchangeable CZ Purlin Roll Forming Machine 2
Img 2
Quick Interchangeable CZ Purlin Roll Forming Machine 3
Img 3
Quick Interchangeable CZ Purlin Roll Forming Machine 4
Img 4
Quick Interchangeable CZ Purlin Roll Forming Machine 5
Img 5
