| Model: | NF1250C |
|---|---|
| Brand: | Nanfang Electric |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |

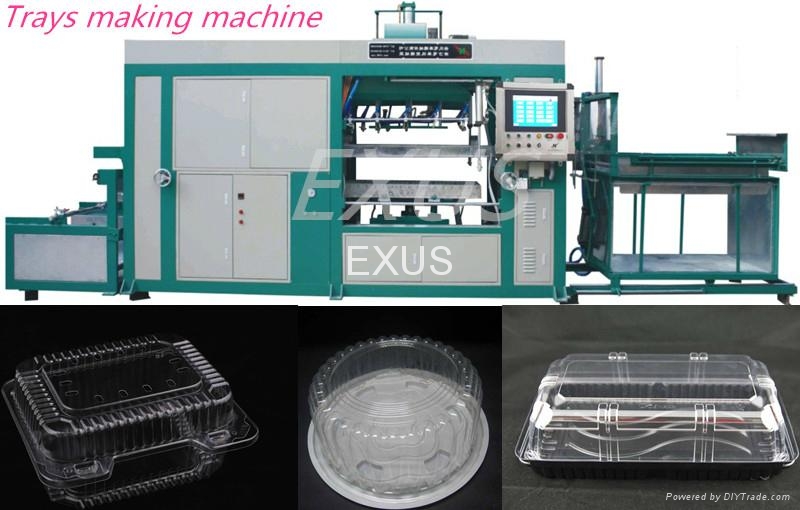

| Label: | tray making machine , cake box machine , plastic tray forming |
| Price: |
US $20000
/ unit
|
| Min. Order: | 1 unit |
| Live Chat: | Last Online:31 Aug, 2016 |
Main Parameters
|
Model No.: |
NF1250C |
|
Power Voltage: |
220V-380V-440V |
|
Forming Length: |
1250mm |
|
Forming Width: |
410-760mm |
|
Forming Height: |
230mm |
|
Heater Max Power: |
39KW |
|
Vaccuum Pump Power : |
3KW/4HP |
|
Air Pressure : |
0.8Mpa |
|
Machine Max Power: |
47KW |
|
Machine Dimension: |
7500X2600X2630MM |
|
Net Weight: |
3000kg |
|
Material Thickness: |
0.12--2.5mm |
|
Material: |
PVC,PE, PET,PC,PP,HIPS,APET,PETG,PS etc |
Auto Roll Feed, Auto Forming, Auto Cutting, Auto Stacking
Feature:
1. Roll material Auto fed.
2. Quick Heating.
3. High speed forming/moulding.
4. Perfect relaese.
5. Accurately cutting.
6. Stack neatly.
7. Steady temperature.
8. Simplify operation.
9. Security & efficiency.
10. Low maintenance cost.
11. Energy saving.
12. Remote controlable.
13. Interlligent memory.
14. Short pre-heating.
15. Material-saveing and Time-saving.
16.More than 20 years experience.
17.OEM and customized is available.
