Bench Length----------------------3140mm

Bench Width------------------------940mm

Bench Height-----------------------120-1600mm

Hydraulic Pressure ---------------70MPa

Post Max. Tension ----------------10T

Post Working Range---------------360°

Pneumatic Pressure -------------0.5-0.8MPa

Max Load----------------------------2500kg

Total Weight ------------------------1600kg

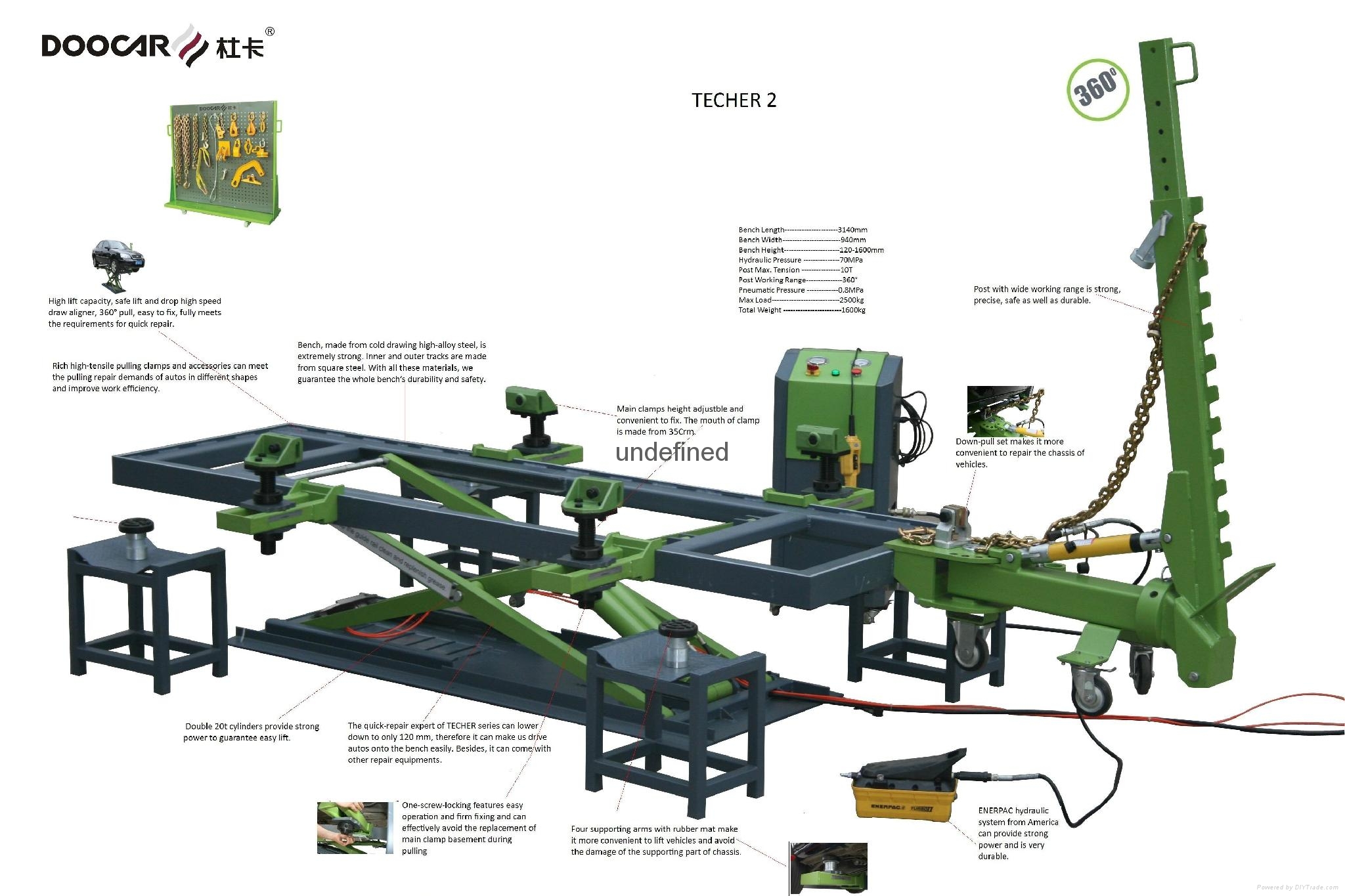

          Doocar TECHER 2 takes in the advanced technology of world-renowned companies. We also take the actual problems existing during domestic auto repairing works into sensible consideration. This equipment is aiming at Practicability, safety and accuracy. The adaptation of modular design concept as well as professional division of labor, with our great passion and exquisite workmanship, creates Doocar’s distinguished quality and technology.

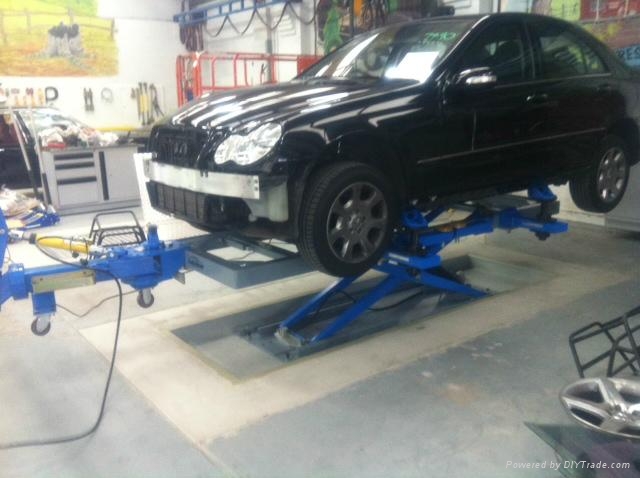

     Vertical hydraulic lifting platform can be used as a scissor lift machine, the lifting range is 120mm-1600mm in which can be adjusted, makes accidental vehicle loading and unloading more conveniently (even drive the car onto the platform directly).

       Main clamps are very convenient to fix. The mouth of clamp is made from 35Crm.

      ENERPAC hydraulic system from America can provide strong power and is very durable.

      Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.

       Mechanical streamline design tools, forge and heat treatment process, long service life and high-intensity, almost considerate all deformation correction.

     Bench, made from cold drawing high-alloy steel, is extremely strong. Inner and outer tracks are made from square steel. With all these materials, we guarantee the whole bench’s durability and safety.
