Newest 3.5” PC BY INTERNAL DOCKING IN-117S

Newest 3.5” PC BY INTERNAL DOCKING IN-117S 1

Newest 3.5” PC BY INTERNAL DOCKING IN-117S 2

Newest 3.5” PC BY INTERNAL DOCKING IN-117S 3

Newest 3.5” PC BY INTERNAL DOCKING IN-117S 4

Model:	IN-117S
Brand:	OEM
Origin:	Made In China
Category:	Computers & AV Digital / Computer Components / I/O Card
Label:	HDD docking bays , 3.0 usb docking , docking station
Price:	US $10 / pc
Min. Order:	1000 pc

Inquire Now Add to Basket

Member Information

winnertech electronics CO.LTD.

Biz MemberGuang Dong - China

Live Chat:

Last Online:05 Apr, 2024

Product Description

Model Item: IN-117S

Specification:

Description

Specification & criteria

PCB layer

2layers

PCB dimension (hub board)

35*98mm, FR4

PCB thickness

1 mm

cable length

55Cm to PC motherboard, 19pin header USB3.0 cable

Power cable

0.75mm2 gauge pure copper wire for 5V/4A power from PC motherboard

metal housing

0.6mm thickness metal

Description	Specification & criteria
HUB Chipset	USB3.0 Hub controller chipset GL3520 88pin QFN, from Genes ogic,
Interface operation	USB3.0 19pin header to PC mainboard, DC plug connected for more power
Operating voltage	5Vdc input, USB BUS POWERED
Power consumption	<500mA

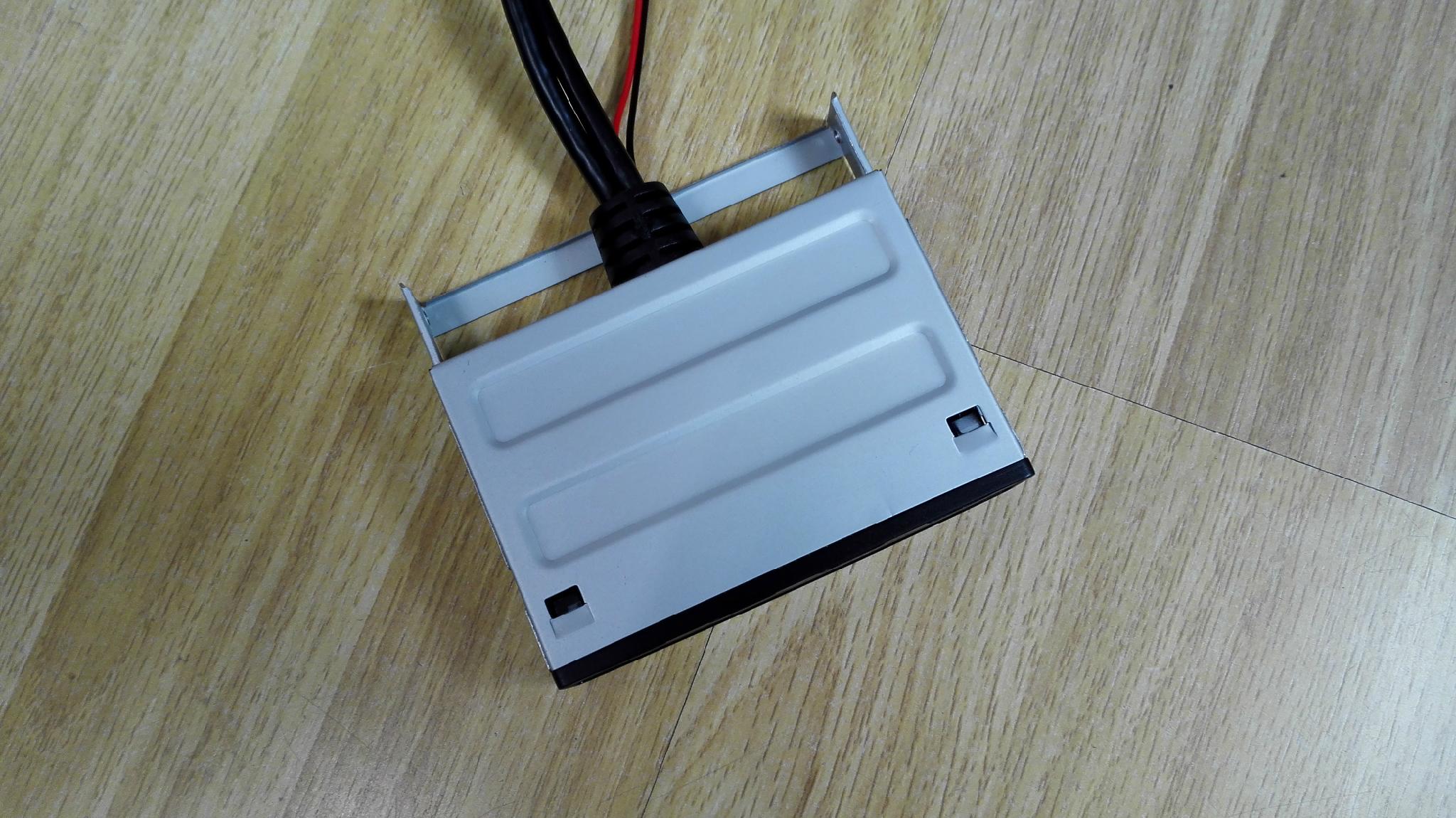

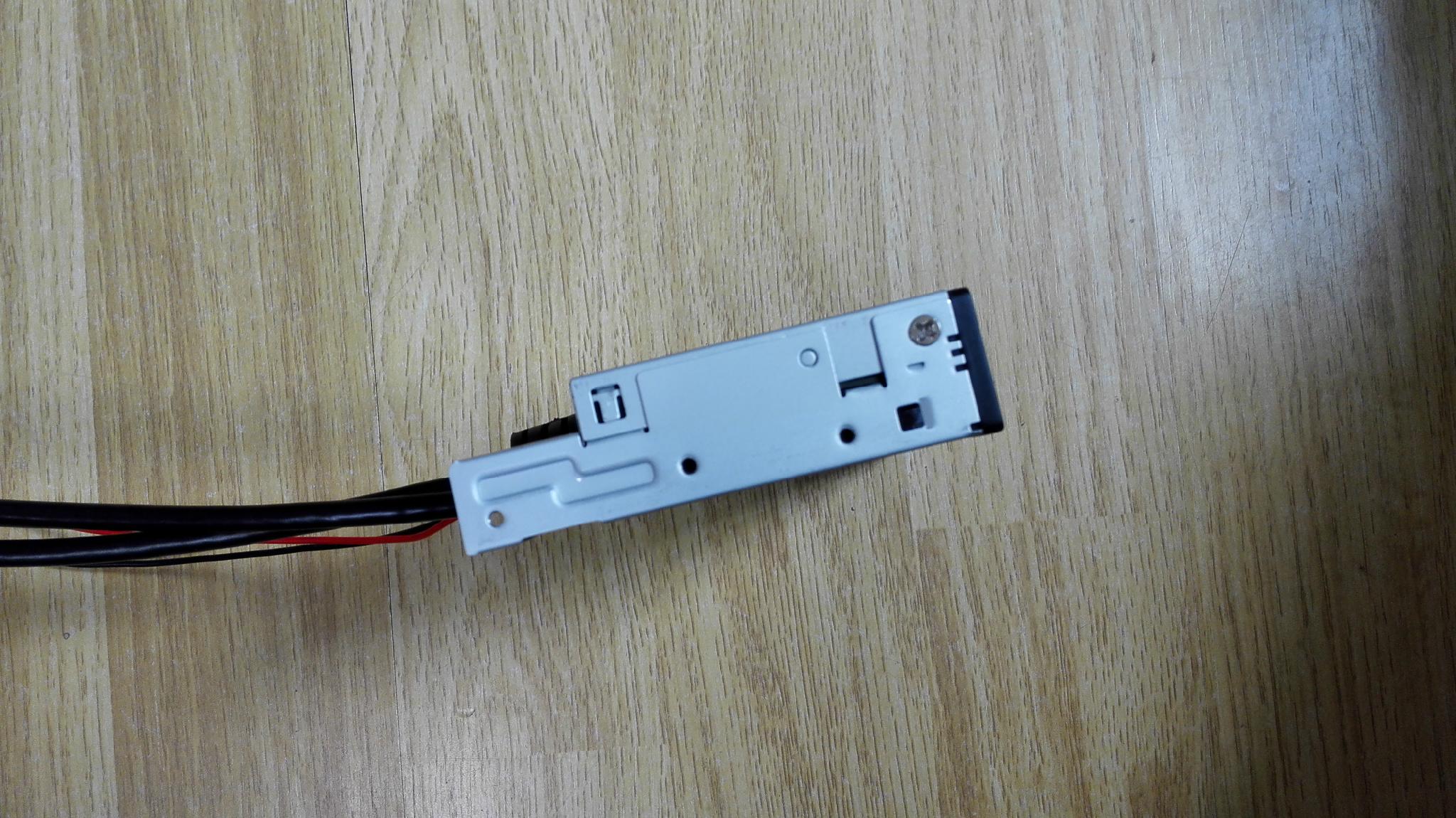

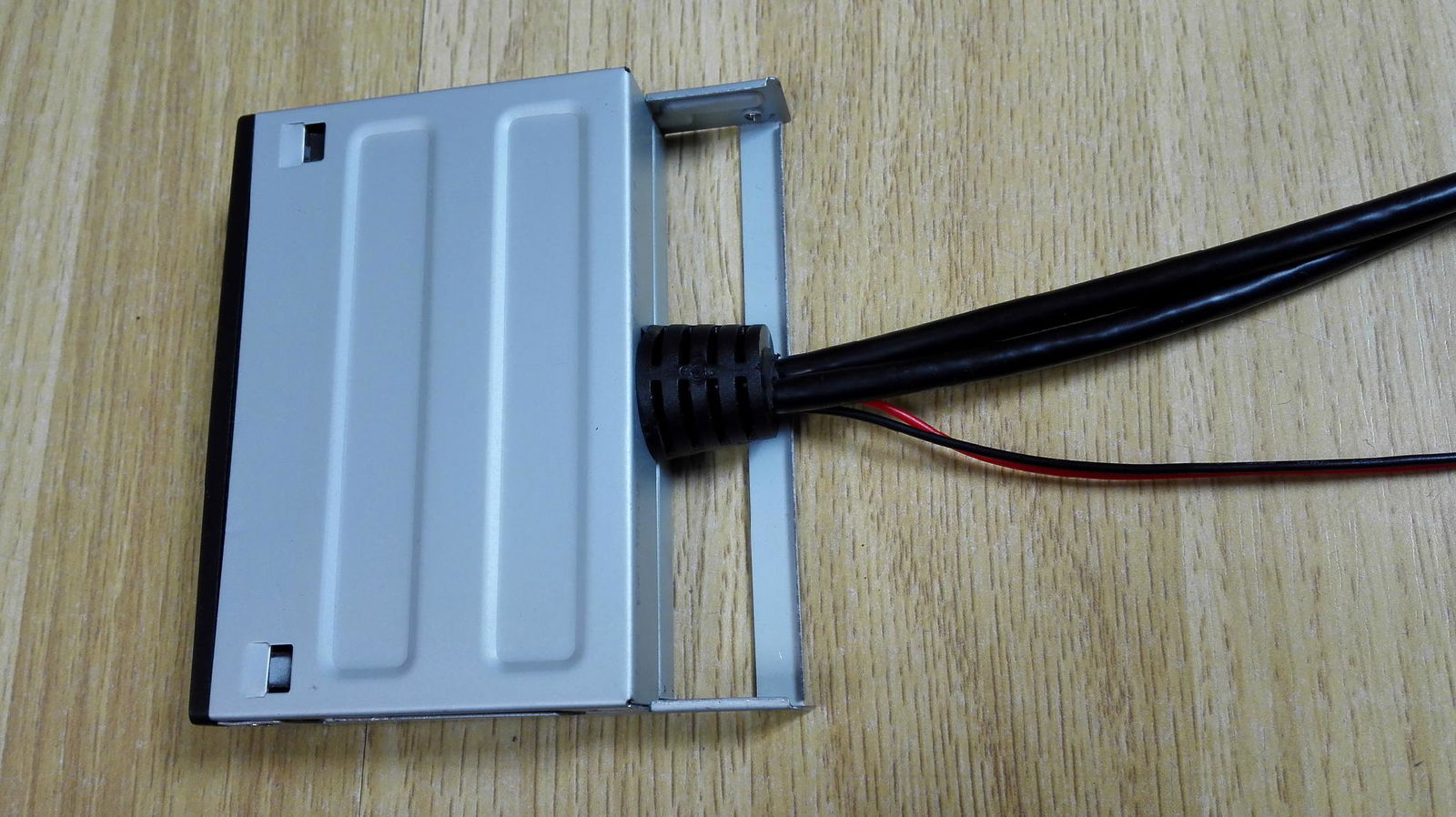

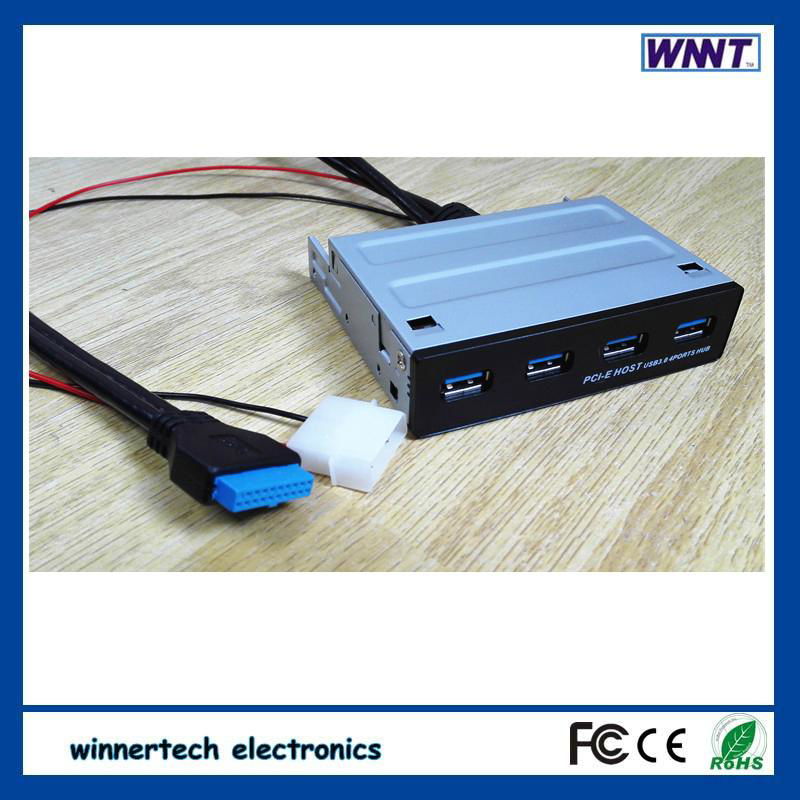

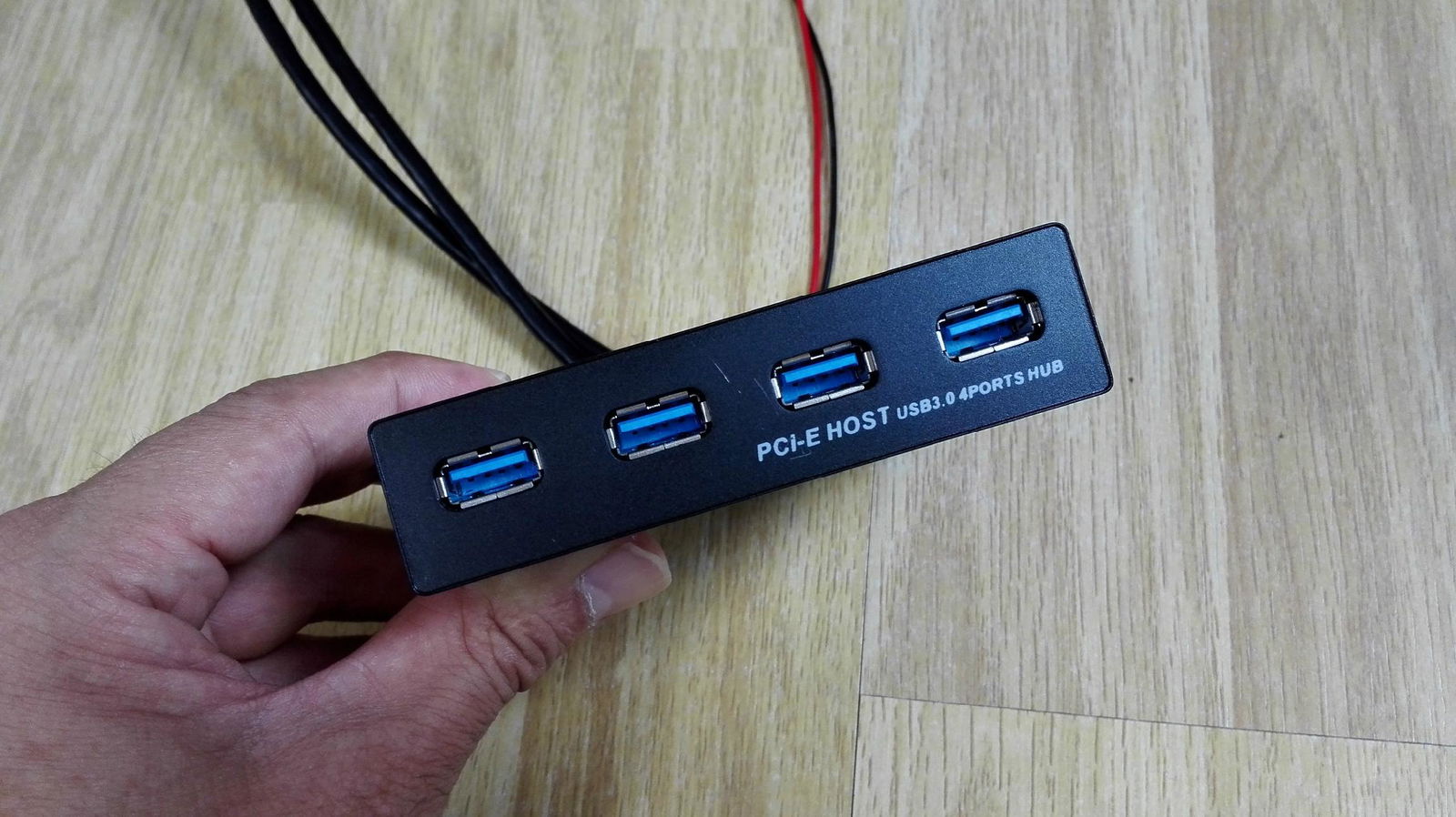

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5

Img 6
