Plane vacuum screen printer machine

Model:LC-400P
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:silk screen printer , SCREEN PRINTERS , FLAT SCREEN PRINTER
Price: -
Min. Order:1 SET
Inquire Now

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Last Online:14 Nov, 2024

Product Description

LC-400P Plane screen printer with vacuum. This machine is high quality useful printing on PVC, paper, package bag, silicone key press, electronic procducts, compute keypress.

Advantages
1. Microprocessor controls, high automation and easy operation.
2.4-digit auto counter built-in.
3. Automatic ink scraping, ink withdrawing and printing scraper lifting.
4. Printing stroke and speed is adjustable to meet different needs.
5. Automatic squeegee balance-keeping ensures equal printing pressure.
6. Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
7. High precision printing and easy adjustment.
8. With the function of vacuum sorption in

Parameter:
1. Model number---LC-400P
2. Product thickness----60mm
3. Max. Printing area----250*400 mm
4. Max work table size----300*500mm
5. Printing Speed---1000P/H
6. Machine Weight----192kg
7. Pressure----0.6Mpa
8. Voltage power----220V/ 50/60Hz 110V/50Hz

Package dimensions: 105*85*166cm

Package weight: 275kg

Model number

LC-400P

LC-500P

LC-700P

LC-6090P

LC-1200P

Product thickness

60mm

60mm

60mm

60mm

60mm

Max work table siz

300×500mm

400×600mm

500×700mm

700×1000mm

1350×1270mm

Max printing area

250×400mm

350×500mm

400×600mm

600×900mm

1200×1200mm

Printing speed

1500pcs/hr

1300 pcs/hr

900 pcs/hr

550 pcs/hr

450 pcs/hr

Air pressure

6bar

6bar

6bar

6bar

6bar

Voltage

AC110V/220V

AC110V/220V

AC110V/220V

AC380V

AC380V

Machine appearance(mm)

850×870×1750

960×900×1780

1080×9000×1680

1080×850×1280

1380 ×1550×1280

Machine weight

192kg

210kg

260kg

300kg

440kg


Product Image

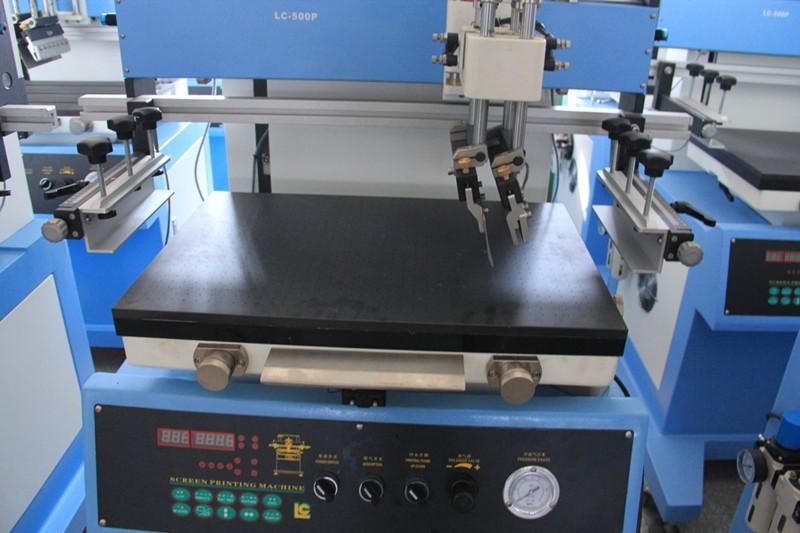

 Plane  vacuum screen printer machine  1
Img 1

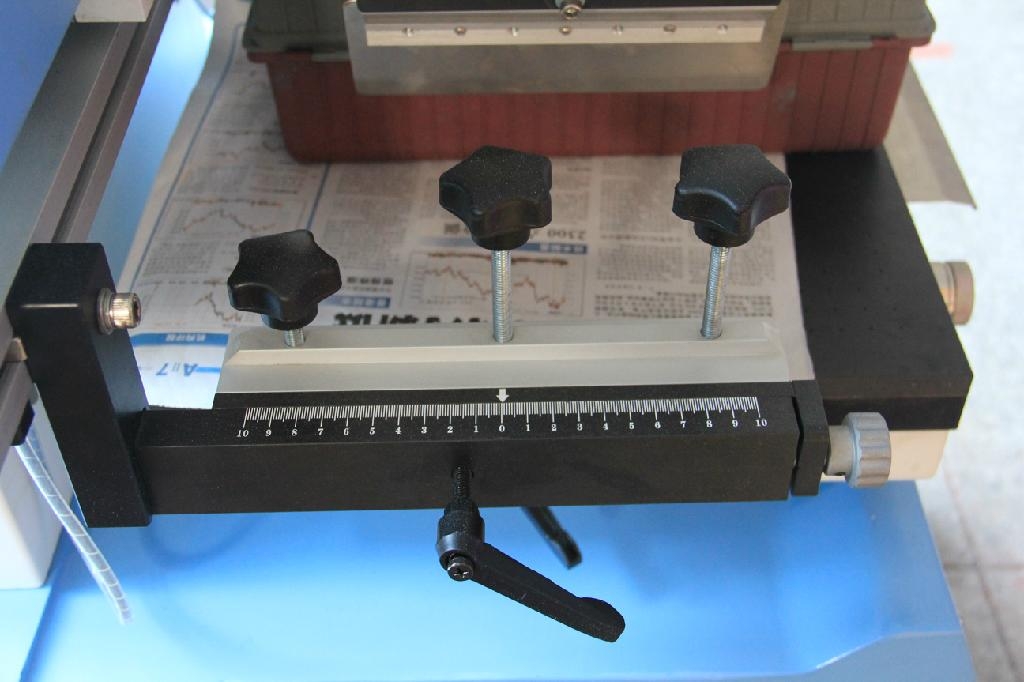

 Plane  vacuum screen printer machine  2
Img 2

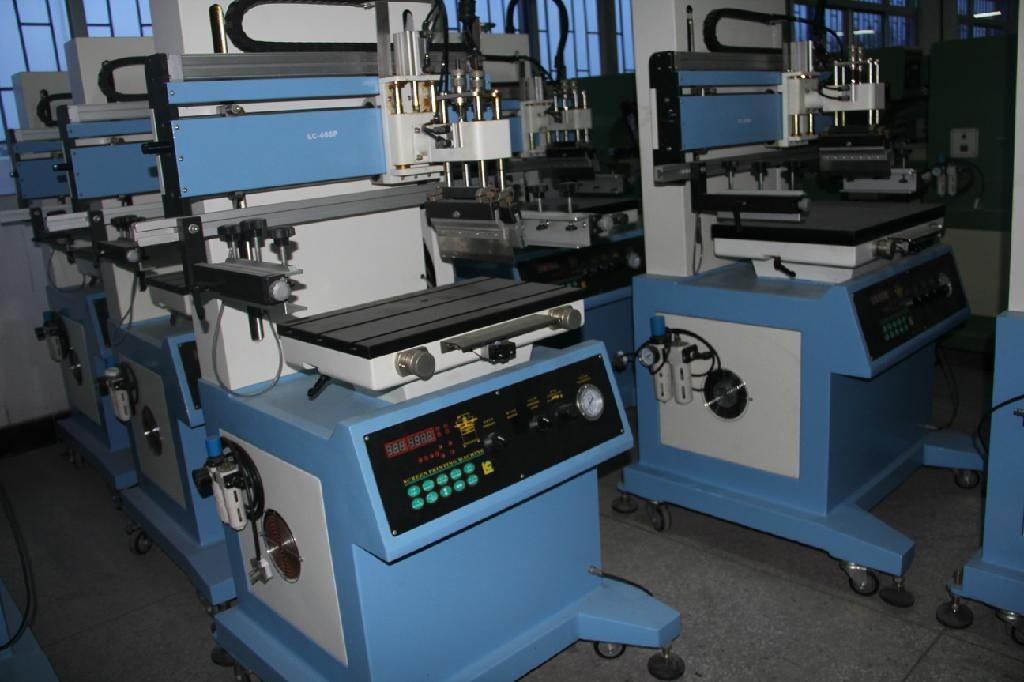

 Plane  vacuum screen printer machine  3
