High Precision NN3007 double row cylindrical roller bearing

Model:NN3007
Brand:NSK/SKF/NTN
Origin:Made In Japan
Category:Industrial Supplies / Machine Hardware / Insulation
Label:double row bearing , cylindrical roller , nn3007
Price: -
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Yepo Bearing Co,.LTD

Free MemberGuang Dong - China
Live Chat:
Last Online:30 Aug, 2017

Product Description

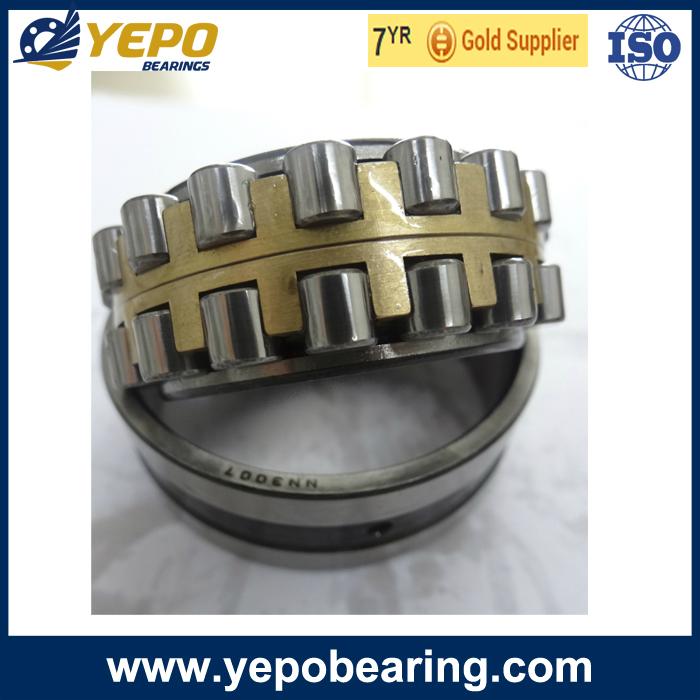

High Precision NN3007 Brass cage double row cylindrical roller bearing



Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact. these bearings are suitable for applications that involve heavy radial and impact loading.

They are also approprite for high-speed applications in that they can be machined very accurately due to their structure.

Having a separable inner ring or outer ring, these bearings can be mounted and dismounted easily.

Double row cylindrical roller bearings

  • They are come in two types:with a cylindrical bore,and with a tapered bore, as for those with a tapered bore, the specified amount of clearance can be obtained by adjusting the press in distance.
  • These bearings can accommodate high radial loads,and are often used on machine tool spindles.

Why do you choose Yepo bearing

1, 15 Years of experience in bearing industry

2, We are a manufacturer also trading company, who is able to supply all kinds of bearing to meet your request

3, High stardard quality combine with most ecomonical price system

4, The only supplier in Shenzhen who can provide 200,000pcs a month

Product overview

1, Product name

Super precision NN3007 Double row cylindrical roller bearing

2, Type

Single row cylindrical roller bearing

3, Brand name

Yepo(factory brand)/neutral/other

4, Quality standard ISO 9001:2008

5, Material

Chrome steel

6, Cage material

Brass

7, Ball material

Steel

8, Configuration

Single row

9, Presion

ISO Class 0

10, Seal

Open

11, Size

50*110*27mm

12, Weight

1.14KG

13, Operating temperature

-40 to 120 ºC

14,  Application

all industry

15, Packaging

Options:
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, Heavy items packed by wooden case
4, According to the requirement of customers'

Trade terms

1, Price Terms

EXW, FOB, CFR, CIF, CIP, DDU

2, Payment Terms

Telegraphic Transfer(T/T)/ Western Union/ LC at sight for large amount

3, Shipping Terms

1, International Express: DHL, TNT, Fedex, UPS...

2, By Air

3, By Sea

4, As your specified forwarder.



4, Delivery terms

We would be arranging order once deposit arriving, Goods will be delivered once full amount received.



Delivery time: within 7 days for regular order, within a month for large order

Specification



Bearing No. d D B Weight
Kg
NN3005 NN3005K 25 47 16 0.127
NN3006 NN3006K 30 55 19 0.198
NN3007 NN3007K 35 62 20 0.258
NN3008 NN3008K 40 68 21 0.309
NN3009 NN3009K 45 75 23 0.0407
NN3010 NN3010K 50 80 23 0.436
NN3011 NN3011K 55 90 26 0.647
NN3012 NN3012K 60 95 26 0.693
NN3013 NN3013K 65 100 26 0.741
NN3014 NN3014K 70 110 30 1.06
NN3015 NN3015K 75 115 30 1.11
NN3016 NN3016K 80 125 34 1.54
NN3017 NN3017K 85 130 34 1.63
NN3018 NN3018K 90 140 37 2.09
NN3019 NN3019K 95 145 37 2.19
NN3020 NN3020K 100 150 37 2.28
NN3021 NN3021K 105 160 41 2.88
NN3022 NN3022K 110 170 45 3.71
NN3024 NN3024K 120 180 46 4.04
NN3026 NN3026K 130 220 52 5.88
NN3028 NN3028K 140 210 53 6.34
NN3030 NN3030K 150 225 56 7.77
NN3032 NN3032K 160 240 60 9.41
NN3034 NN3034K 170 260 67 12.8
NN3036 NN3036K 180 280 74 16.8
NN3038 NN3038K 190 290 75 17.8
NN3040 NN3040K 200 310 82 22.7
NN3044 NN3044K 220 340 90 29.6
NN3048 NN3048K 240 360 92 32.7
NN3052 NN3052K 260 400 104 47.7
NN3056 NN3056K 280 420 106 51.1
NN3060 NN3060K 300 460 118 70.7
NN3064 NN3064K 320 480 121 76.6

What can Yepo supply?

1, Deep groove ball bearing
600 6000, 6200, 6300, 6400, 6800, 6900, 16000, 62200, 62300, 63000, 4200, 4300 series.

2, Angular contact ball bearing
7000, 7200, 7300, 7400, 7900, 5200, 5300, 3200, 3300, QJ, DAC series

3, Spherical ball bearing
1200, 1300, 2200, 2300 series

4, Thrust ball bearing
51100, 51200, 51300, 53200, 53300 series

5, Spherical roller bearing
21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100 series

6, Tapered roller bearing
30200, 30300, 31300, 32000, 32200, 32300, 32900, 33000, 33100, inch series

7, Cylindrical roller bearing
NU, NJ, NUP, N, NF, NNU, NN, Four row, Full complement series

8, Thrust roller bearing
29200, 29300, 29400 series

9, Needle roller bearing
NA, HK series

10, Spherical plain bearing
GE series

11, Bearing unit
UCP, UCF, UCFC, UCFL, UCC, UCT, UKP, UC, UEL, AEL series
