| Model: | 308型 |
|---|---|
| Brand: | AODE BROTHER |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Fastener & Fitting |
| Label: | 308 INSERTS , Threaded Inserts , 308 Self-tapping |
| Price: |
¥1
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:29 Oct, 2022 |
Product Description:
We are xinxiang aode brother inserts Co., Ltd. We have manufacture the threaded inserts for many years. And we have many stock in factory. And could send insert in any time. We are sure of them with high quality and comptitive price.

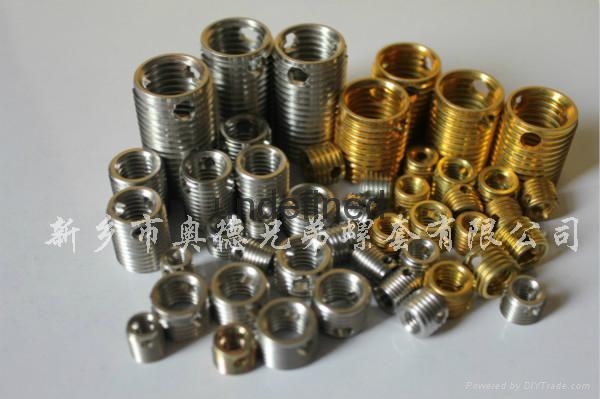

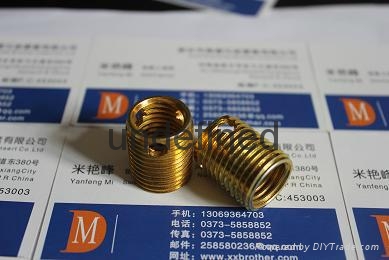

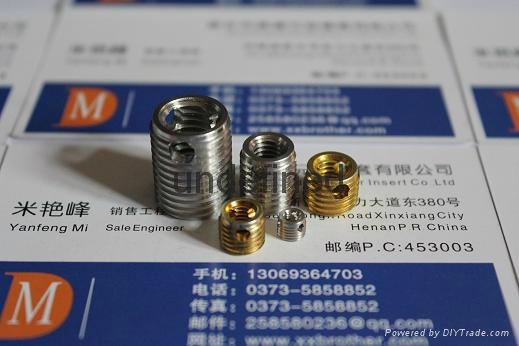

Ensat 302 type threaded insert(with cutting slot) is recommended for most application cases. In certain materials, this Ensat demonstrates a minimal inward springing action, so creating a certain screw locking effect. If this effect is not required, we recommend using Ensat 307/308 type. Ensat 307/308 type (with cutting bores) was developed for materials with difficult cutting properties. This insert has a thick wall and the cutting force is distributed over three cutting edges. The short version Ensat 307 is particularly suitable where minimal material thicknesses are involved.
Thin-walled threaded insert for applications involving special space conditions (residual wall thicknesses), and also suitable for driving using a thread tapping machine (same internal and external thread pitch). Slot version: Works Standard 303
Three-hole version: Works Standard 347/348
The Ensat is capable of withstanding high loads. When used in light alloys, for example, a degree of pull-out strength is chieved which far exceeds the yield strength of the mating screw 8.8.
Company introduction:
Xinxiang aode brothers co., LTD is a Keylocking Threaded Inserts, self-tapping screw, wire screw, non-standard threaded sleeve, precision machinery parts of high quality products and services provider. The company passed the ISO9001:2008 quality system certification.
"Because professional, so trust", xinxiang aode brothers co., LTD in "quality as a fundamental, technology as the guide, continuous innovation, keep improving" the principle of guidance, continuously improve product quality, always to provide customers with first-class products and first-class service. We would like to work with our customers hand in hand, create brilliance.
Contact details:
Marketing Maneger:Mi Yanfeng
Phone:086-0373- 13069364703
