Straight Sliding Timber & Metal Door Hardware

Model:ALA075/750
Brand:ALAFORM
Origin:Made In China
Category:Construction & Decoration / Door & Window Hardware / Door & Window Slide
Label:steel wheeled hanger , steel face fixed , Steel Track
Price: US $99 / Set
Min. Order:10 Set
Inquire Now Add to Basket

Member Information

Detail

Qingdao Alaform Folding Door Systems Co., Ltd.

Free MemberShan Dong - China
Live Chat:
点击这里给我发消息Last Online:12 Feb, 2024

Product Description

Straight Sliding

    for straight sliding wooden and metal doors weighing between 150kg and 2000kg

  • Nine systems available to cater for a variety of different door weights (see table)
  • Widely used in lighter commercial applications up to very heavy and large industrial applications
  • Can cover any width of opening, any number of doors can be used on single or multiple lines of track
  • Designed to accommodate for different building designs, doors can slide to one or both sides
  • Wicket door for easy access may be incorporated into a sliding door

Our Straight Sliding system range for wooden and metal doors is a wide range of top hung system for easy movement of anything from light commercial doors up to very heavy and large industrial application. To accommodate for different building designs, doors can slide to one or both slides and are also suitable to cover any width of opening.

Product Maximum Door Weight (nylon/steel hanger) Maximum Door Height Door Thickness Door Material Application
Straight Sliding 290 150kg/200kg 3000mm 35-48mm Wood/Metal Interior/Exterior
Straight Sliding 301 400kg/300kg 3600mm 43 - 57mm Wood/Metal Interior/Exterior
Straight Sliding 301H 450kg/360kg 4200mm 43-57mm Wood/Metal Interior/Exterior
Straight Sliding 305 700kg 4800mm 43-57mm Wood/Metal Interior/Exterior
Straight Sliding 307 2000kg 6000mm 60-70mm Wood/Metal Interior/Exterior






Product Image

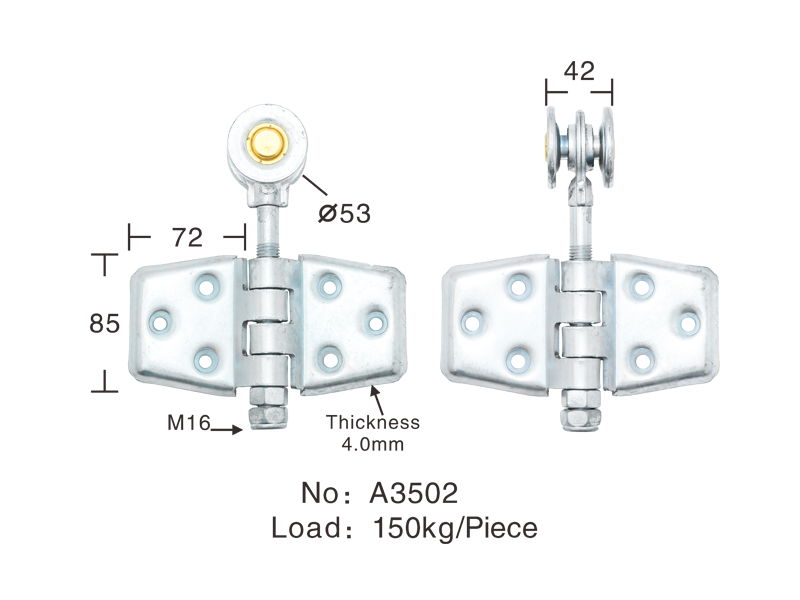

Straight Sliding Timber & Metal Door Hardware 1
Img 1

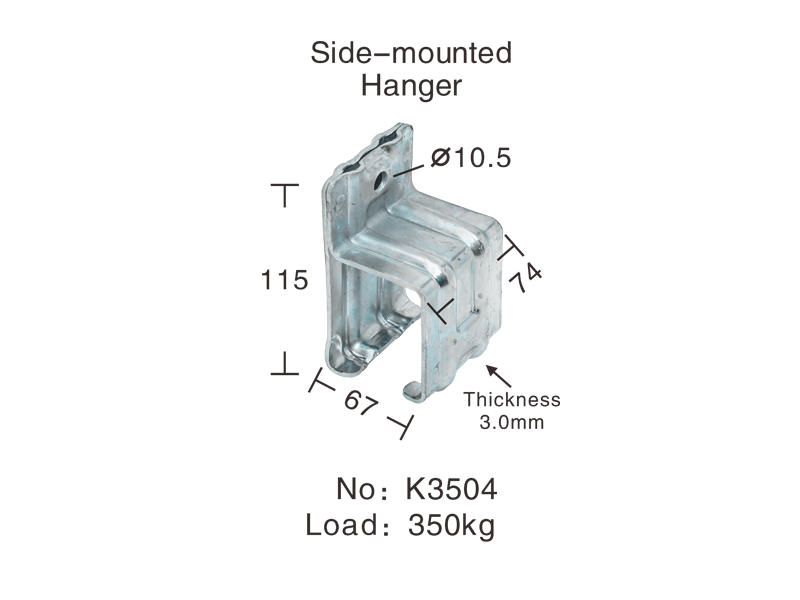

Straight Sliding Timber & Metal Door Hardware 2
Img 2
Straight Sliding Timber & Metal Door Hardware 3
Img 3
