Servo system LC-PA-400ES Semi-automatic Screen Printer

Model: LC-PA-400ES
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Semi-AUTO PRINTER , silkscreen printer , cosmetic tube printe
Price: US $7900 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Limited

Biz MemberGuang Dong - China
Live Chat:
Last Online:12 Apr, 2021

Product Description

LC-PA-400ES screen printer add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor too.

LC-PA-400ES adopted 2sets Japan Fuji servo, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position. It make sure to accurate position of products and no need to adjustment . It's suitable for bottles, cups, tubes and etc.

Here is the video show the machine working:

https://www.youtube.com/watch?v=LeqLbbZv3xM

https://www.youtube.com/watch?v=VgZC_Y4pNhQ

Suitable for precise printing substrates in Cylindrical forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc... Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 4-5 colors.

Parameter:

1. Model number: LC-PA-400ES

2. 2 set JAPAN FUJI SERVO Motor & PLC .

3. Germany LEUZE Brand Color Sensor

4. Product appearance: Round.

5. (Round)Max. Printing diameter: Φ120mm

6. (Round)Max printing arc length: L: 370mm

7. Printing Speed: 2000 PC/H

8.  Machine size:98*88*139cm

9. Package dimensions:103*100*148cm

10. Machine/ Weight: 270KG

11.  Package weight:300KG

12. Air pressure: 0.5Mpa

13. Voltage power:220V/ 50HZ

Advantages:

1. Round printing function (taper section)

2. Automaticoil scrabbing, oil return and lifting table

3. Adujustability of routs and speeds

4. Self-poise scraper to balance printing pressure

5. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)

6. High precision and easy & quick adjustability

Testing Please provide:

1. 110V or 220V power supply.

2. 5-7 bar compress air.

3. Esposal screen plate 1 pcs.

4. A jig 1pcs.

5. 5-10 pcs product samples.


Product Image

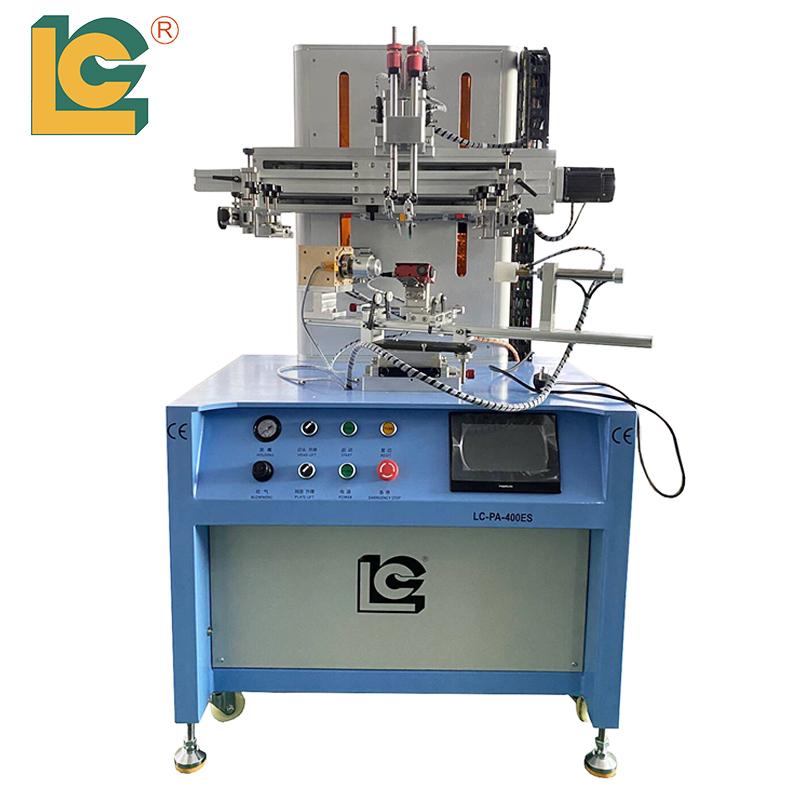

 Servo system LC-PA-400ES Semi-automatic Screen Printer  1
Img 1

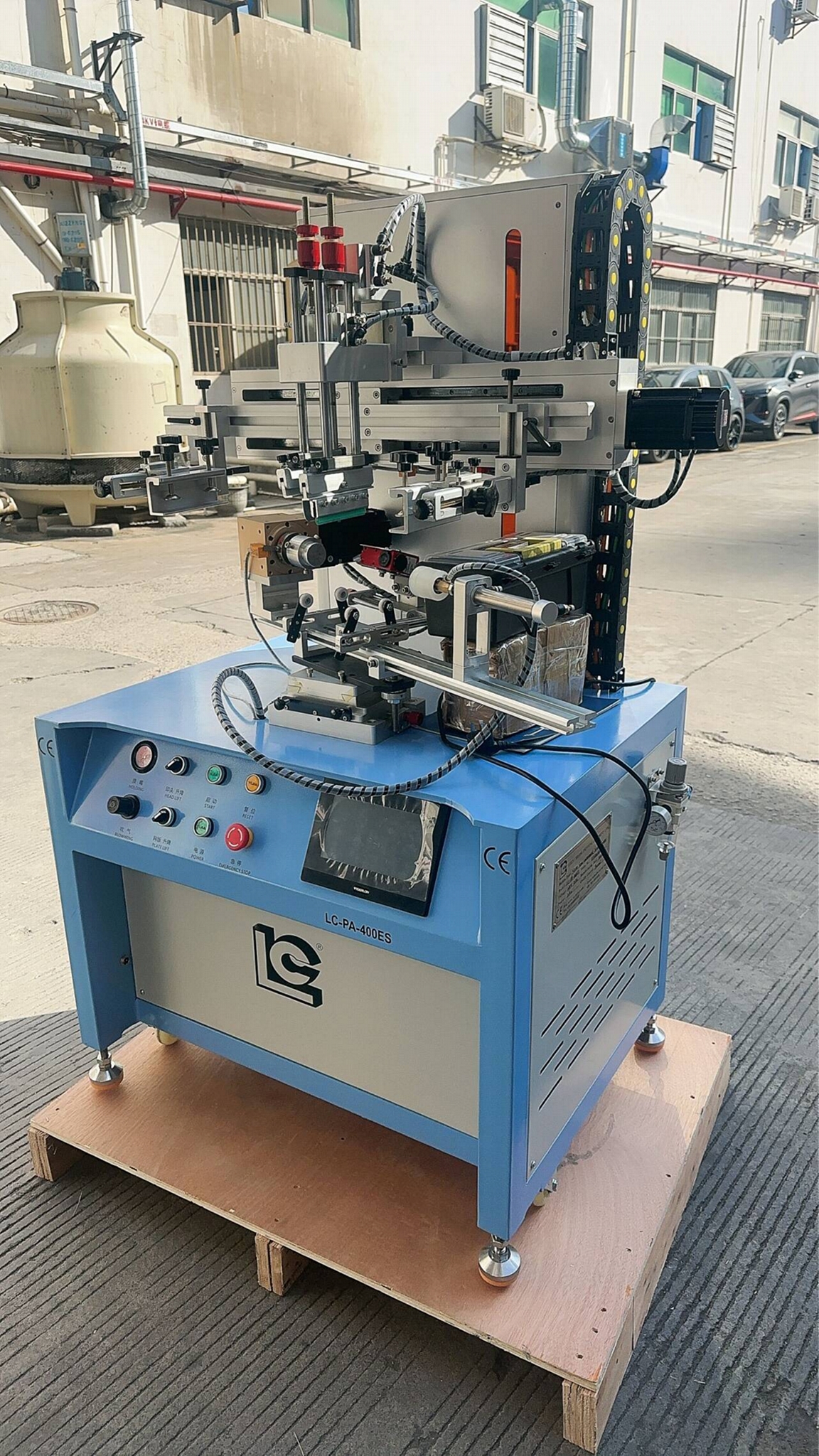

 Servo system LC-PA-400ES Semi-automatic Screen Printer  2
Img 2

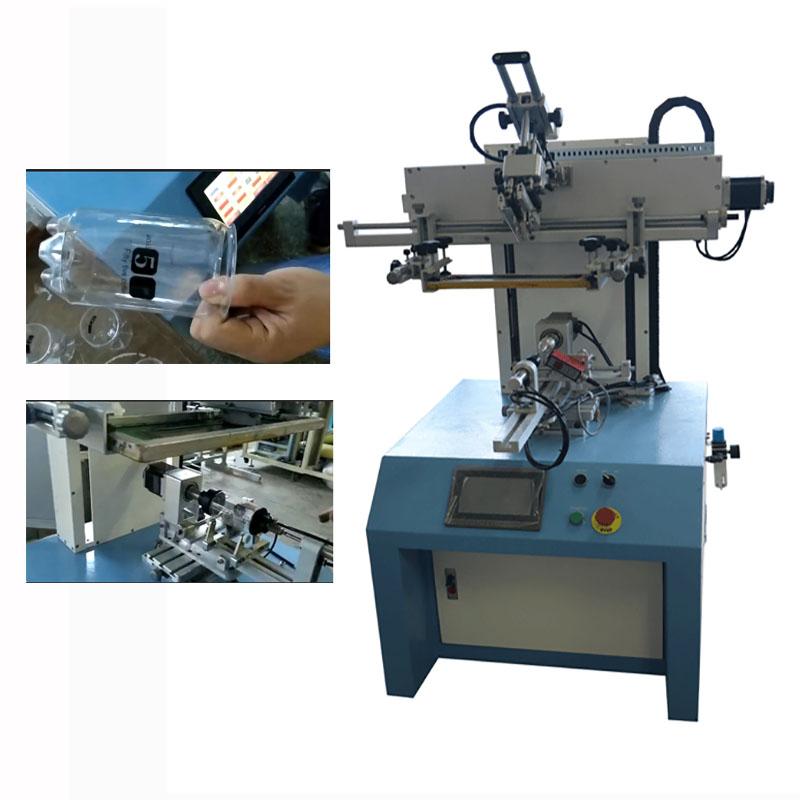

 Servo system LC-PA-400ES Semi-automatic Screen Printer  3
Img 3

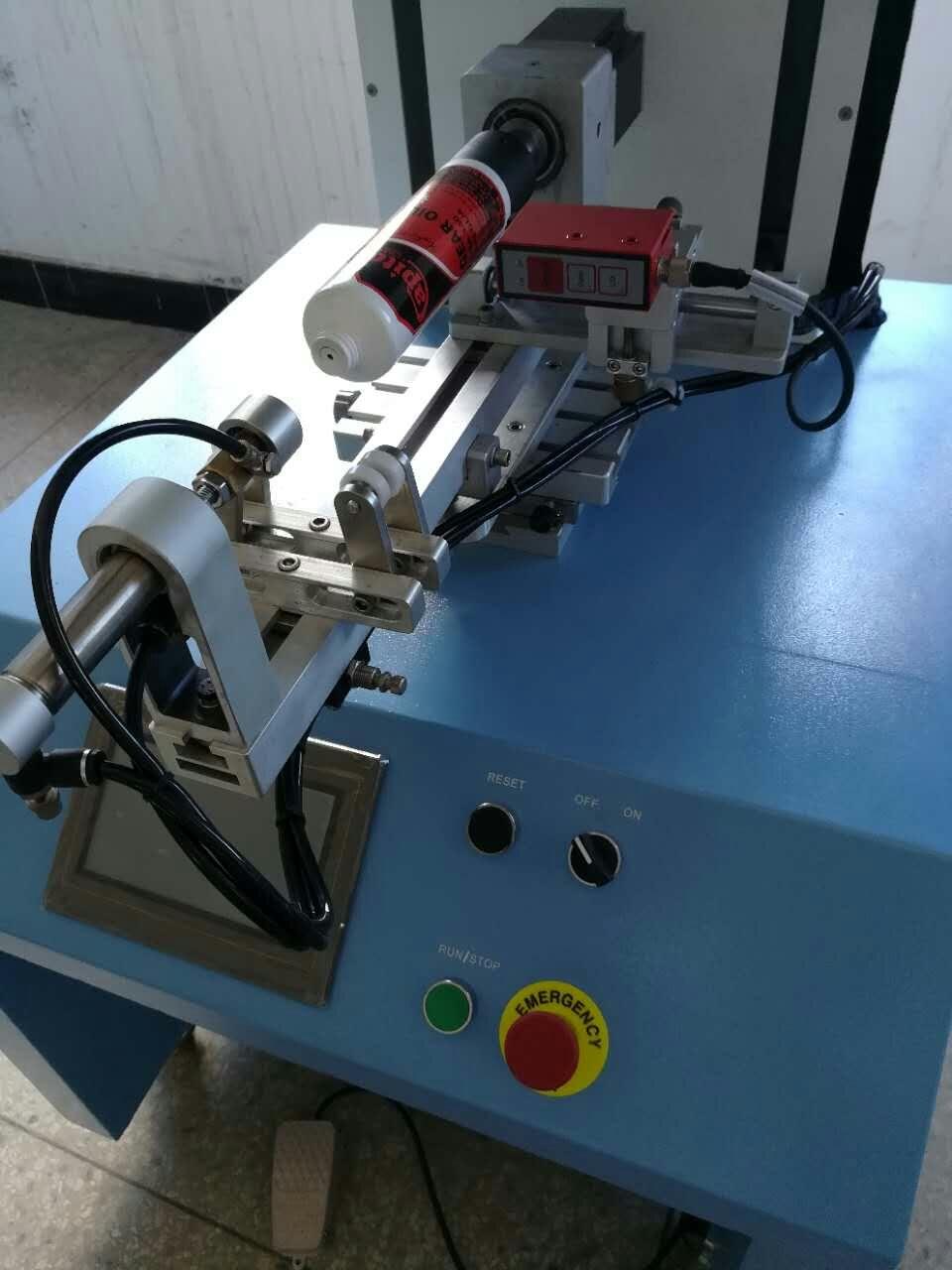

 Servo system LC-PA-400ES Semi-automatic Screen Printer  4
Img 4

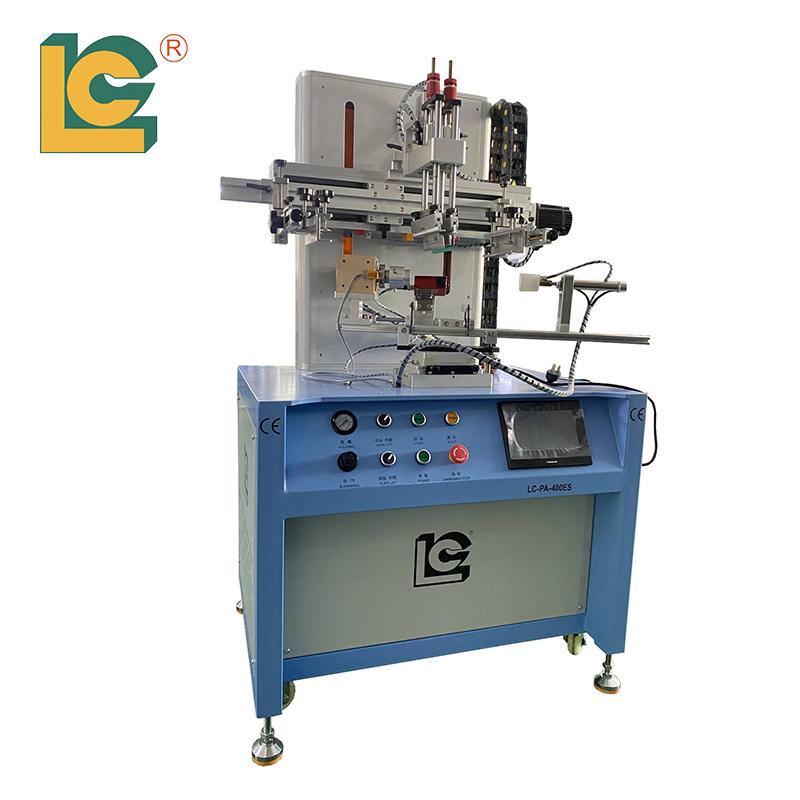

 Servo system LC-PA-400ES Semi-automatic Screen Printer  5
Img 5

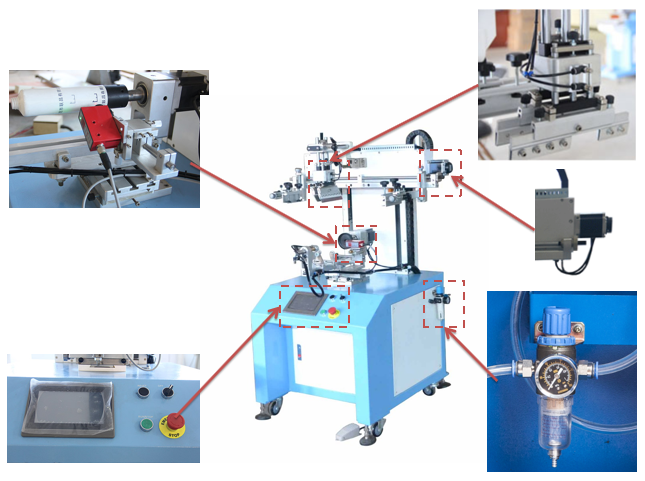

 Servo system LC-PA-400ES Semi-automatic Screen Printer  6
Img 6

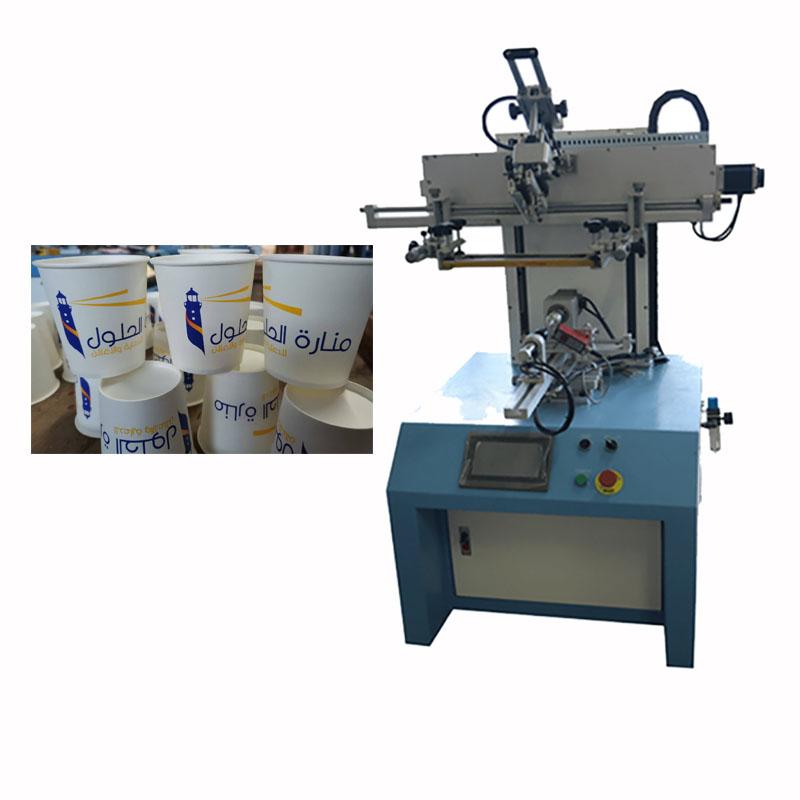

 Servo system LC-PA-400ES Semi-automatic Screen Printer  7
