| Model: | S14P420.2 |
|---|---|
| Brand: | SSR |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Packing machine , vertical pack system , Multihead weigher |
| Price: |
US $23500
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:25 Apr, 2019 |

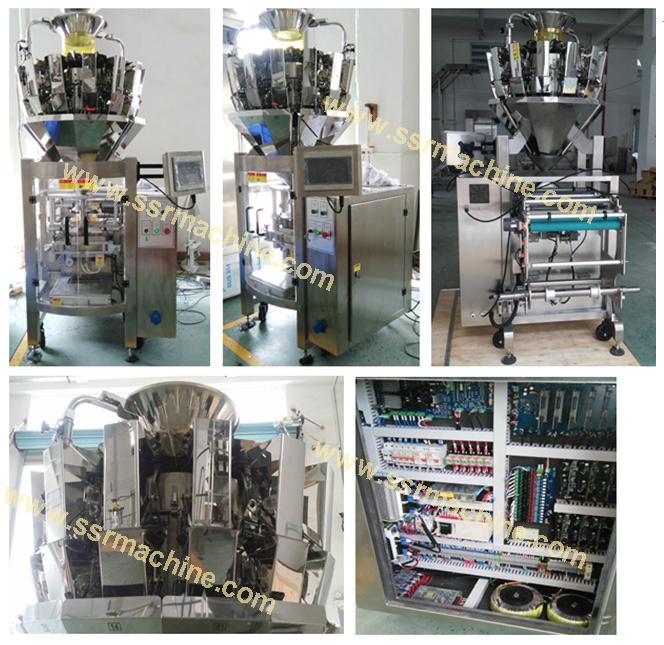

Multi-head Combined Weighing Automatic Vertical Packing Machine
S14P420 system
Main characteristics:
1. Design of the integral packing machine: it allows an integrate operation of the PLC controlling weighing scale and the packing machine which increase the packing speed.
2. High precision, little material weighing: choosing the best combination, a combination of the high precision and high speed.
3. Ease and high speed operation: PLC controlling, touch screen monitor, easy to operate and maintain.
4. Simple space: the design of the specific integral weighing packing machine, has vastly reduce the height of the machine, and has save much space.
5. Accurate positioning: the orientation of the carrying film of is more accurate with the control of the servo motor; the orientation of the trademark is more accurate with the detection of the electric eye.
6. Rapid return on investment: Largely save the cost of material and labor force.
|
Display |
7 inch touch screen |
|
Head Scale |
14Heads |
|
Scale bucket Volume |
0.5 Or 0.8 L |
|
Hopper material |
304 stainless steel |
|
Single Weingh Range |
25~500g |
|
Max.weight |
1000g |
|
Weigh accuracy |
±0.5~2g |
|
Packing Speed |
15-100bags/min (depends on the materials) |
|
Max Film Width |
420mm |
|
Bag Size |
50~190mm Wide, 50~230mm Long |
|
Film Roll |
Laminated film, like OPP/CPP, OPP/PE, MST/PE, PET/PE, etc. |
|
Core Inner: Φ 75mm ; Outer diameter less than 400mm; |
|
|
Film Thickness |
0.04-0.08mm |
|
Film Pulley driven |
By Servo |
|
End Jaws driven |
By Servo |
|
Air Consumption |
0.6 Mpa, 0.3m3/min |
|
Voltage |
AC220V |
|
Electric Current |
50Hz / 60Hz |
|
Total Power |
4 KW |
|
Weight |
N.W.: 650kgs; G.W.: 800KGS |
