Description

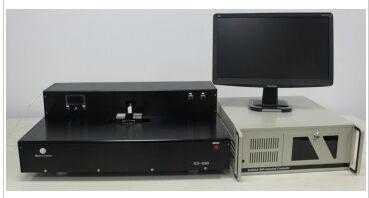

• SCS-4000 FBT System is a custom-made tapering station which integrates the technology of optics, electronics, mechanics and computer. Except for making standard singlemode and multimode fiber components on this station, it can be improved to be PM fiber coupler station, LMA fiber combiner station, SM/MM fiber tapering station.
• This tapering system is widely used fiber laser developing, fiber sensor and biomedical and Micro-Laser Research and Telecommunication.

Software Features

• Parameters storage and printing in format
• Expand to torch head scanning range in order to satisfy this tapering length
• Drawing speed setting according to tapering length
• Control this flowing of oxygen and hydrogen according to tapering length
• Smaller Splitting ratio exactly collecting

Hardware Features

• Designing hybrid Torch head with inner oxygen input and outer hydrogen input,in order to assure heating stably and increase heating temperature

• Custom-made fiber holder for fiber tightly holding

• Flow meter chosen on fiber diameter used

• Detector chosen on working wavelength used

• Torch head size and fixture made on tapering requirements

• Platform Size designing on tapering length, in order to assure max heating Length

• Optional: CCD imaging collecting system integrated , which is for assisting in inspecting the fiber axis alignment or fiber tapering process
