Solar Junction Box IP67 (PV-A3S)

Model:PV-A3S
Brand:FWD
Origin:Made In China
Category:Metallurgy , Mining & Energy / New Energy / Solar Energy
Label:solar panel , solar junction box , junction box
Price: US $3.9 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Wuxi city Min Yue metal products Co., Ltd.

Free MemberJiang Su - China
Live Chat:Last Online:15 Jun, 2016

View all products. (13)

Product Description

Basic technical data

Certificate TUV No. R50306225
Rated Voltage 1000V DC
Rated Current 11A
Temperature Range -40ºC~+90ºC
Safety Class ClassII
Protection Degree IP65
Wire Size Range 4 mm²/2.5 mm²
Flame Resistance UL94-V0/5VA
Waterproofing Structure Seal
Connection Method Soldering
Insulation Material PPO, black
Contact Material Copper,Tin plated
Overall Dimension 81×100×16mm
No. Of diode 2
Diode type 12SQ045
Optional connector MC4 connector

Payment Terms:Paypal/TT/LC/DP/DA

Product Image

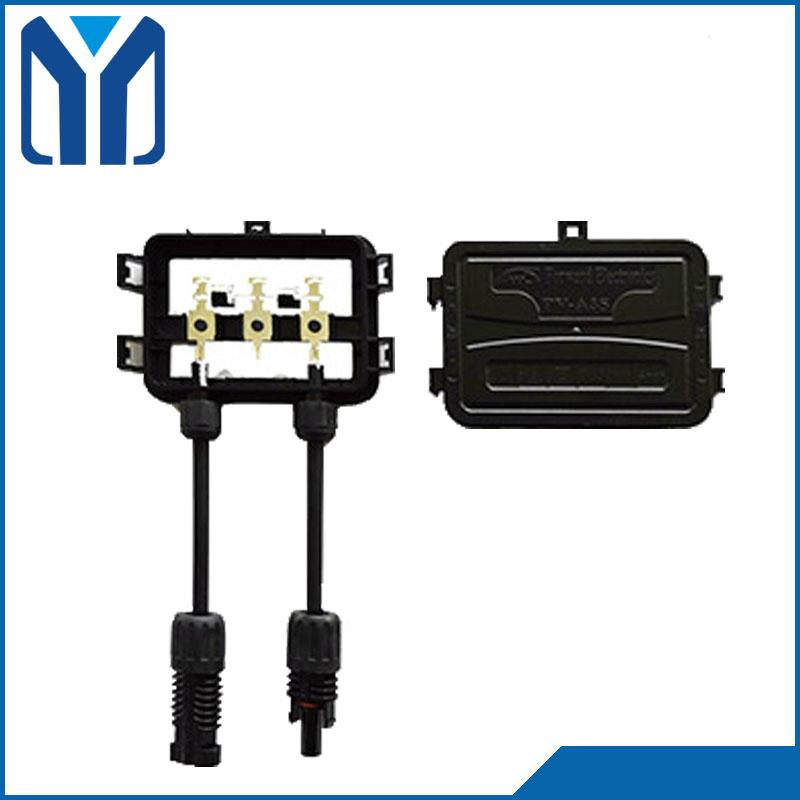

Solar Junction Box IP67 (PV-A3S) 1
Img 1
Solar Junction Box IP67 (PV-A3S) 2
Img 2
