raw material: PVC or PPR, PP

output: 1000 000pcs

steel: DIN1.2738 or S136

injection gate: cold runner, edge gate

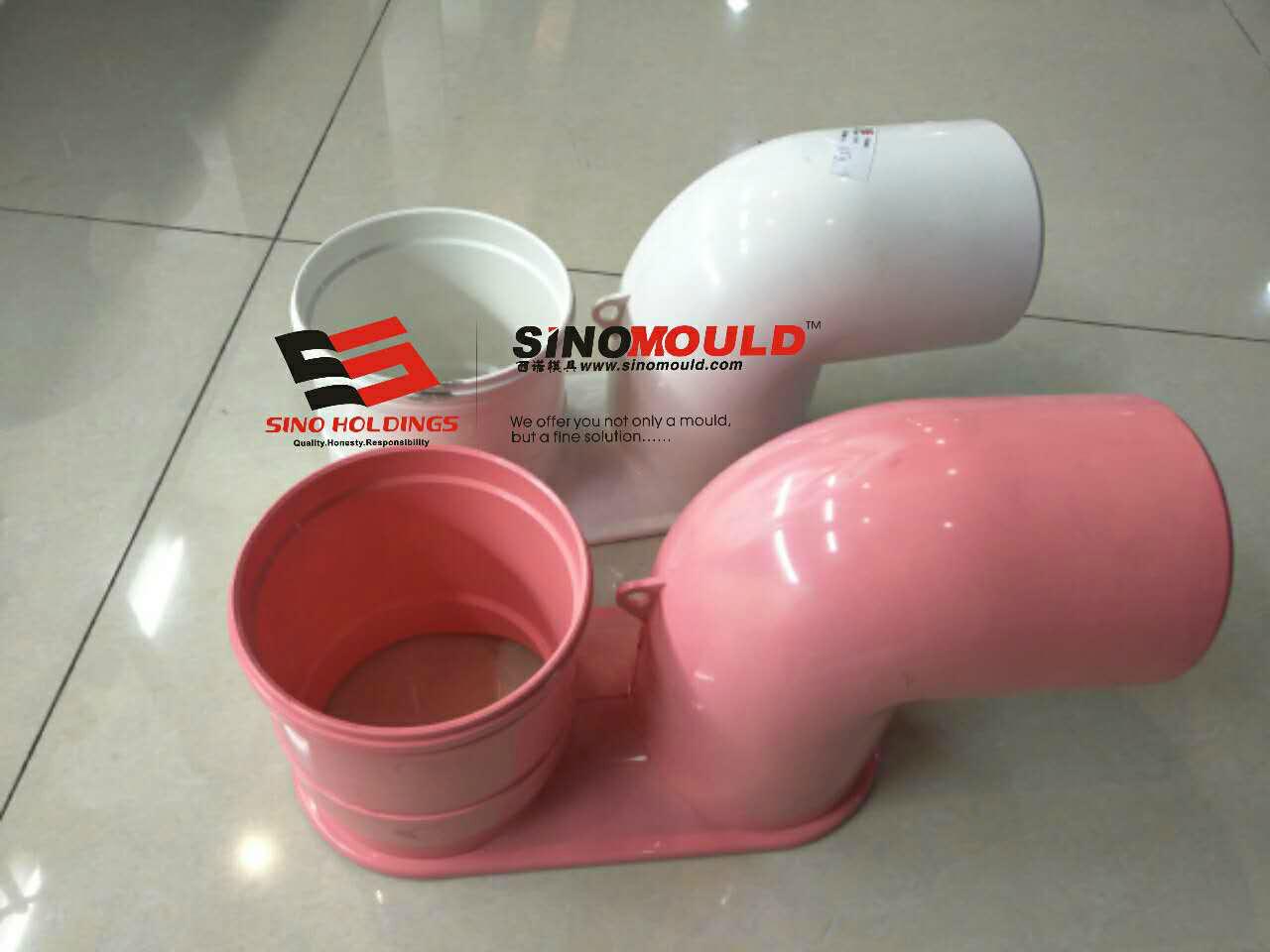

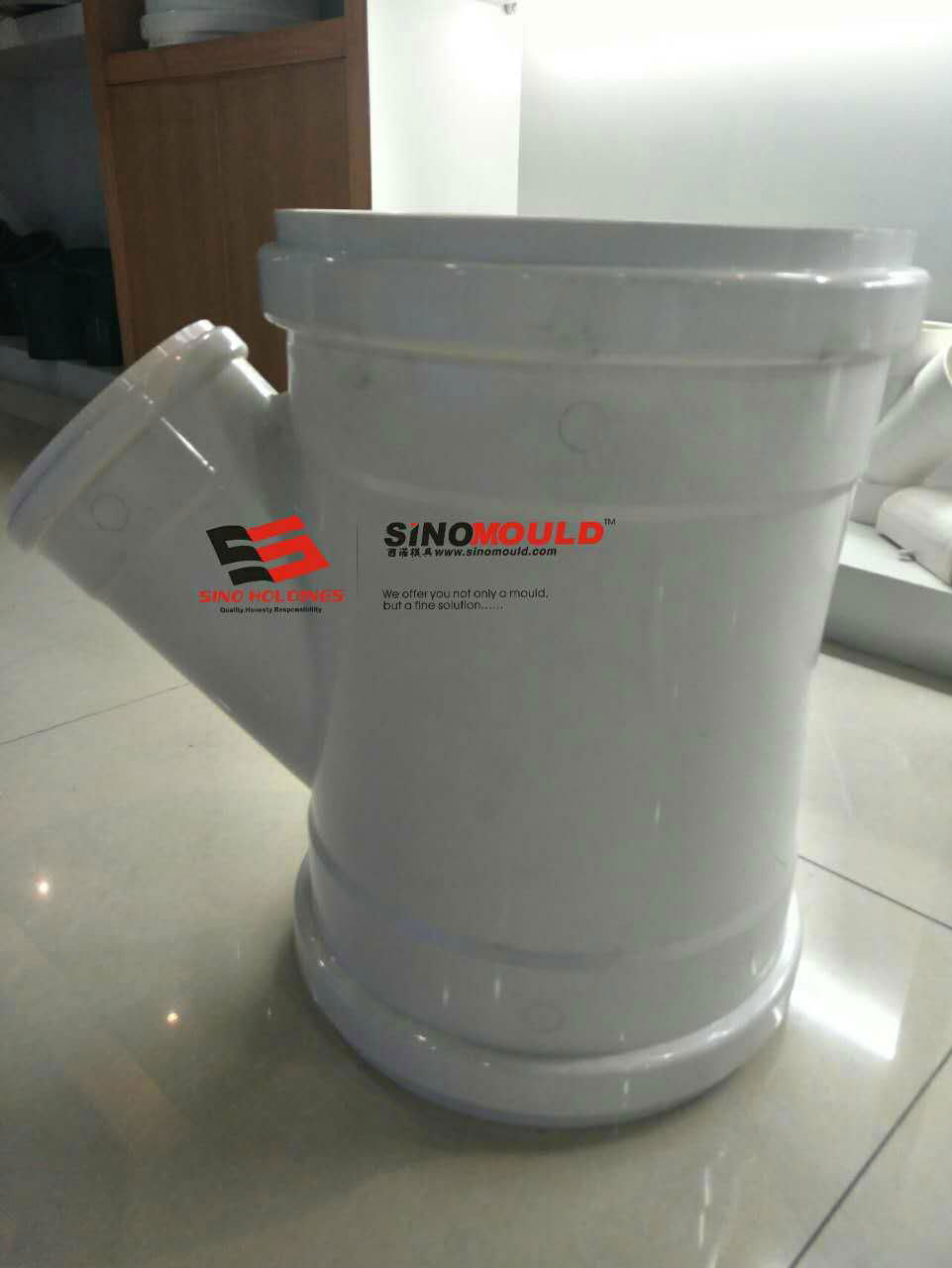

For PVC pipe fitting mould making, usually, our mould structures as following:

1. Collapsible core structure
2. Curve structure
3. Unscrew structure
4. Normal mechanical or hydraulic side system

For steel, usually we choose DIN1.2738 or S136 for core and cavity, because the characteristics of PVC, we choose cold runner with submarine gate or edge gate.

For example, for TEE PVC R1/2 screw fitting mould, mould information as below:

Mould cavity: 4 cavities

Cycle time: 32s

Steel: DIN1.2738

Mould life: 1.5 million

Mould ejection system: motor unscrewing ejection

Mould dimension: 849*649*605

Welcome to contact me if you are interested in PVC pipe fitting mould making, Sino will offer best solution for PVC pipe fitting molding project.
