    The control system for surface mounted BOP (blowout preventer) stacks is special equipment, which is used to control BOP, hydraulic chock, kill system and diverter equipment, and indispensable equipment for blowout preventer during drilling or workover in petroleum and natural gas industry.

The function of the control system for surface mounted BOP stacks is preparing and prestoring-enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the control system will renew the hydraulic oil automatically, to keep the pressure in a certain high value.

Product Features：

1. Remote control distance can reach 200 meters;
2. The control delay time is less than 0.5 second;
3. non-affected by environment.
4. Whether the BOP is open or close station can be shown real-time.
5. Operate conveniently and reliably.
6. Maintain conveniently.


Product Model and parameters：

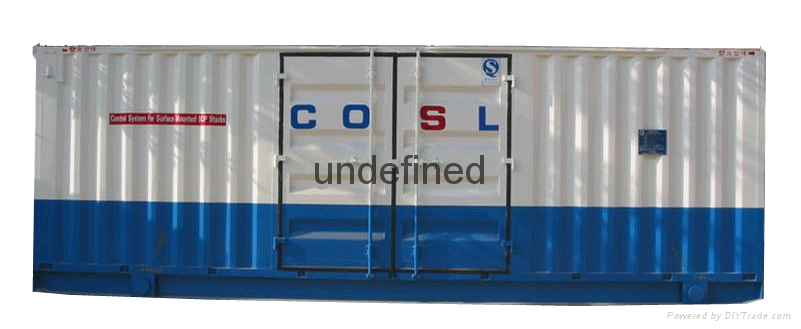

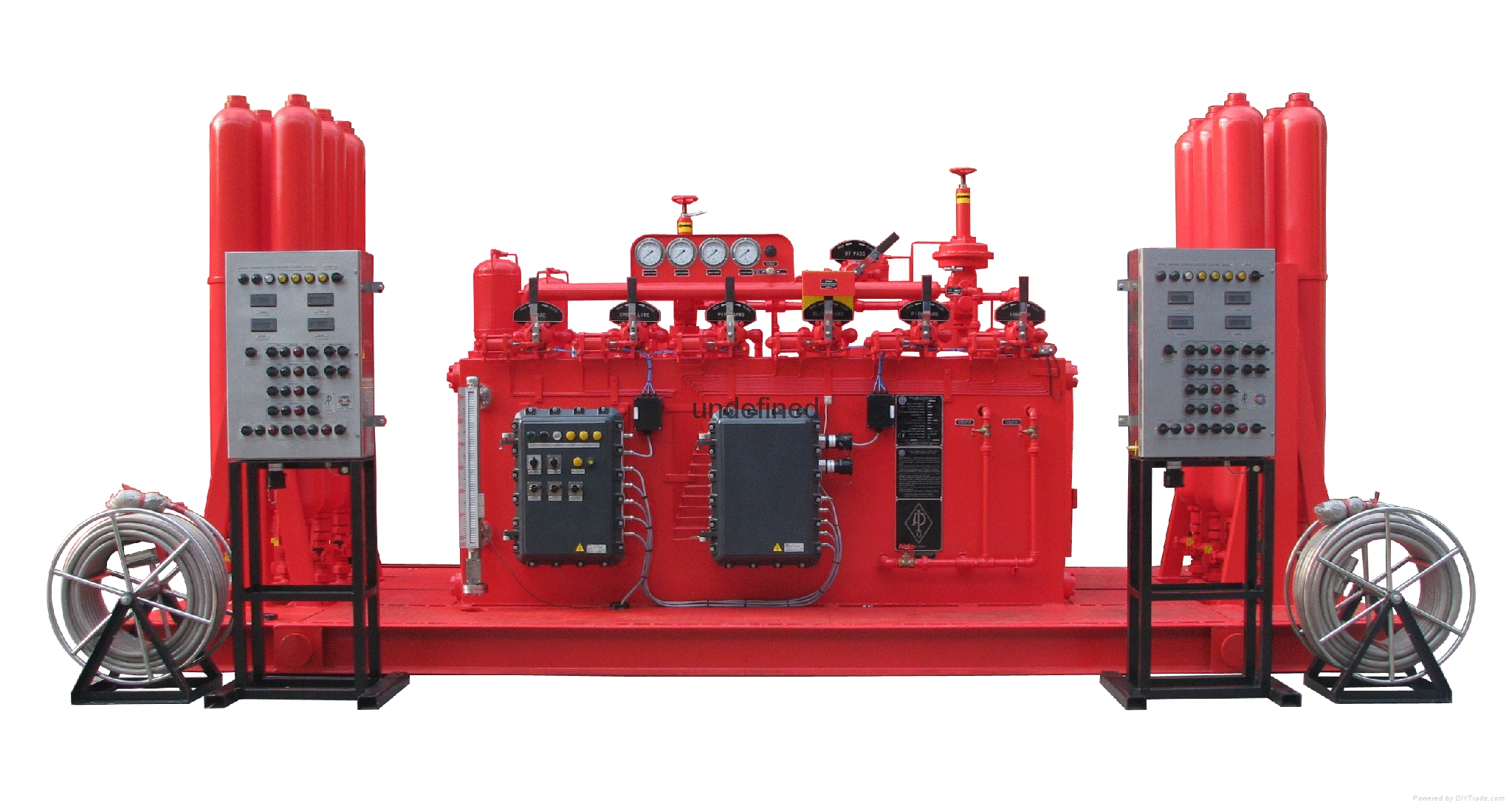

FKDQ720-6 Control System For Surface Mounted BOP Stacks

Rated pressure: 21MPa
Manifold output pressure: 0~14MPa
Nitrogen pressure: 7±0.7MPa
Range of manual pressure regulator：0~14 MPa
Range of manual pneumatic regulator：0~18 MPa
Air supply pressure: 0.52~0.8MPa
Power supply: 380±19V/50HZ
Ambient temperature: -13~+50
Electric pump power: 42L/M
Pneumatic pump power: 175×2 Ml/ punch
Motor Power: 18.5KW
Size：5460×2230×2360MM
